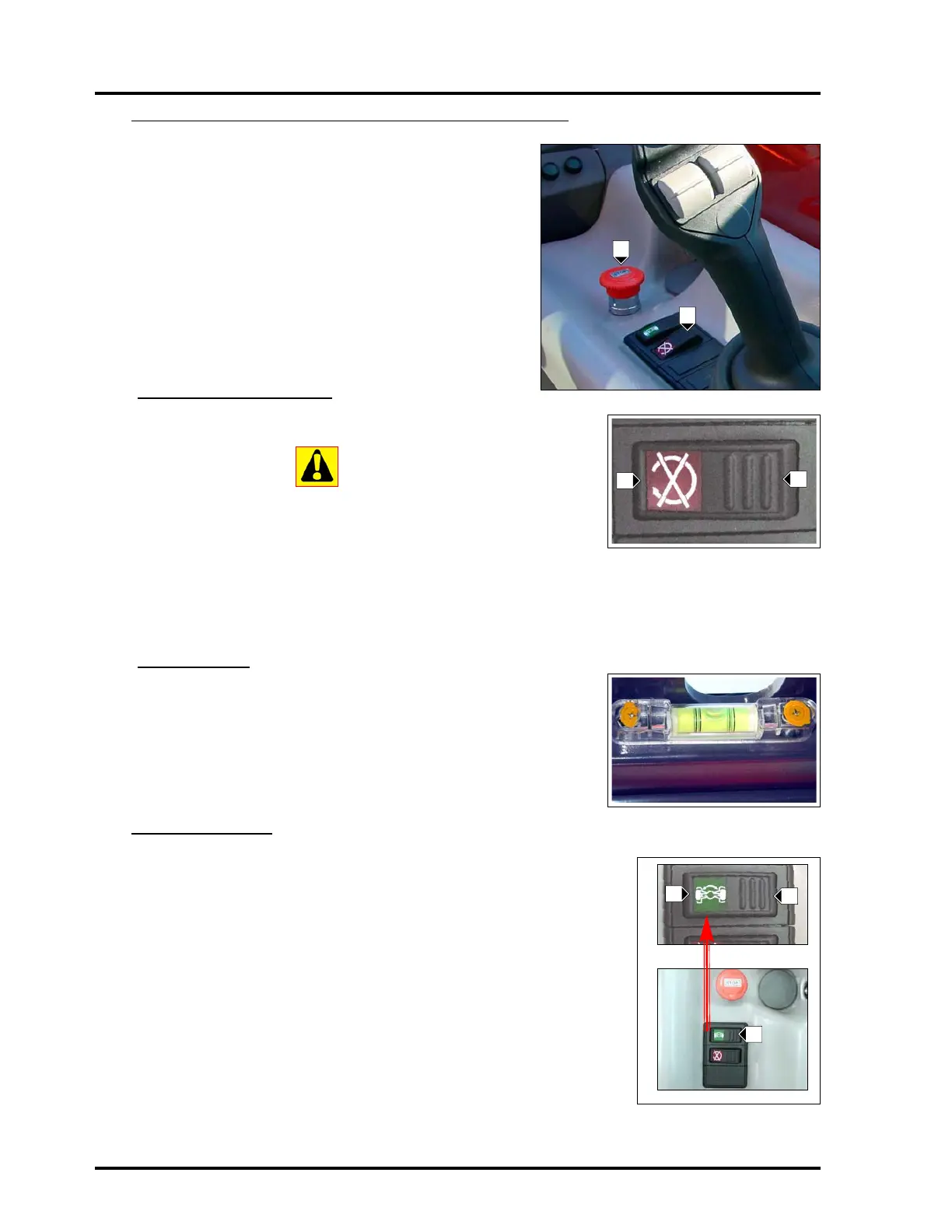

OPTIONAL EXCLUSION SWITCH (accessories hydraulic block)
The switch “A” has two differents positions, enabled or disabled
the optional command.
With the switch “B” pressed (red indicator light ON) the Optional/
accessories hydraulic block function is activated.
With the switch “C” pressed (red indicator light OFF) the Optional/
accessories hydraulic block function is inhibited.
RED EMERGENCY BUTTON
It deactivates all the movements for the boom and carriage.
N.B. IT IS MANIDITORY TO STOP HYDRAULIC MOVEMENTS
USING EMERGENCY PUSHBUTTON "D" WHILE TRAVELLING ON ROADS
To deactivate the movements, press the red pushbutton “D”.
To restore movements turn the red pushbutton “D” clockwise.
BUBBLE LEVEL
It is on the upper part of the cab, in front of the operator.
It is used to control the horizontality of t he machine, in case of need use the
levelling device (see point 20 Levelling device).
LEVELLING DEVICE
The lever “E” has two positions, controls lift truck levelling towards the right or left.
- pushing “F” the truck inclinates to the left
- pushing “G” the truck inclinates to the right
To ensure the truck is level check the bubble level.
N. B. : The levelling operation cannot be carried out when :
- the telescopic boom has been raised more than about 30° from the ground
A
D
F
G
E
B
C
