Manitou MC 40 Powershift User Manual

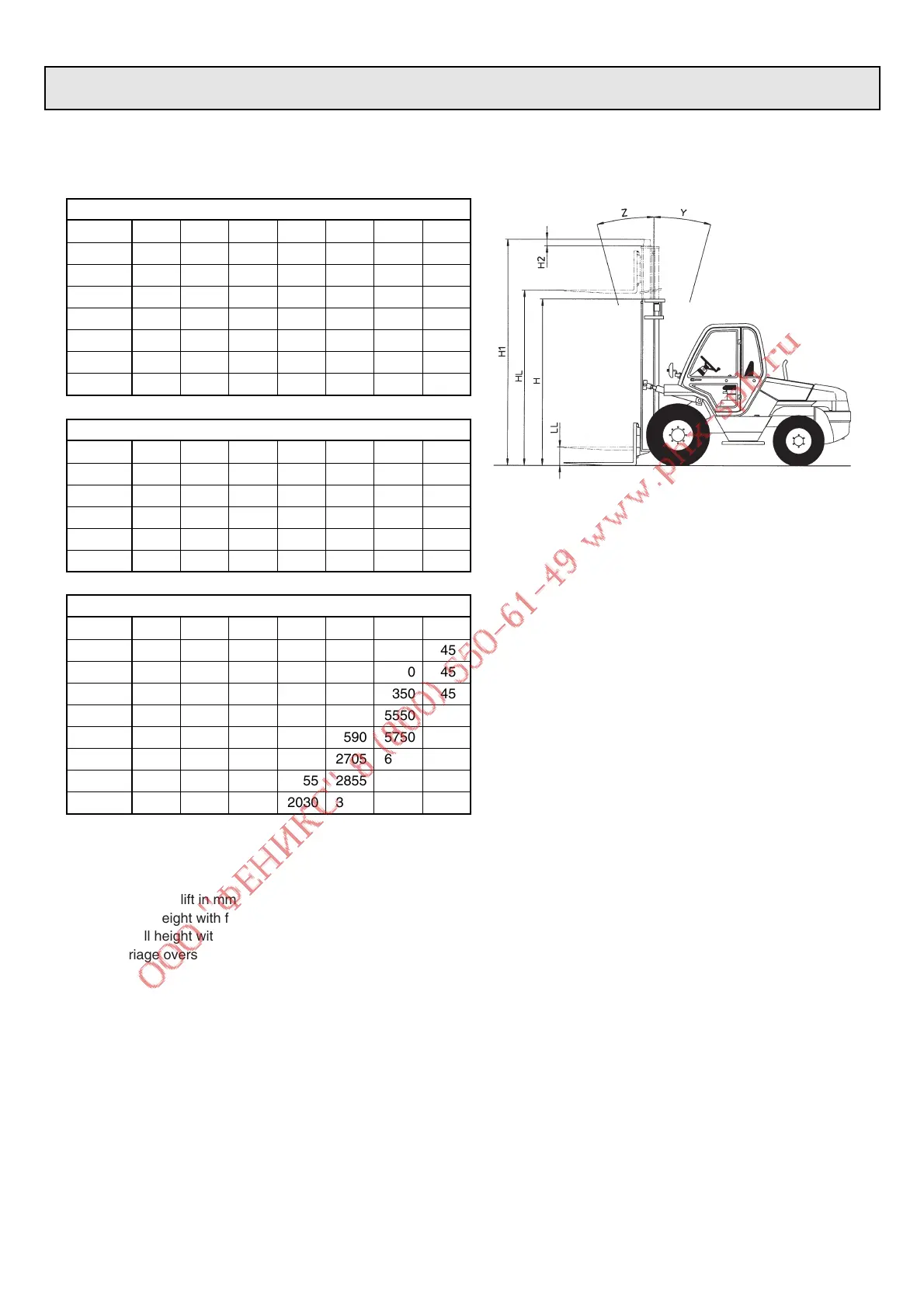

2 - 20
HL : Lift height in mm
Z : Forward tilting
Y : Backward tilting
LL : Free-acting lift in mm
H : Overall height with folded mast in mm
H1 : Overall height with spreaded out mast in mm
H2 : Carriage overshooting in mm
CHARACTERISTICS OF MASTS WITH ROLLERS
DOUBLE MAST WITH ALL-ROUND VISION
MAST HL Z Y LL H H1 H2
3m00 3050 15° 15° 0 2505 4050 45
3m30 3350 15° 15° 0 2655 4350 45
3m50 3550 15° 15° 0 2755 4550 45
3m70 3750 15° 15° 0 2855 4750 45
4m00 4050 15° 15° 0 3005 5050 45
4m50 4550 15° 15° 0 3250 5550 45
5m00 5050 15° 15° 0 3505 6050 45
MC 40 POWERSHIFT Série 2
TRIPLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m70 3750 15° 15° 1255 2255 4750 45
4m00 4050 15° 15° 1355 2355 5050 45
4m30 4350 15° 15° 1455 2455 5350 45
4m50 4550 15° 15° 1530 2530 5550 20
4m70 4750 15° 15° 1590 2590 5750 40
5m00 5050 10° 15° 1705 2705 6050 15
5m50 5550 10° 15° 1855 2855 6550 45
6m00 6050 10° 15° 2030 3030 7050 20
DOUBLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m00 3050 15° 15° 1518 2530 4062 32
3m30 3350 15° 15° 1668 2680 4362 32
3m50 3550 15° 15° 1768 2780 4562 32
3m70 3750 15° 15° 1868 2880 4762 32
4m00 4050 15° 15° 2018 3030 5062 32
