3 - 34
G6/4 G6/5
G6 - CAB
LIFT
To be done in the event of major intervention on the lift truck.
PLACING THE LIFT TRUCK
- Place the lift truck on level ground.
- Untighten the parking brake.
- Tilt the mast backwards to a maximum and if necessary lift the
mast so as to bring it approximately 50 cm above the cab.
FITTING THE CABLE

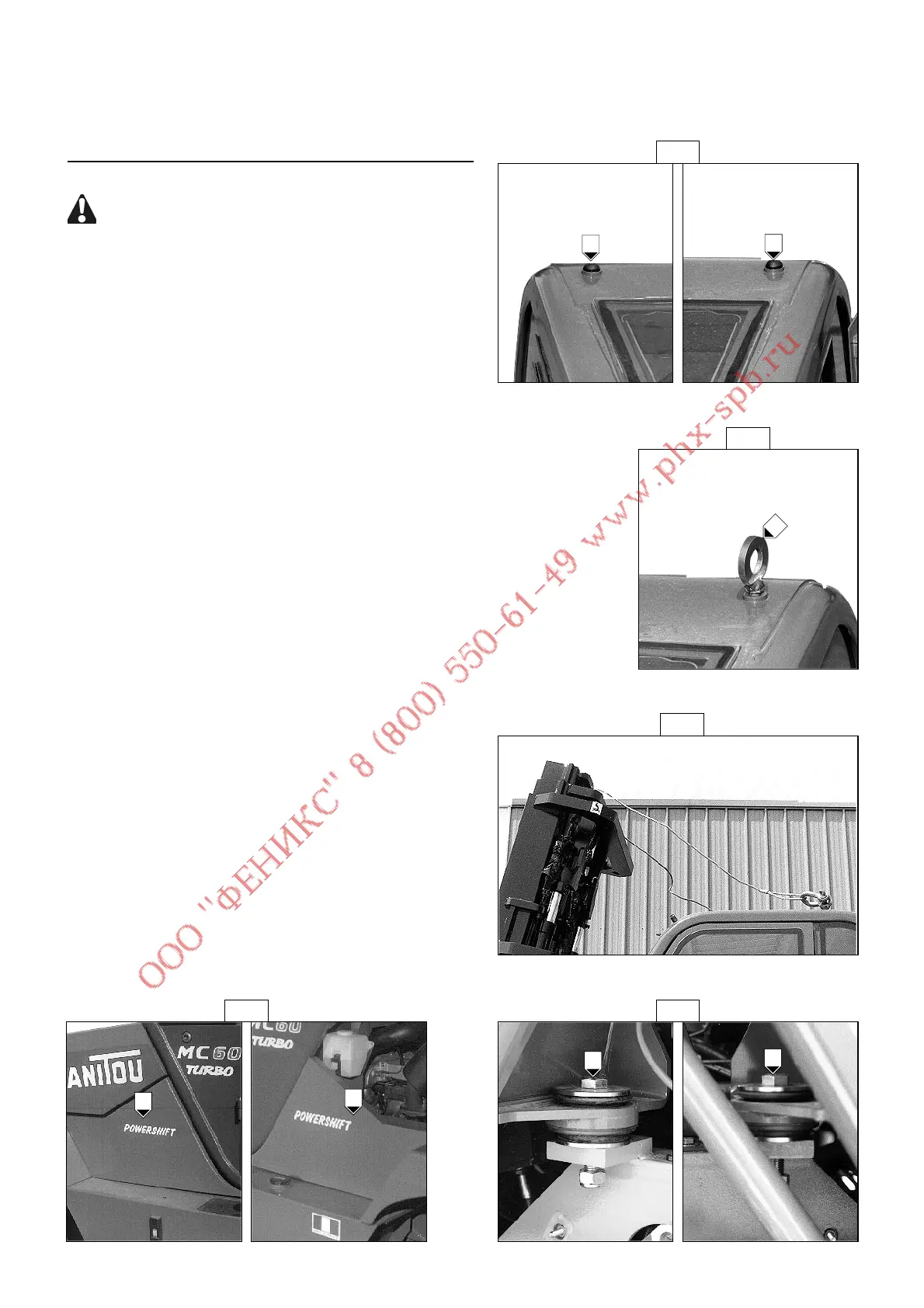

- Unscrew the two screws 1 (Fig. G6/1) on the roof and replace
them by two rings 2 (Fig. G6/2) Ref : 72422.
- Pass the cable onto the upper belt of the mobile upright and
fasten the cable onto the rings (Fig. G6/3).
UNLOCKING THE CAB
- Disassemble the side panels 3 (Fig. G6/4) (3 fastening screws).
- Unscrew the fastening screws of the silent blocks 4 (Fig. G6/5)
and only remove the nuts.
- Close the left cab door.
- Open and immobilize the right door.
G6/1
G6/2
G6/3
1
1
2
3
3
4
4
