Manitou MC 40 Powershift User Manual

2 - 36
7 - IGNITION SWITCH
The key switch has five positions :
P - Ignition off, parking position.
O - Ignition switched off and engine stopped.
I - Ignition on.
II - Heating.
III - The engine starts, return to position i as soon as the key is released.
8 - BRAKING OIL TANK
See chapter : B - EVERY 50 HOURS SERVICE in paragraph : 3 - MAINTENANCE.

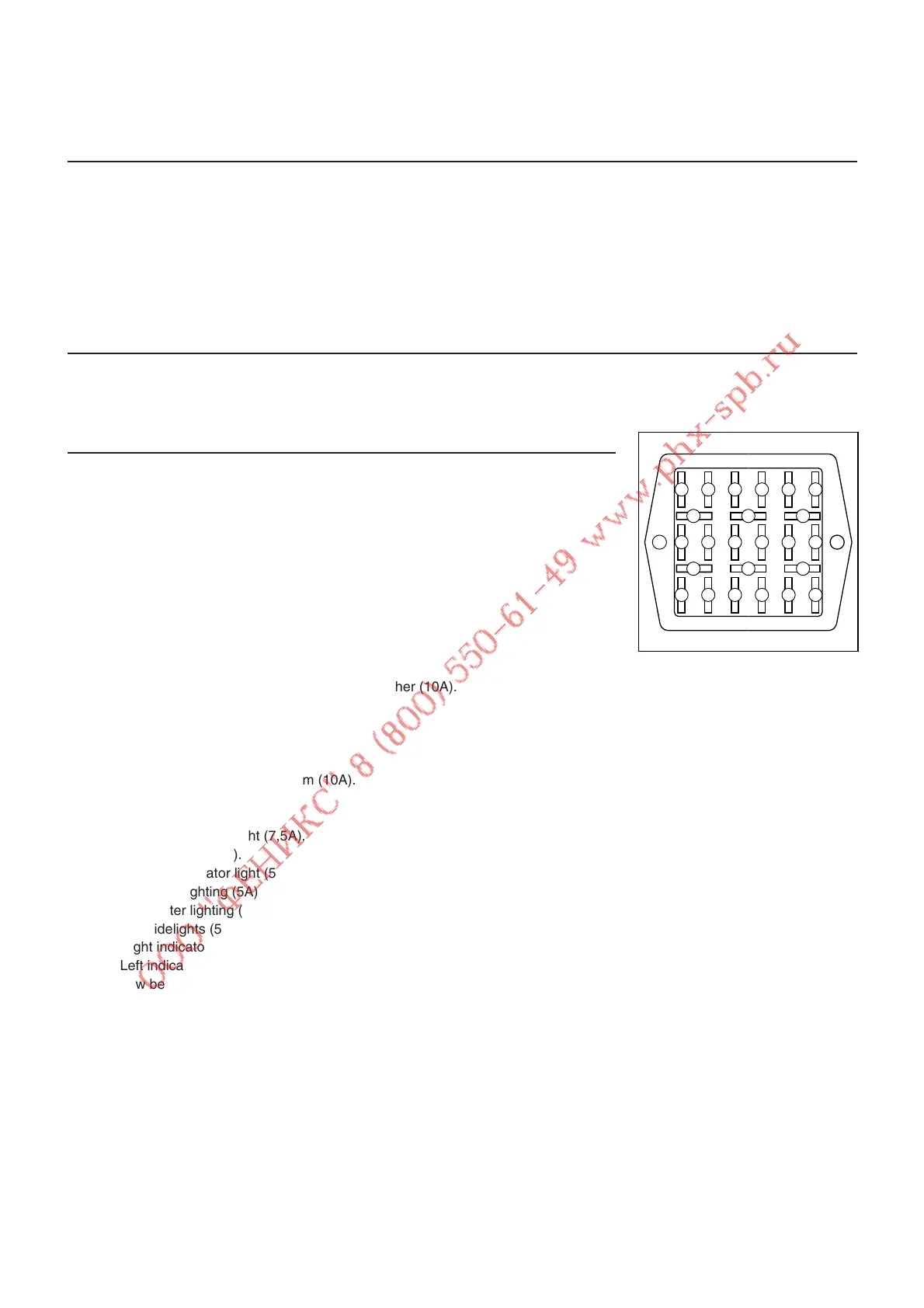

9 - FUSES
Remove the cover to have access to the fuses.
1 - Light switch power supply, horn and indicators (15A).
2 - Hazard warning lights power supply (10A).
3 - Rear windscreen wiper (10A).
- OPTION Roof windscreen wiper (10A).
4 - OPTION Working tail light (10A).
5 - OPTION Front working head light (10A).
6 - Heating (15A).
7 - Panel of signal lights (5A).
- Fuel level (5A).
- Hourmeter (5A).
8 - Front windscreen wiper and windscreen washer (10A).
9 - Indicator power supply (10A).
10 - Gear reverser (10A).
- Transmission cut-off (10A).
- OPTION Reverse lights (10A).
- OPTION Reverse buzzer alarm (10A).
11 - Sound alarm (10A).
- Stop switch (10A).
12 - OPTION Flashing light (7,5A).
13 - Right sidelight (5A).
- Sidelight indicator light (5A).
- Fuel level lighting (5A).
- Hourmeter lighting (5A).
14 - Left sidelights (5A).
15 - Right indicators (7,5A).
16 - Left indicators (7,5A).
17 - Low beam (10A).
- Low beam indicator light (5A).
18 - Main beam (10A).
- Main beam lamp (10A).
19 - Roof light (3A).
- OPTION (+)permanent (3A).
20 - OPTION Anti-theft device provision (10A).
21 - Differential lock (10A).
22 - OPTION Pneumatic seat (15A).
- OPTION Fuel reheating (15A).
23 - OPTION Anti-theft device provision (10A).
24 - OPTION.
NOTE : Replace a used fuse with a new fuse of the same quality and capacity. Never reuse a repaired fuse.
7 8 9 10 11 12
1 2 3 4 5 6
13
22 2423
19 2120
14 15 16 17 18
