2 - 35

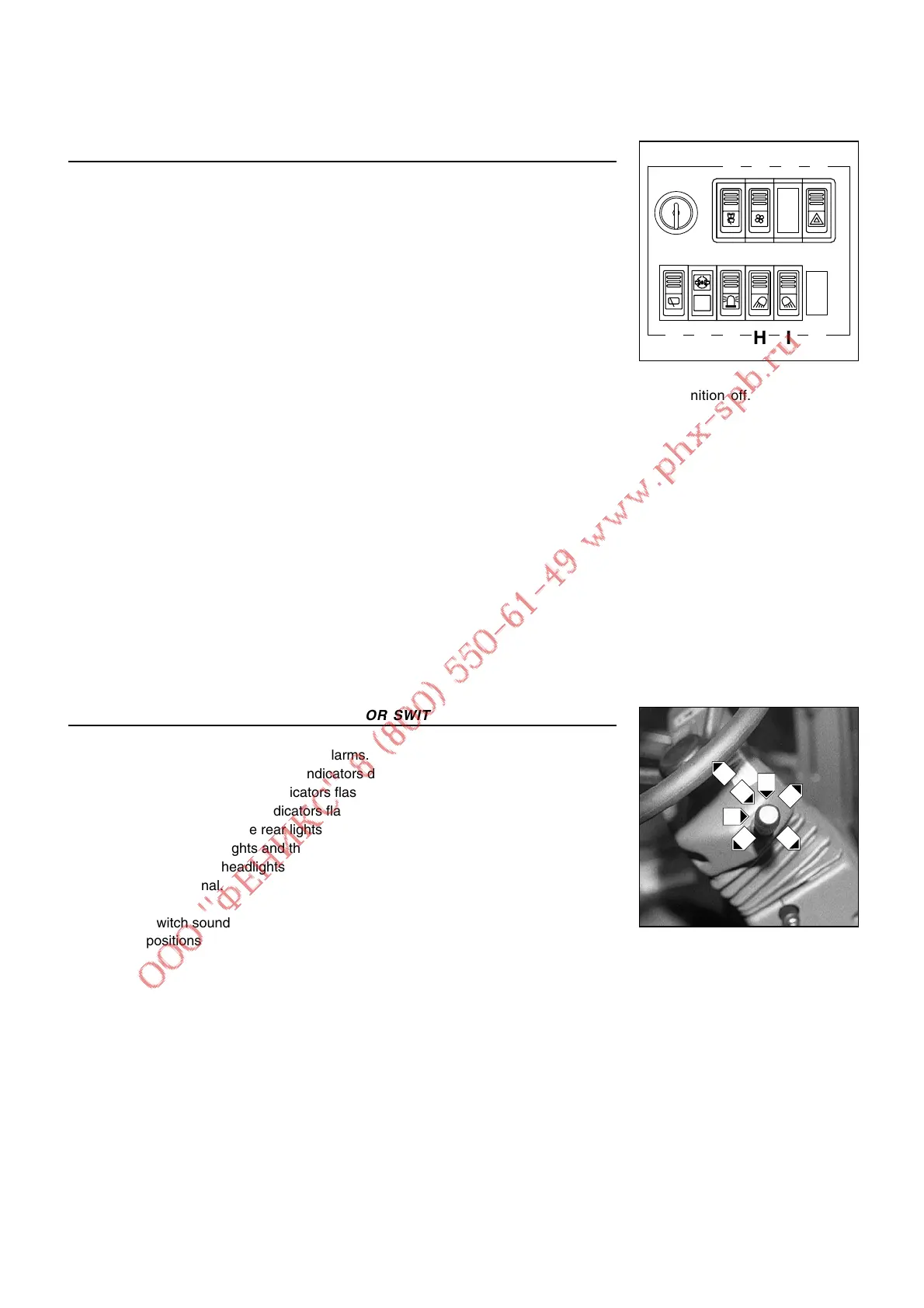

5 - SWITCH PANEL
A - FRONT WINDSCREEN WIPER AND WINDSCREEN WASHER
This two position switch, when set on the "down" position and simultaneously pressed,
allows the windscreen-washer and the windscreen wiper to be operated, and when set
on the "up" position, the windscreen wiper to be operated.
B - HEATING FAN
This two speed switch allows warm or cold air to pass through the heating vents.
C - OPTION
D - WARNING LIGHTS
This switch enables the L.H. and R.H. Indicators to be switched on simultaneously, with the ignition off. The signal light
indicates that the switch is being used.
E - REAR WINDSCREEN WIPER + ROOF WIPER OPTION
F - DIFFERENTIAL LOCK SIGNAL LIGHT
This orange signal light goes out when you push the differential lock button.
G - FLASHING LIGHT OPTION
H - WORKING HEAD LIGHT OPTION
I - WORKING TAIL LIGHT OPTION
J - OPTION
6 - LIGHT SWITCH, HORN AND INDICATOR SWITCH
The switch controls the visual and sound alarms.
A - All lights are off, the direction indicators do not flash.
B - The right hand direction indicators flash.
C - The left hand direction indicators flash.
D - The sidelights and the rear lights are on.
E - The dipped headlights and the rear lights are on.
F - The main beam headlights and the rear lights are on.
G - Headlight signal.
Pressing the switch sounds the horn.
NOTE : The positions D - E - F - G can be carried out without the ignition being on.
A B C D
E F G H I J
F
D
G
C
B
E
A
