2 - 39

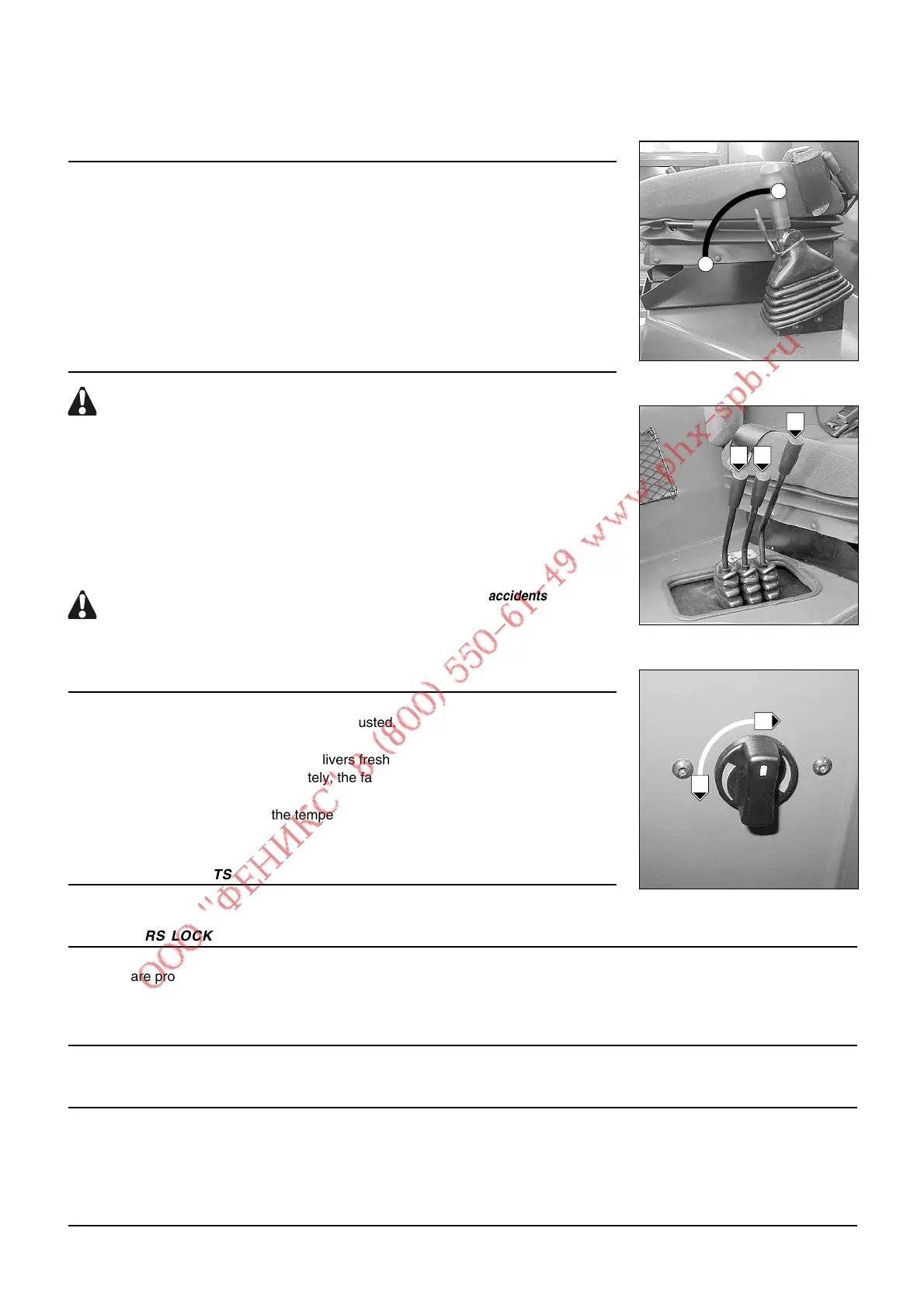

17 - PARKING BRAKE LEVER
To prevent accidental loosening or release, the lever is fitted with safety locking.
- To apply the parking brake, pull the lever backwards (Position A).
- To loosen the parking brake, release and push the lever forwards (Position B).
18 - HYDRAULIC CONTROLS
Do not attempt to alter the hydraulic system pressure by interfering with the pressure
regulating valve. In the event of suspected malfunction, contact your dealer. ANY
ALTERATION MAY RENDER THE WARRANTY NULL AND VOID.
LEVER A : Controls the load lifting.
- The lever backwards for load lifting.
- The lever forwards for load lowering.
LEVER B : Controls the mast tilting.
- The lever backwards for backward mast tilting.
- The lever forwards for forward mast tilting.
LEVER C : Controls the additional attachment.
Use the hydraulic controls carefully without jerking, to avoid accidents caused by
shaking the lift truck.
19 - C
AB HEATER CONTROL
Allows the temperature inside the cab to be adjusted.
A - With the valve closed, the fan delivers fresh air.
B - With the valve opened completely, the fan delivers warm air.
The intermediate positions allow the temperature inside the cab to be adjusted.
20 - HEATING VENTS
21 - DOORS LOCKS
Two keys are provided with the lift truck to enable the cabin to be locked.
22 - DOORS UNLOCKING BUTTONS
23 - DOCUMENT HOLDER
Make sure that the operator’s manual is in the right place, i.e. in the document holder.
NOTE : An OPTION waterproof document-holder exists.
24 - DOCUMENT HOLDER NET
A
B
A
B
C
B
A
