3 - 15
B13 - FRONT AXLE TRANSMISSION UNIVERSAL JOINT
GREASE
Clean and lubricate the points 1 (3 lubricators) (Fig. B13/1 and B13/2) with grease (See
chapter : LUBRICANTS AND FUEL in paragraph : 3 - MAINTENANCE) and remove the
surplus of grease.
B14 - REAR AXLE
GREASE
Clean and lubricate the following points with grease (See chapter : LUBRICANTS AND
FUEL in paragraph : 3 - MAINTENANCE) and remove the surplus of grease.
1 - Lubricators of the swivel pins (6 lubricators) (Fig. B14/1).
2 - Lubricators of the rear axle oscillation pin (2 lubricators) (Fig. B14/2).

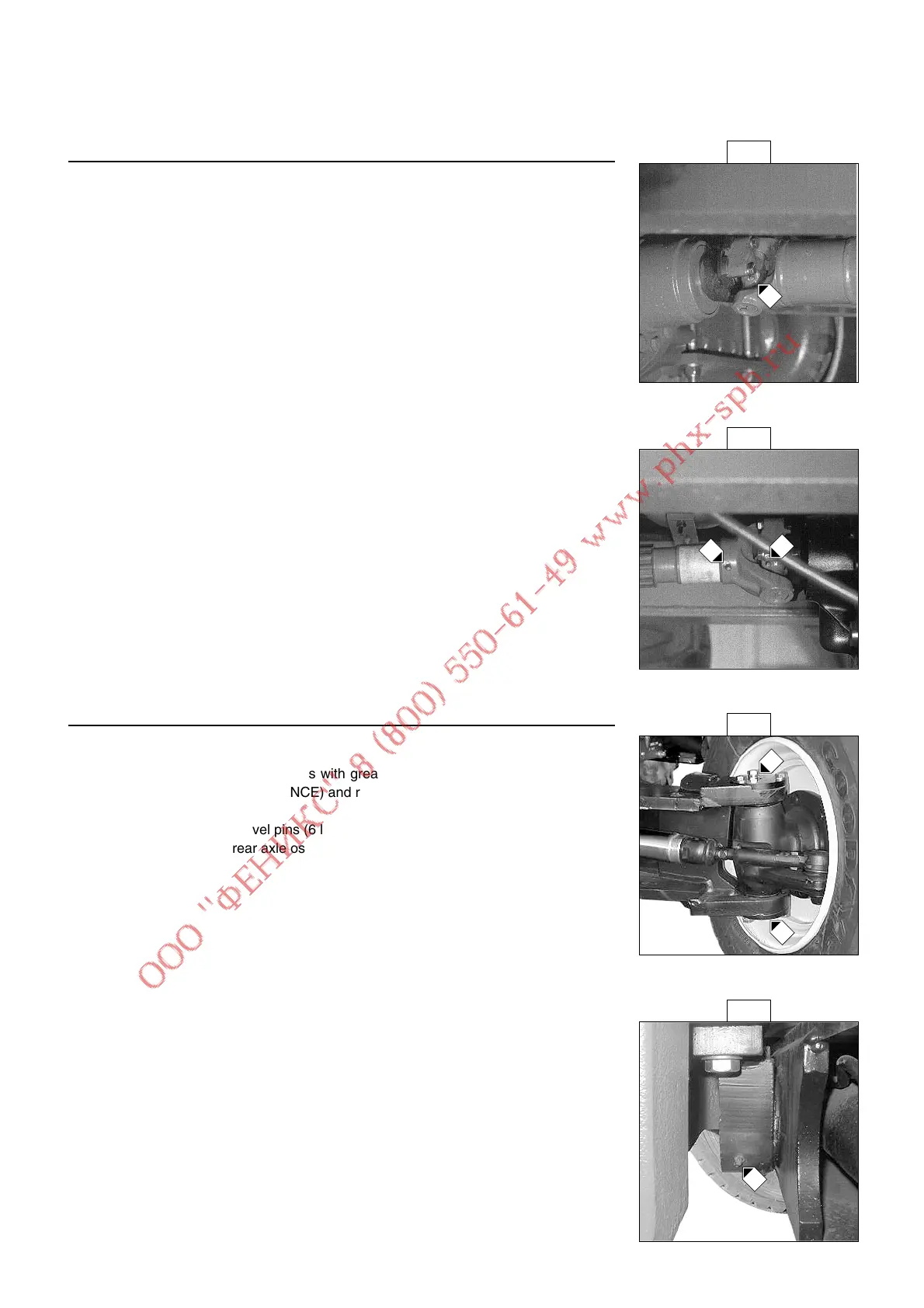

B14/1
B14/2
B13/1
B13/2
1
1
1
1
1
2
