3 - 17
The adjustment of the stops performed by the manufacturer must not
be modified under any circumstances.

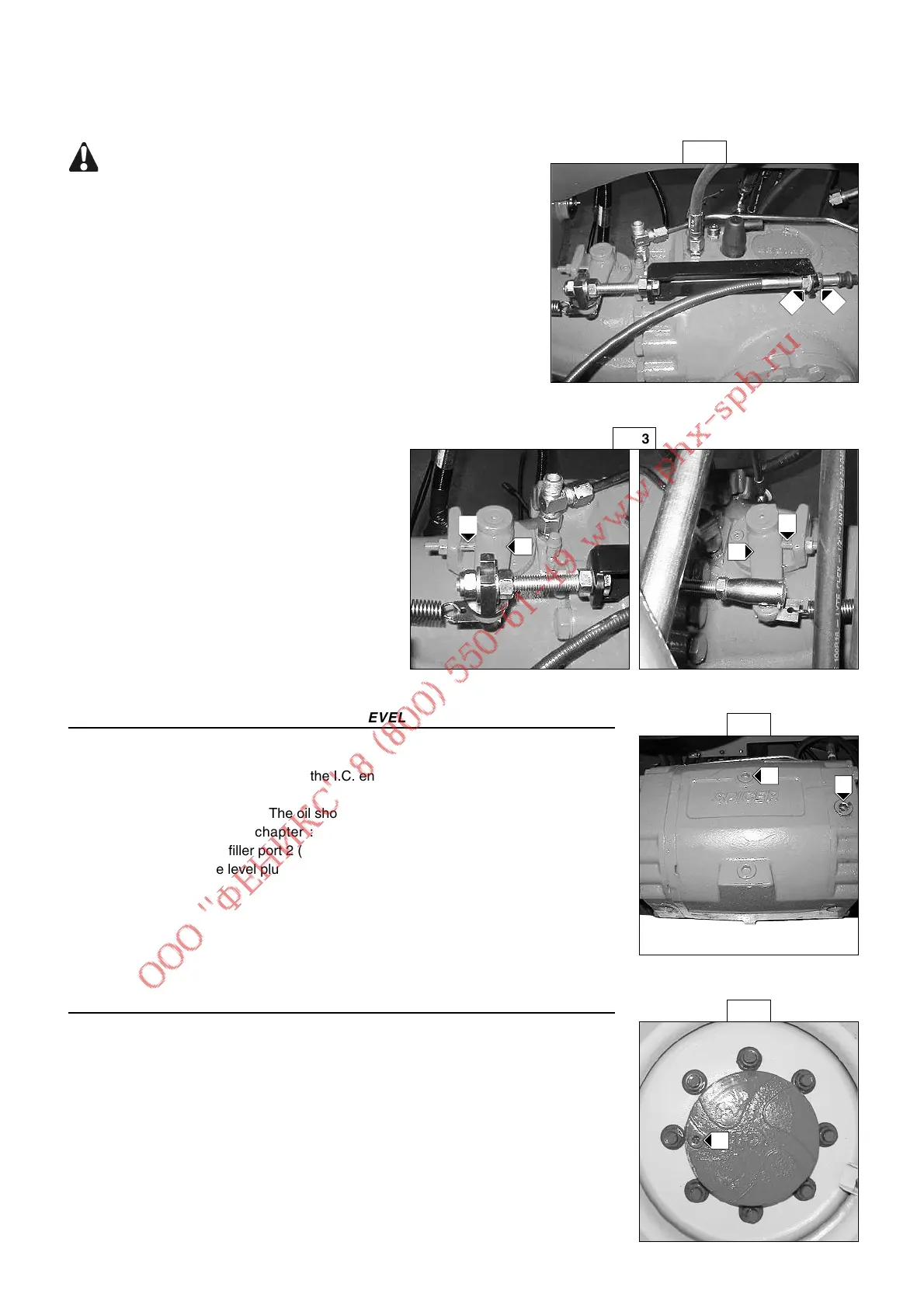

ADJUSTMENT OF THE PARKING BRAKE
- Leave the parking brake in position B (Fig. C3/1).
- Progressively tighten the end piece of the lever 4 (Fig. C3/1) and
recheck braking.
- Repeat the operation until the correct braking adjustment is obtained.
C4 - FRONT AXLE DIFFERENTIAL OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Remove level plug 1 (Fig. C4). The oil should be flush with the edge of the hole.
- If necessary, add oil (See chapter : LUBRICANTS AND FUEL in paragraph : 3 -
MAINTENANCE) by the filler port 2 (Fig. C4).
- Replace and tighten the level plug 1 (Fig. C4) (Tightening torque 34 to 49 N.m).
C5 - FRONT WHEELS REDUCERS OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Check the level on each front wheel reducer.
- Place level plug 1 (Fig. C5) in the horizontal position.
- Remove the level plug ; the oil should be flush with the edge of the hole.
- If necessary, add oil (See chapter : LUBRICANTS AND FUEL in paragraph : 3 -
MAINTENANCE) by the same hole.
- Replace and tighten the level plug 1 (Fig. C5) (Tightening torque 34 to 49 N.m).
C3/3
2
2
C3/2
C5
C4
1
1
2
1
1
3
3
