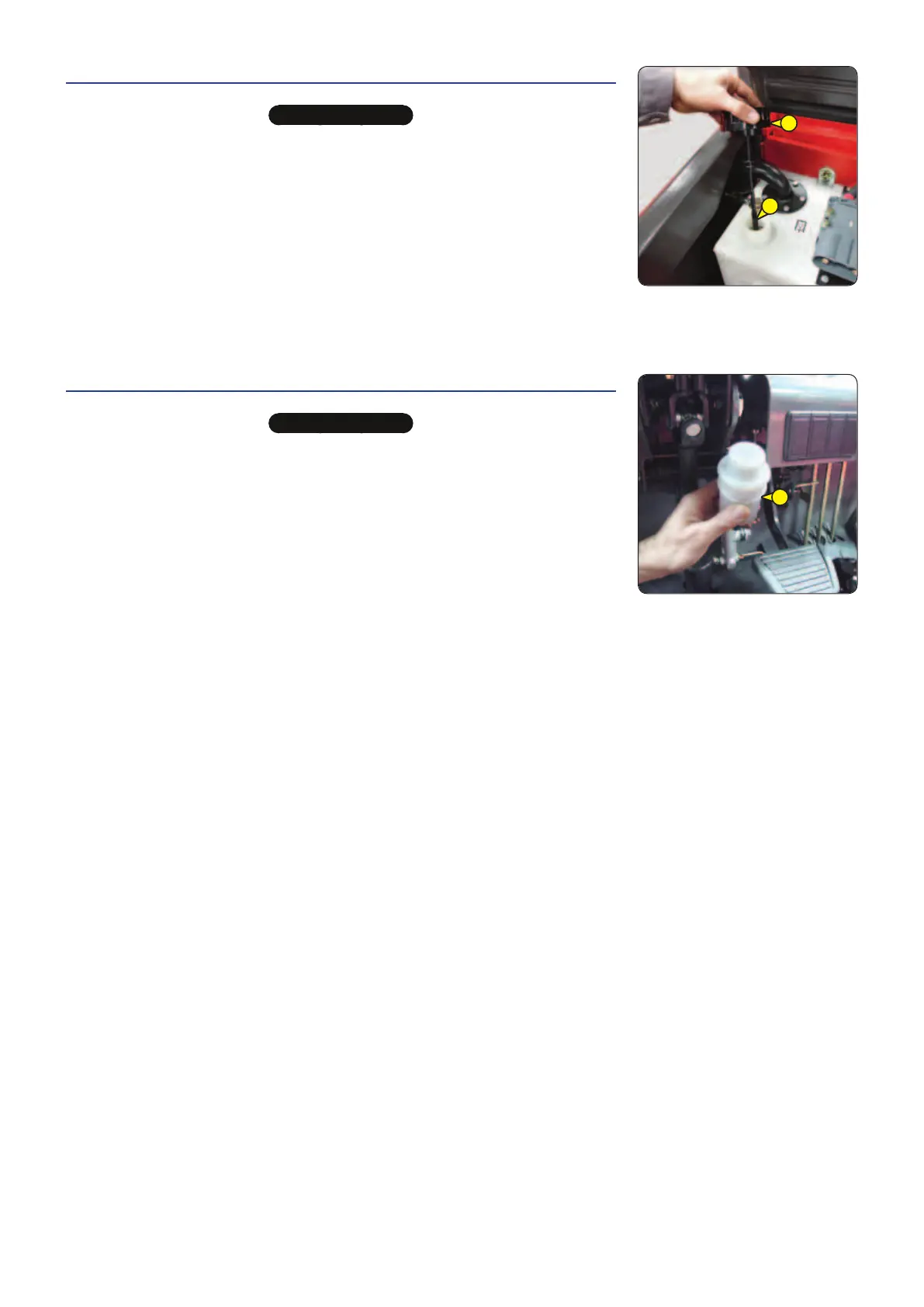

B7 – HYDRAULIC OIL LEVEL
CHECK
IMPORTANT
Use a clean funnel and clean the underside of the oil drum before filling.
Place the lift truck on level ground with the mast tilted backward and lowered as far
as possible.
- Raise the battery cover (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS).
- Pull out dipstick 1.
- Wipe the dipstick and check the correct level between the MIN and MAX marks.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) via the filler port (2).
- Put back the dipstick (1).
- Visually check that there is no leakage in the tank and pipes.
Always maintain the oil level at maximum as cooling depends on the oil flowing through the tank.
B8 – BRAKE OIL LEVEL
CHECK
IMPORTANT
If the level is abnormally low, consult your dealer.
Place the lift truck on level ground.
- Visually check the level.
- The level is correct when it is at the MAX level on the tank.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) via the filler port (1).
- Visually check that there is no leakage in the tank and pipes.
3-14
1
2
1
647503 (10/05/2017)
M
E 418/420/425C 48V S3
