Manitowoc Flav’R-Pic FRP-250, Flav’R-Pic FRP-250SCI User Manual

Section 3 Operation
Part Number 020003315 1/11 3-7
PROGRAM MODE 1
Carb/Non-Carb & Flavor Shot Duration Settings
Mode 1 displayed above, allows you to select your carb/
non-carb settings for dispense points N3 (Nozzle 3)
through the left control board and/or N4 (Nozzle 4) with
the right control board. Only nozzles N3 and N4 have the
option to be a non-carb drink, N1 and N6 are carbonated
only. Mode 1 is also used to set a 1 or 2 second
dispense duration for flavor shots on N2 and N5 using
their corresponding control board.
N3 & N4 Carbonated or Non-Carbonated Drinks
1. Choose a control board, if programing N3 (Nozzle 3)
use the left control board, if programming N4 use the
right control board. Beverage dispense points are
designated by a black nozzle.
2. Press the program button and hold for 3 seconds or
until the LED displays 1.
3. To set a carbonated drink for N3 (Nozzle 3) touch
one of the following touch pads; S5, S6, S7, or S8
until the LEDs around the touch pad are constant.
4. To set a non-carbonated drink for N3 (Nozzle 3)
touch one of the following touch pads; S5, S6, S7, or
S8 until the LEDs around the touch pad are blinking.
•Constant LEDs = Carbonated
•Blinking LEDs = Non-Carbonated
5. Follow the same instructions for N4 (Nozzle 4) using
the right control board and touch pads S9, S10, S11,
or S12.
6. When you are finished press the program button to
go to a different mode or save your settings and
return the control board to the dispense mode by
pressing the program button and holding for 3
seconds or until the LED displays 0.
Flavor Shot Dispense Duration
1. Choose a control board, if programing flavor shots
for N2 (Nozzle 2) use the left control board, if
programming shots for N5 use the right control
board. Flavor shot dispense points are designated
by a blue nozzle.
2. Press the program button and hold for 3 seconds or
until the LED displays 1.
3. To set a 1 second shot for N2 (Nozzle 2) touch one
of the following touch pads; F1, F2, F3, or F4 until
the LEDs around the touch pad are constant.
4. To set a 2 second shot for N2 (Nozzle 2) touch one
of the following touch pads; F1, F2, F3, or F4 until
the LEDs around the touch pad are blinking.
•Constant LEDs = 1 second shot
•Blinking LEDs = 2 second shot
5. Follow the same instructions for N5 (Nozzle 5) using the
right control board and touch pads F5, F6, F7, or F8.
6. When you are finished press the program button to
go to a different mode or save your settings and
return the control board to the dispense mode by
pressing the program button and holding for 3
seconds or until the LED displays 0.

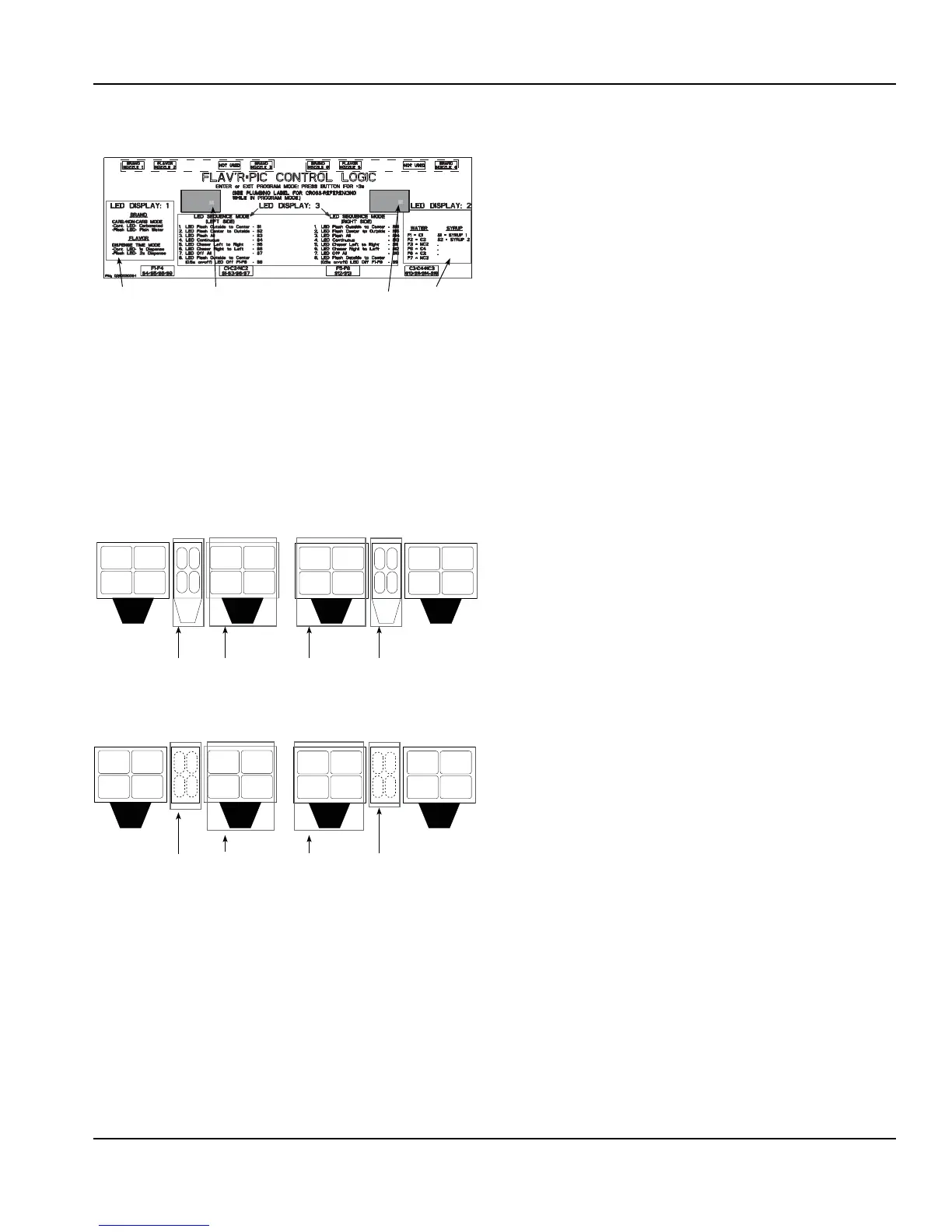

0
0
Brixing
Info
Mode 1 Carb/
non-Carb &
Flavor Shot
Durations
Right Side
Program
Button
Left Side
Program
Button
S1
S3
S2
S4
S5
S7
S6
S8
F1
F2
F4
F3
N1
N3
N2
S12
S10
S11
S9
S16 S14
S15
S13
F5
F6
F8
F7
N4
N6
N5
Right
Flavor
Shots
Left Flavor
Shots
FRP-250 WITH FLAVOR SHOTS
Left Carb/
Non-Carb
Right
Carb/Non-
Carb
S1
S3
S2
S4
S5
S7
S6
S8
F1
F2
F4
F3
N1
N3
S12
S10
S11
S9
S16 S14
S15
S13
F5
F6
F8
F7
N4
N6
Right
Hidden
Touchpad
Buttons
Left
Hidden
Touchpad
Buttons
FRP-250 WITHOUT FLAVOR SHOTS
Left Carb/
Non-Carb
Right
Carb/Non-
Carb
