RT650E
12

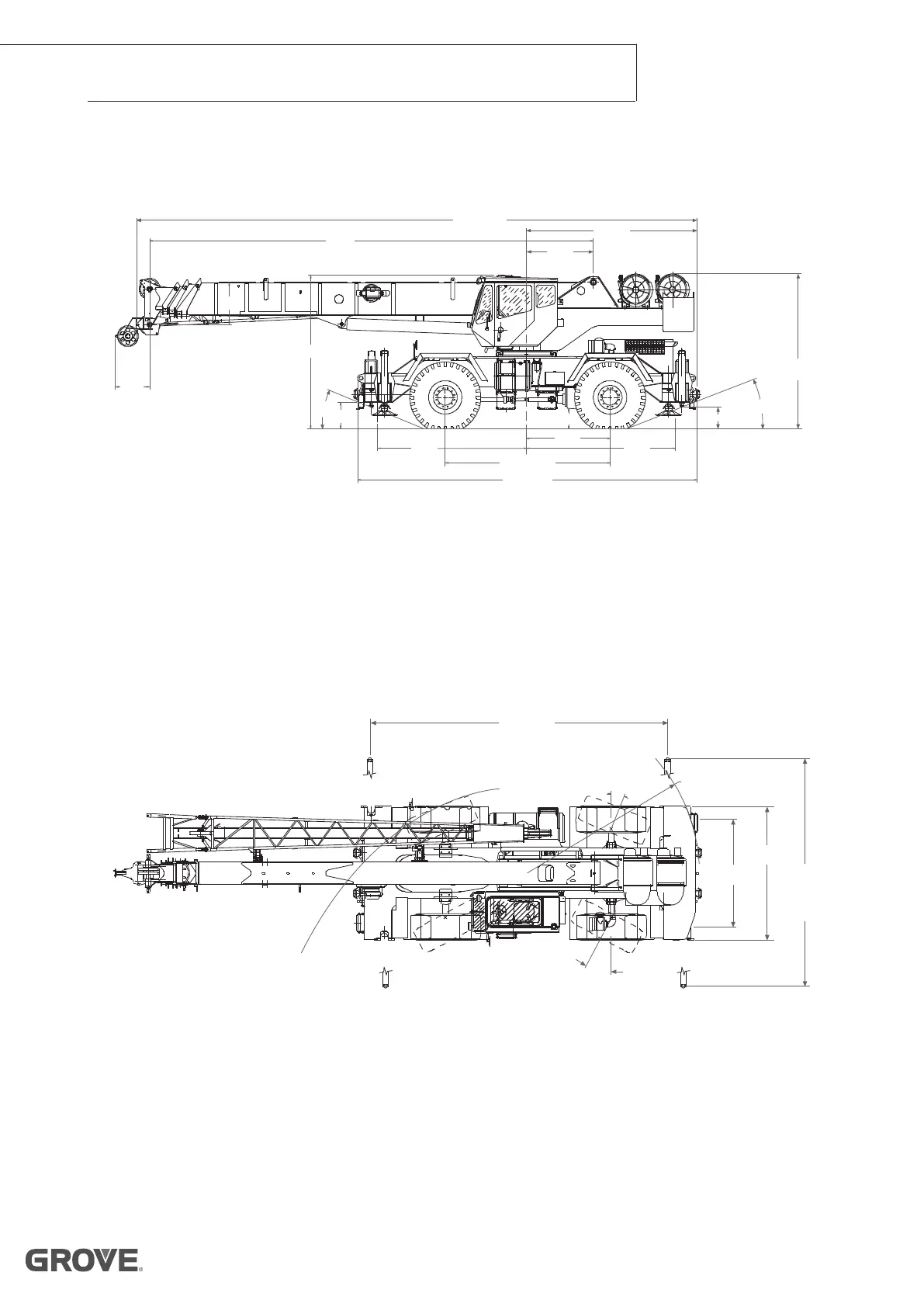

Dimensions • Abmessungen • Encombrement • Dimensiones
Dimensioni • Dimensões •
Размеры
Note: Reference dimensions in mm • Hinweis: Bezugsmaße in mm • Remarque : cotes de référence en mm •
Nota: Dimensiones de referencia en mm • Nota: Dimensioni di riferimento in mm • Nota: Dimensões de referência em mm •
Примечание: Справочные размеры (в мм)
3910
12448
10122
1905
459
20°
602
3497
967
781
3391
3391
494
3861
7749
6782
3918
28°
22°
R 10363
Ra 6400
2444
TRACK
3030
OUTRIGGERS:
0% 2883
50% 4877
100% 6858
3895
1524
3531
21°
