ATTACHMENTS CD5520/YB5520 OPERATOR MANUAL
5-8 Published 07-06-2017, Control # 406-03

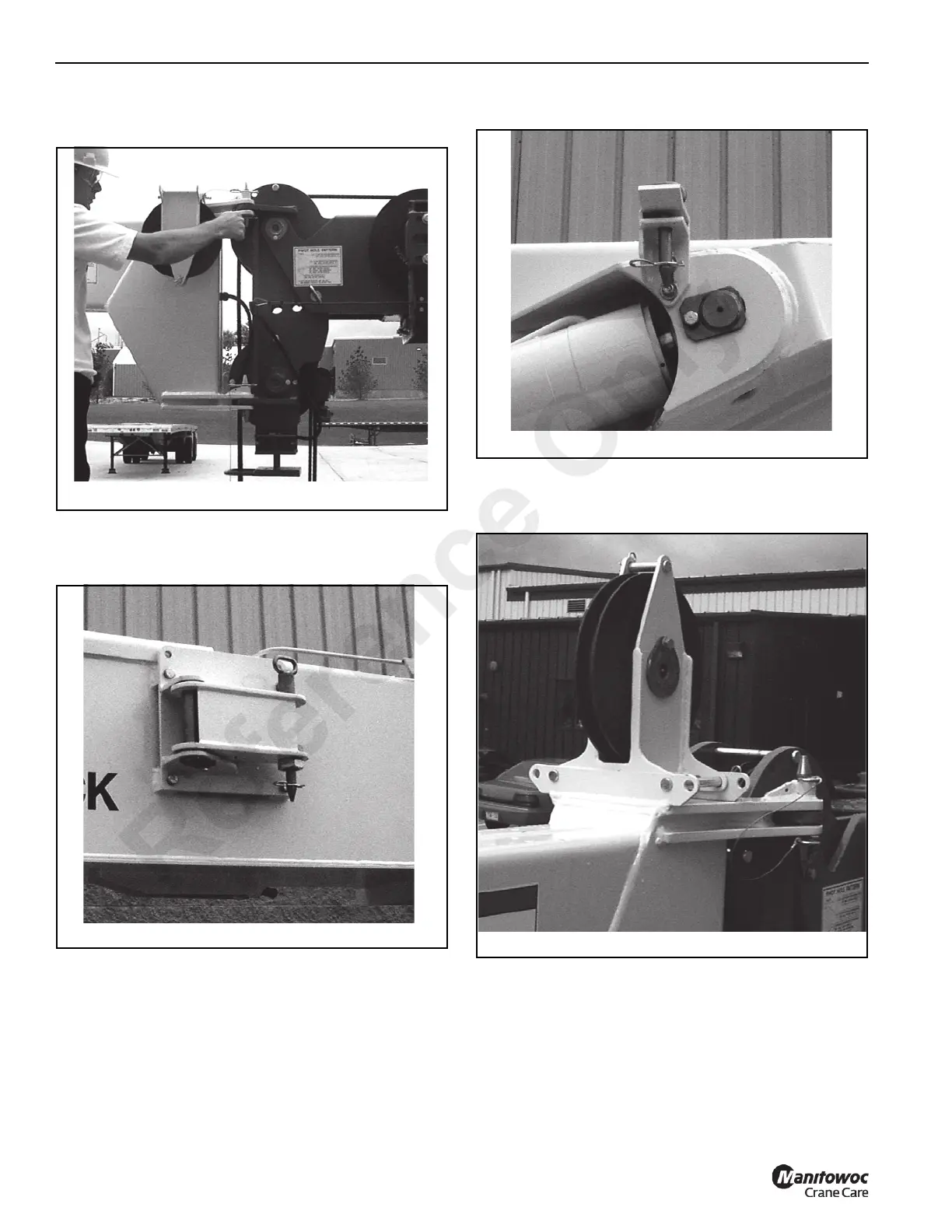

9. Swing the boom extension fully to the front and install
the remaining two link pins. (Figure 5-16).
10. Install the pin removed in Step 7 as shown in
Figure 5-17. Be sure to install the hair pin. Swing the
swing arm back towards the boom.
11. Install the anchor bracket pin (Figure 5-18).
12. Remove the pin from the deflector sheave bracket. Flip
up the deflector sheave bracket to the upright position
(Figure 5-19). Install the pin.
FIGURE 5-16
p0375
FIGURE 5-17
p0376
FIGURE 5-18
p0377
FIGURE 5-19
p0378
