2. Extremely Thin at Evaporator Outlet

There is no ice, or a considerable lack of ice formation, at

the outlet of the evaporator.

Examples: No ice at all on the outlet half of the evaporator,

but ice forms on the inlet half of the evaporator. Or, the ice

at the outlet of the evaporator reaches 1/8 in. to initiate a

harvest, but the inlet of the evaporator already has 1/2 in.

to 1 in. of ice formation.

3. Extremely Thin at Evaporator Inlet

There is no ice, or a considerable lack of ice formation at

the inlet of the evaporator. Examples: The ice at the outlet

of the evaporator reaches 1/8 in. to initiate a harvest,

but there is no ice formation at all on the inlet of the

evaporator.

4. No Ice Formation

The ice machine operates for an extended period, but

there is no ice formation at all on the evaporator.

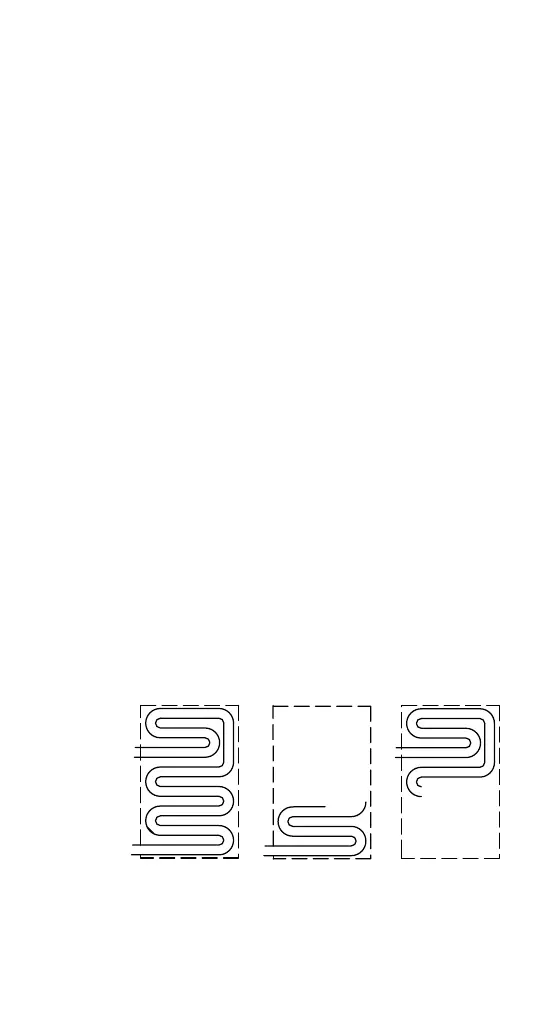

Evaporator Tubing Routing

Routing of the tubing on the back of the evaporator

determines the ice fill pattern failure mode. The

evaporator outlet tubing does not exit directly at the top

of the evaporator, but exits several inches below the top

of the evaporator. Extremely Thin at the Evaporator Outlet

will first be visible several inches below the top of the

evaporator. Extremely Thin at Evaporator Inlet will first be

visible at the bottom of the evaporator.

Outlet

Inlet

Thin at Inlet Thin at Outlet

ICE
