Manitowoc MLC300 Guide

Lubrication Guide MLC300
F2280-32
Published 07-21-21
Item Description Item Description
1a Grease Pump (Crawler - 1 each) 8b Primary Divider Valve (Turntable)
1b Grease Pump (Turntable Bearing) 9a
Grease Lines to Secondary Divider
Valves (Crawler)
2 Grease Reservoir
9b
Grease Lines to Secondary Divider
Valves (Turntable)
3 Grease Fitting for Filling Reservoir
4
Grease Fitting for Greasing System
Manually
10a
Secondary Divider Valves (Crawler -
2 each)
5 Pressure Relief Valve 10b
Secondary Divider Valves (Crawler -
2 each)
6 Variable Pressure Switch 10c
Secondary Divider Valves
(Turntable)
7a Grease Line from Pump (Crawler) 11a
Grease Lines to Lube Points
(Crawler)
7b Grease Line from Pump (Turntable) 11b
Grease Lines to Lube Points
(Turntable)
8a
Primary Divider Valve (Crawler - 1
each)
12 Indicator Pin
LINCOLN LUBE SYSTEMS

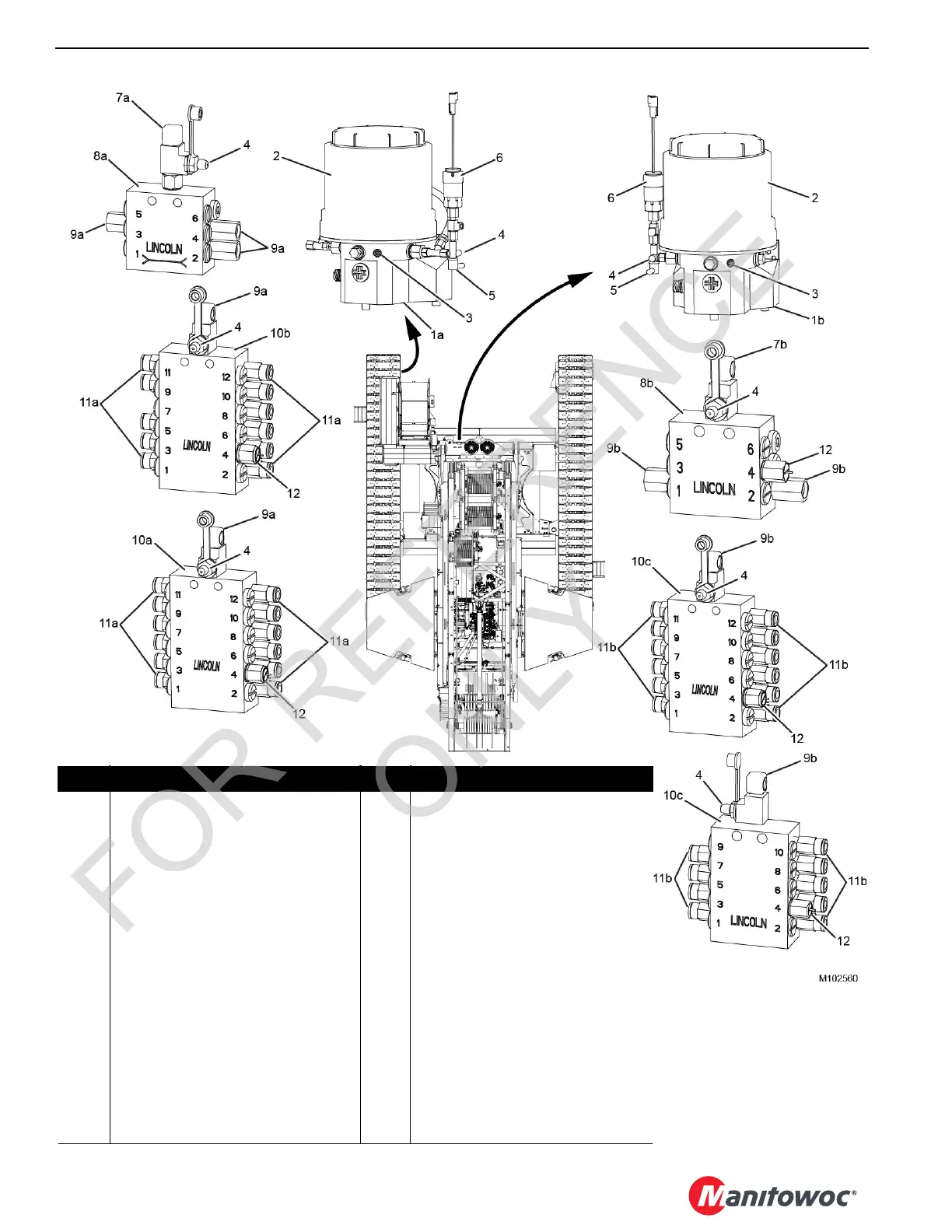

FIGURE 15
FOR REFERENCE
ONLY
