DIAGNOSING ICE THICKNESS CONTROL
CIRCUITRY
Ice Machine Does Not Cycle Into Harvest when
Water Contacts the Ice Thickness Control Probe
Step 1 Bypass the freeze time lock-in feature by
moving the ON/OFF/WASH switch to OFF and back to
ON. Wait until the water starts to flow over the
evaporator.
Step 2 Clip the jumper wire to the ice thickness probe
and any cabinet ground.

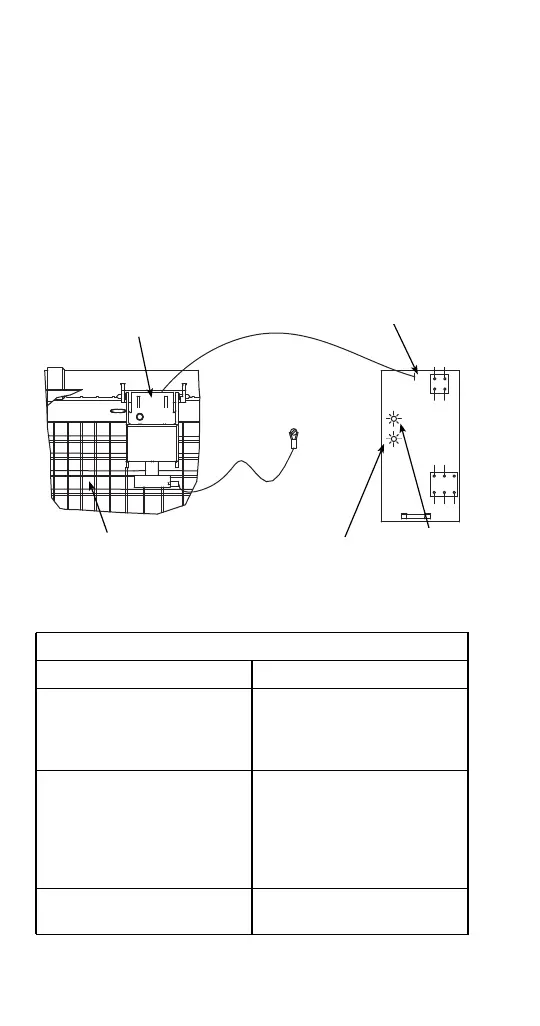

Step 2 Jumper wire connected from probe to ground
Monitoring Harvest Light Correction
The harvest light comes on,
and 6-10 seconds later, ice
machine cycles from freeze
to harvest.
The ice thickness control
circuitry is functioning
properly. Do not change any
parts.
The harvest light comes on
but the ice machine stays in
the freeze sequence.
The ice control circuitry is
functioning properly. The ice
machine is in a six minute
freeze time lock-in. Verify
Step 1 of this procedure was
followed correctly.
The harvest light does not
come on.
Proceed to Step 3.
GROUND
JUMPER WIRE
ICE THICKNESS
PROBE
PROBE
CONNECTION
EVAPORATOR
BIN SWITCH
LIGHT
(GREEN)
SV1592i
HARVEST LIGHT
(RED)
To Next Page
