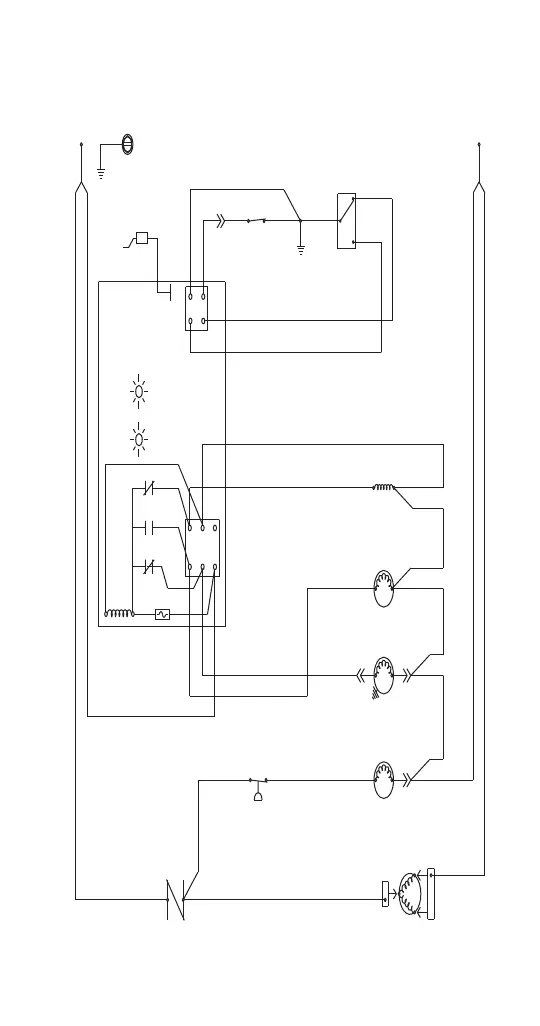

Part Number 8001119 10/19 221
QM45
CONTACTOR
CONTACTS
CONTROL
BOARD
HARVEST
LIGHT
ICE
THICKNESS
PROBE
COMPRESSOR
FAN MOTOR
WATER PUMP
HOT GAS
SOLENOID
OVERLOAD
PROTECTOR
SV1776
STARTING
DEVICE
TOGGLE SWITCH
WASH
RELAY COIL
ON
OFF
FUSE
TRANS.
CAUTION: DISCONNECT POWER BEFORE
WORKING ON ELECTRICAL CIRCUITRY.
NOTE: DIAGRAM SHOWN DURING THE FREEZE CYCLE.
SEE SERIAL PLATE FOR VOLTAGE.
FAN CYCLE
CONTROL
BIN SWITCH
BIN
SWITCH
LIGHT
(22)
(24)
(23)
(20)
(21)
(2)
(3)
(6)
(5)
(4)
3
2
1
(7)
(8)
(9)
(11)
(10)
(12)
(15)
(13)
24
C
R
S
L1
L2 (N)
