Reparaturanleitung A10V(N)O
Repair Instructions A10V(N)O
RDE 92703-02-R/12.00
22 Brueninghaus Hydromatik

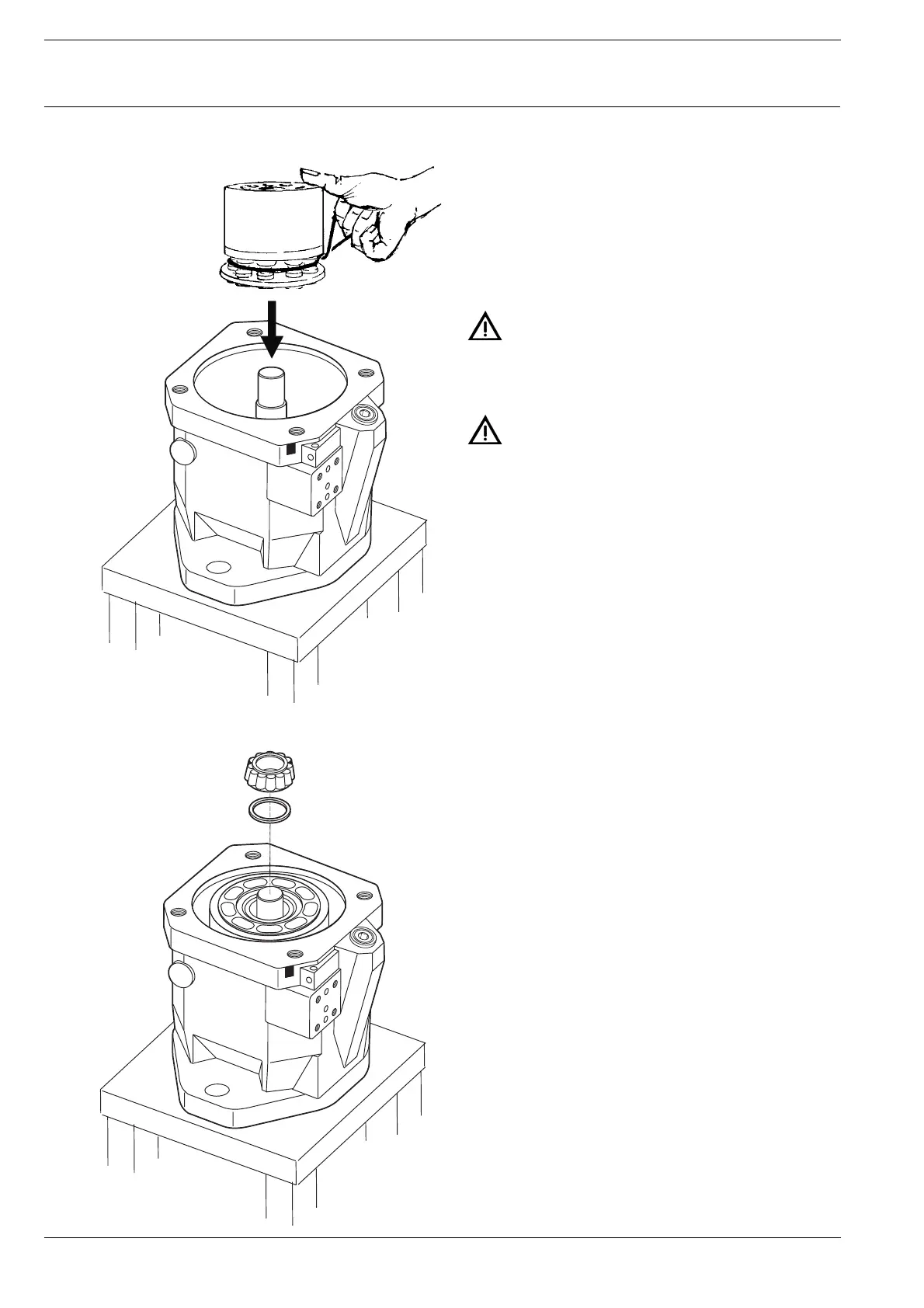

Rotationsgruppe montieren!
Montagehilfe:
Mit O-Ring Kolben festhalten.
Fit rotary group!
Assembly aid:
Hold the pistons by using an O-ring.
Pumpe montieren
Pump assembly
Lager und Abstimmscheibe auf Welle
montieren.
Assemble bearing and adjustment shim to
shaft.
