Installation manual / Manusa
DTCXSO01EN-V10
44. Wiring

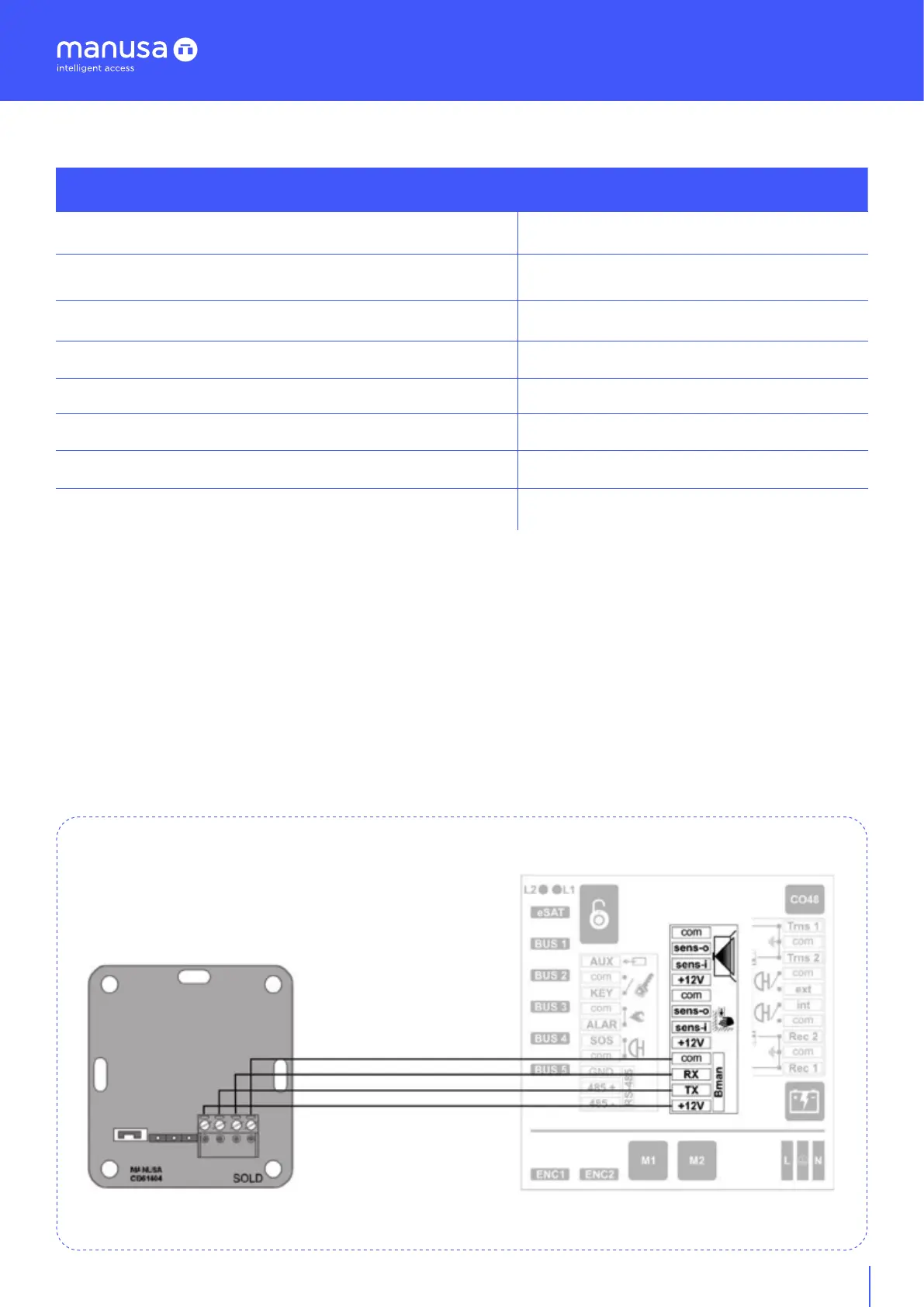

Technical specifications
Height of 7-segment display 10 mm
Infrared receiver frequency 38 kHz
Average reach of remote control 8 m
Power supply 12 VCC
Consumption 120 mA
Ambient operating temperature 0–50ºC
Dimensions 75 x 75 x 53 mm
Maximum cable length 100 m
3. Technical specifications
The Optima program switch dimensions and mounting holes allow it to be housed in a standard electric switch box.
It can be mounted in one of three ways:
• Straight onto the wall.
• Built into the cover.
• Built into the wall.
It is connected to the operator by a 4-core shielded cable with a minimum core cross-section of 0.25 mm.
Shielding must be earthed at one end. The maximum cable length is 100 m.
4. Wiring
