Manusa Visio C2H - Page 37

DMJOIC201EN - v2
VISIO C2H OPERATOR - INSTALLATION MANUAL
37
To close
To open
Fig.
11.16
i
Check that when the unlocking mechanism
is operated manually, the lock's bolts open
and close as shown in the diagram.
See the operation of the unlocking mecha-
nism as shown in the sequence.
Fig.
11.16
Fig.
11.15
Fig.
11.15
i

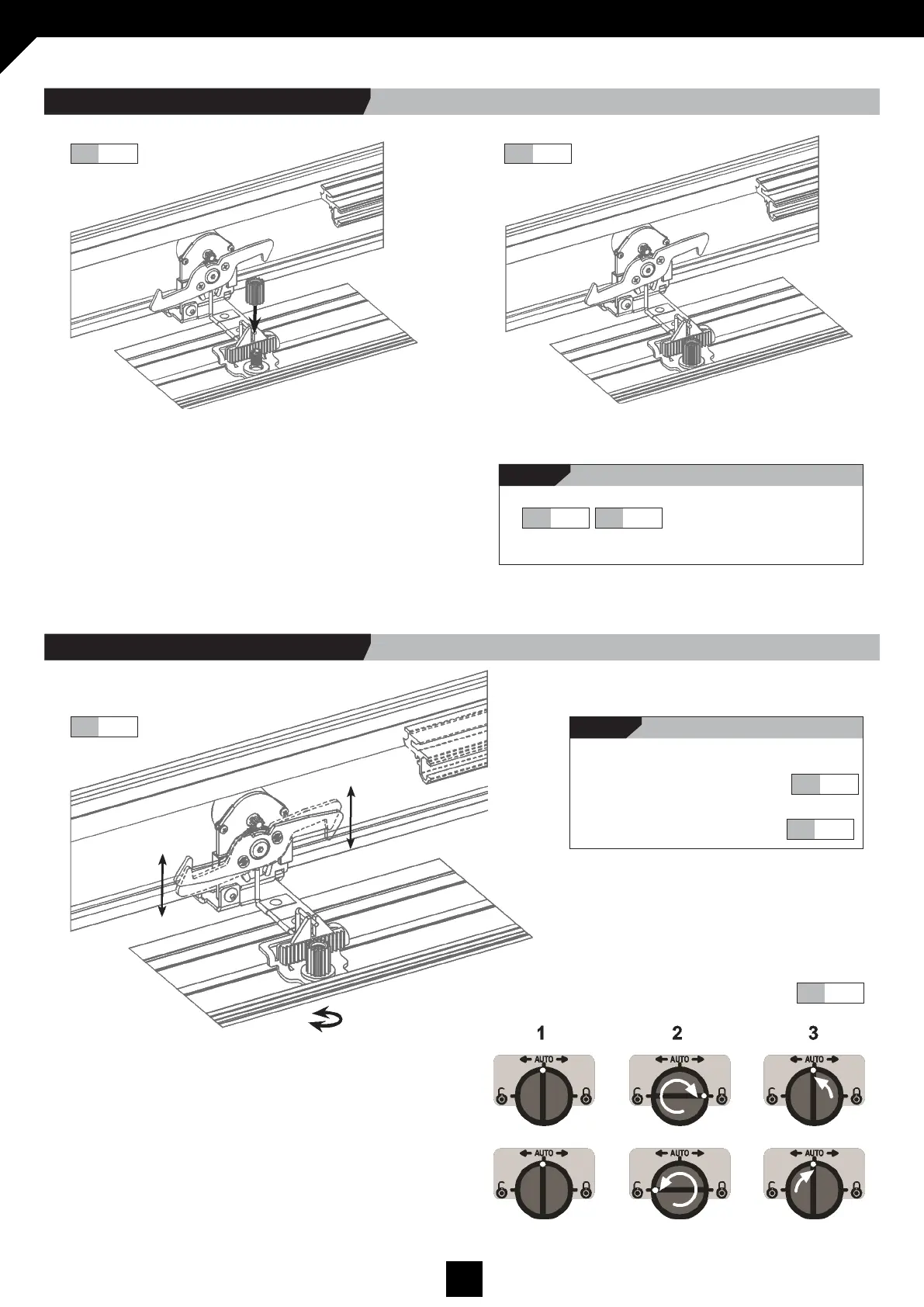

Insert the toothed cylinder as shown in the diagrams.
Push it in all the way until it snaps into place.
Fig.
11.14
Fig.
11.13
Fig.
11.14
Fig.
11.13
11.3.5 Toothed cylinder assembly
11.3.6 Operate lock manually.
