The included sound calibration microphone stand is convenient for use when performing Speaker Calibration.
Using your own tripod or the supplied Sound calibration microphone stand enables settings to be automatically
configured to the optimum listening environment, providing exceptionally high performance.
Important: External Antennas
The removable external antennas are required for both Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the Bluetooth or Wi-Fi features of the SR7013.

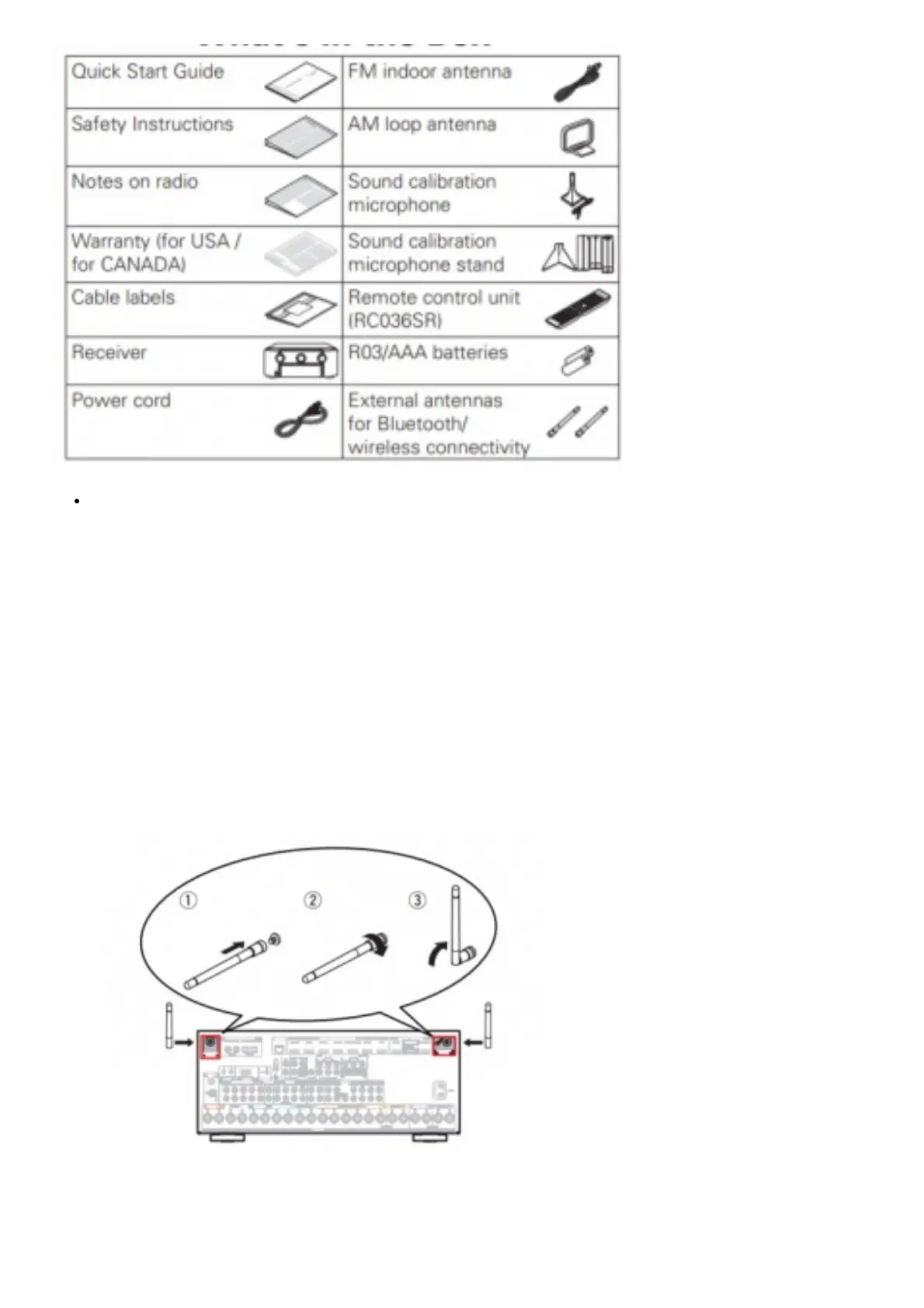

nnConnecting the external antennas for Bluetooth/Wireless connectivity
For each of the two antennas:
1. Place the antenna evenly over the antenna terminal located at the upper left or right corner of the rear panel.
2. Turn the antenna clockwise until it is fully connected. Do not over tighten.
3. Rotate the antenna upwards for the best possible reception
Setup
There are four steps to the setup process.
