Marantz AV8802A - Page 29

.
ew
ytq
q
r
ui
e
A

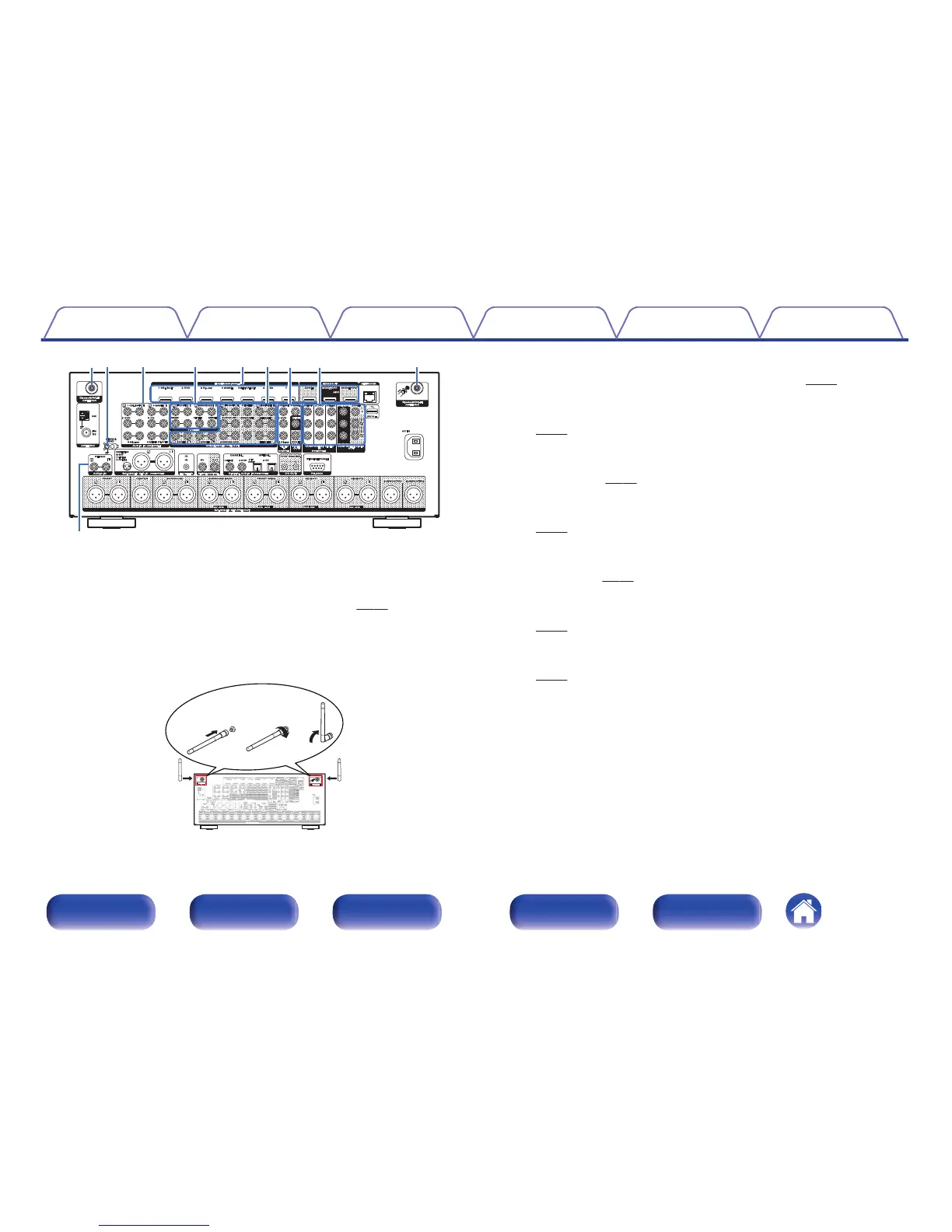

Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless
connectivity when connecting to a network via wireless LAN, or when
connecting to a handheld device via Bluetooth. (v
p. 80)
A
Place the external antennas for Bluetooth/wireless connectivity
evenly over the screw terminal of rear.
B
Turn clockwise until the antennas is fully connected.
C
Rotate the antenna upwards for best reception.
.
qwe
B
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 72)
C
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
(v p. 69)
D
7.1-channel input connectors (7.1CH IN)
Used to connect to a device that has multi-channel audio output
connectors. (v
p. 73)
E
HDMI connectors
Used to connect devices equipped with HDMI connectors.
(v
p. 64)
F
UNBALANCED RCA PRE OUT connectors
Used to connect a power amp with UNBALANCED RCA input
connectors. (v
p. 48)
G
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
(v p. 66)
H
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
(v
p. 66)
