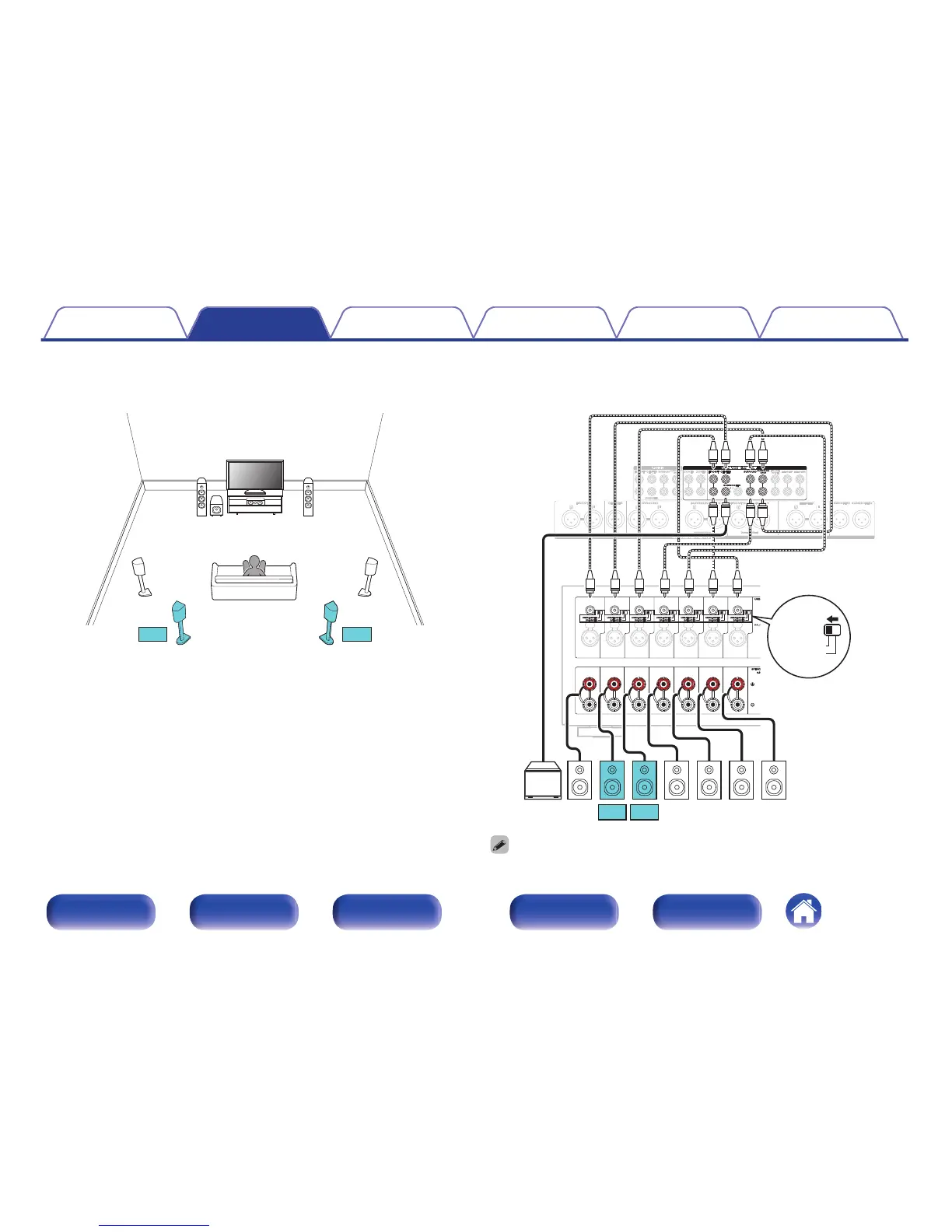

7.1-channel playback (surround back)

This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.

SW C

SBRSBL

CHANNEL1

(FL)

CHANNEL2

(FR)

CHANNEL3

(SL)

CHANNEL4

(SR)

CHANNEL7

(C)

CHANNEL1

(FL)

CHANNEL2

(FR)

CHANNEL3

(SL)

CHANNEL4

(SR)

CHANNEL7

(C)

CHANNEL5

(SBL)

CHANNEL6

(SBR)

CHANNEL5

(SBL)

CHANNEL6

(SBR)

BALANCED

UNBALANCED

SR SL FR FLC

SBLSBR

【

MM8077

】

When using a single surround back speaker, connect it to the SURROUND BACK L

connector.
