16

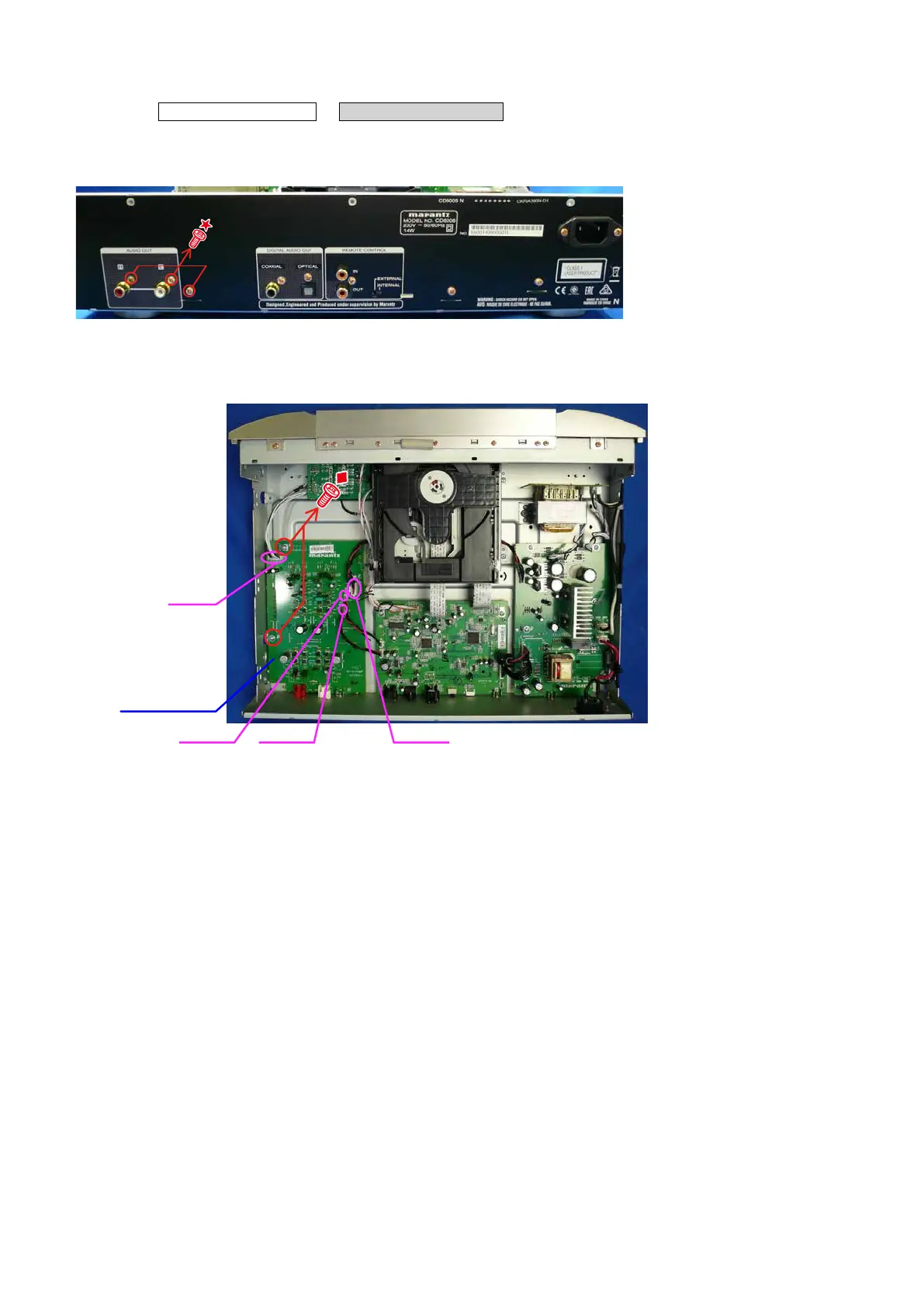

4. AUDIO PCB
Proceeding : CABINET TOP
→
AUDIO PCB
(1) Remove the screws.
(2) Remove the connector wires and FFC, remove the screws.
AUDIO PCB
CN3504
CN3301
BN2101 BN3101
Shooting direction A
