Marantz CD5005 - Disassembling the Mecha Assembly; Short Laser Pick-up and Disconnect

17
5. MECHA ASSY
Proceeding : CABINET TOP
→
Loader Panel
→
MECHA ASSY

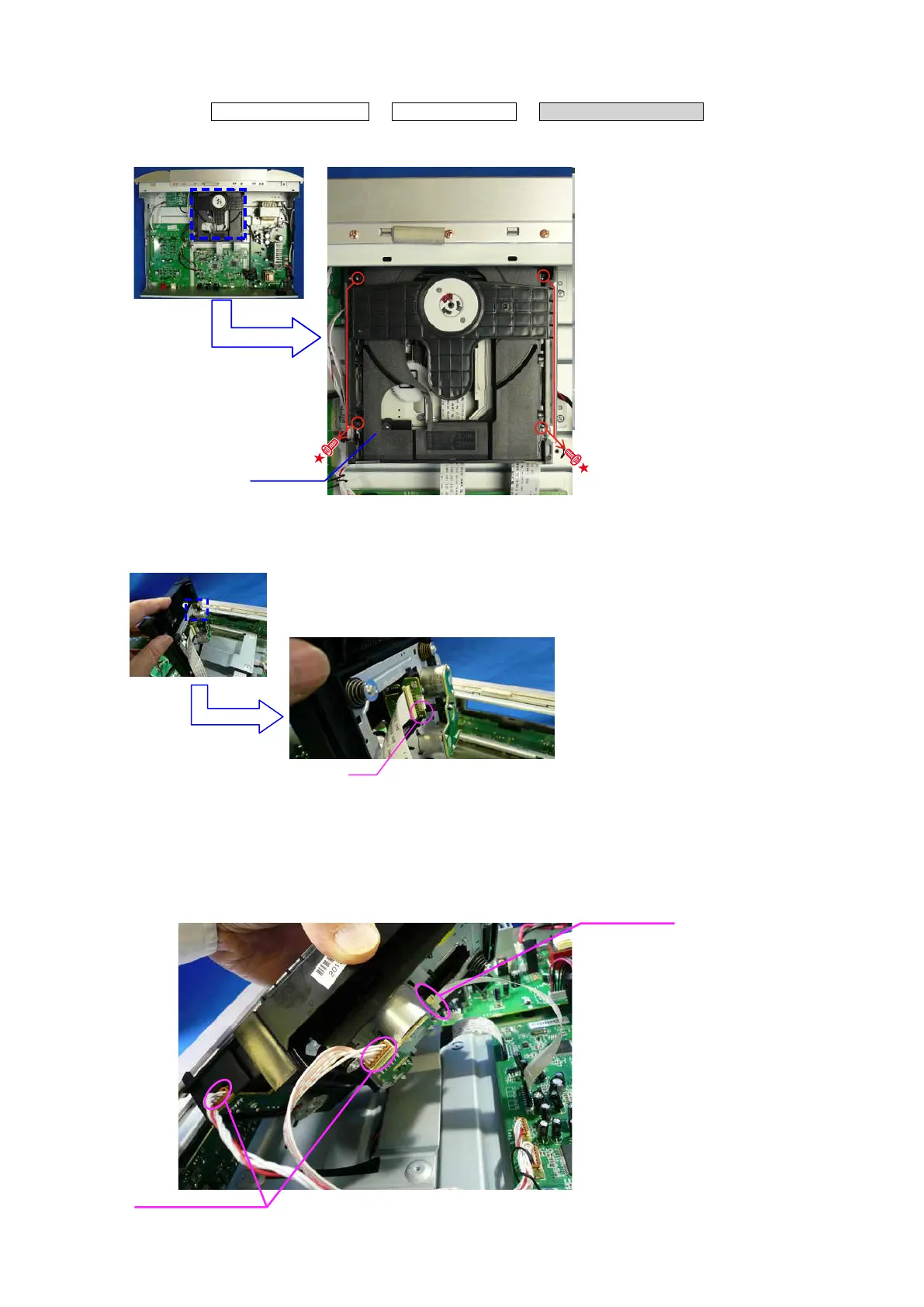

(1) Remove the screws.
(2) Laser short-circuit in Pick-up of CD MECHANISM ASS'Y, then disconnect the connector wires and FFC cable.
Be sure to wear a grounding band.
(3) Disconnect the connector wire and FFC.
MECHA ASSY
Short
Connector wire
FFC Cable
