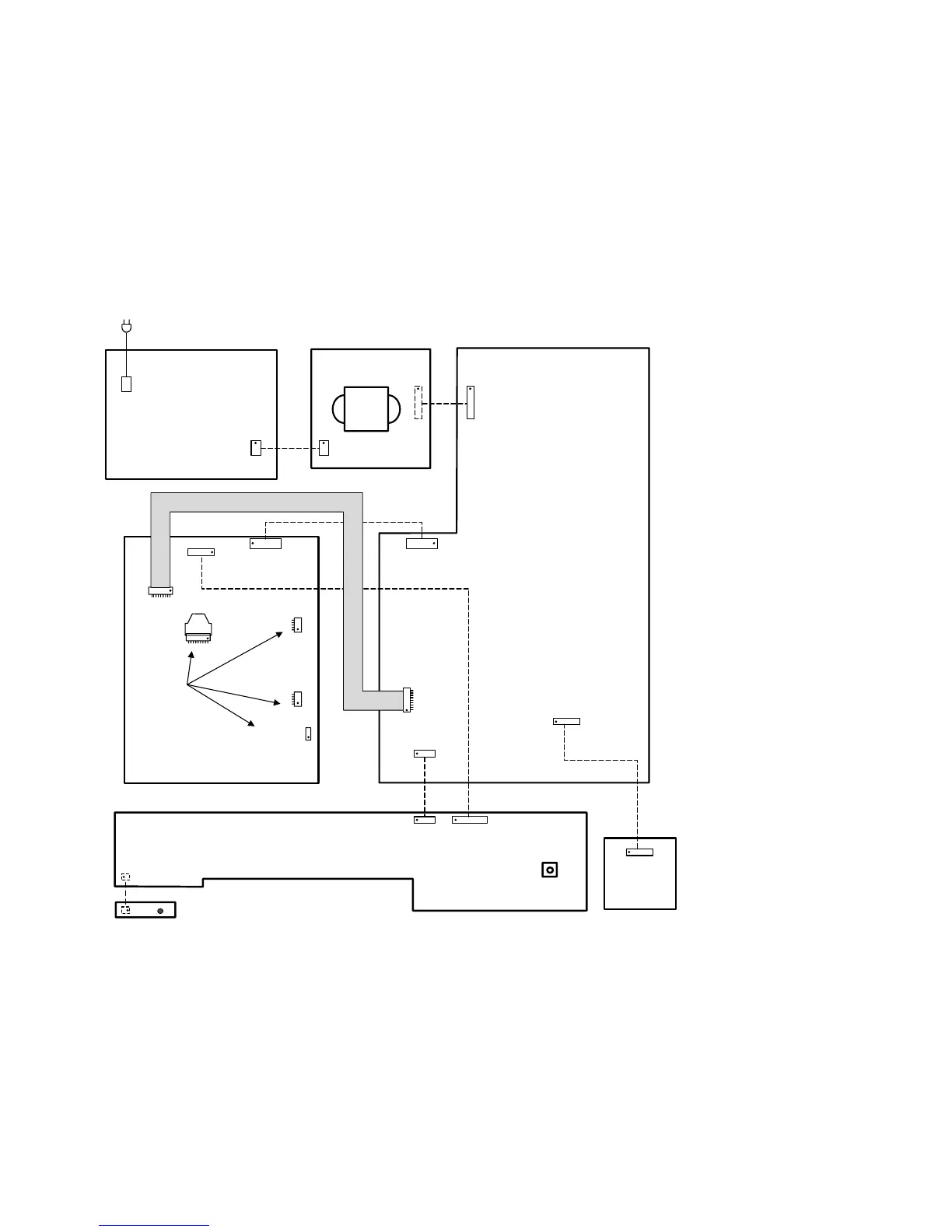

8. WIRING DIAGRAM
J810
11
1
JF54
1 6
JH01
JH04
1
2
CDR MAIN BOARD
7
1
J902
WY03
WY03
WY02 JY01
Connections delivered
with CDR-loader assy
Cable connected
to tray switch and
tray motor
I/O BOARD PP16
1820
130
1500
11
F934
110
1000
1220
1330
1200
1
10
1
11
Flex connected
to CDM
Flex connected
to sledge motor
Flex connected
to turn table motor
1
4
130
1
POWER SW BOARD PH16
HEADPHONE
BOARD P916
1 1610
1
12
2
W901
W802
WY03
J801
1
10
W801
1
10
JH06
1
2
POWER TRANSFORMER
BOARD PH26
7
1
J903
1
30
JJ01
WY02
WY01
8003
8003
WH04
W001
STAND-BY
BOARD PY26
DISPLAY BOARD PY16
WH04
1 COLD
2 HOT
W801
1 12VA
2 GND
3 12VA
4 12VD
5 GND
6 12VA
7 5VD
8 5VD
9FR
10 FR
W802
1 -8V
2 +12V
3 GND
4 GND
5 GND
6 +5VD
7 +5VD
8 GND
9 DC1
10 VFTD
11 DC2
W901
1 LCH
2 GND
3 RCH
4 -12V
5 GND
6 +12V
7 MUTE
WY01
1 VDC2
2 VFTD
3 VDC1
4 SYS- RESET
5 IIC- DATA
6 GND
7 IIC- CLK
8 DISPL- INT
9 GND
10 +5VD
WY02
1 RC-5 OUT
2 RC-5 IN
3 STAND-BY
4 IIC-CLK
5 IIC-DATA
6 RESET
WY03
1 STAND-BY
2 GND
8003 ( at conn. JJ01 of I/O Board )
1 GND
2 SYS-CLOCK
3 CD/HP
4 GND
5 IIS-WS-A0
6 IIS-BCK-A0
7 GND
8 IIS-DATA-A0
9 IIS-WS-A1
10 GND
11 IIS-BCK-A1
12 IIS-DATA-A1
13 -5VD
14 PST3
15 HDCD
16 LEVEL-A0
17 LEVEL-A1
18 LEVEL-A2
19 IDSP-COPY
20 N MUTE
21 DEEM-A0
22 KILL-OUT
23 EBU-PROF
24 GND
25 DIG-IN1
26 DIG\IN2
27 GND
28 DIG-OUT
29 OPT-IN
30 GND
