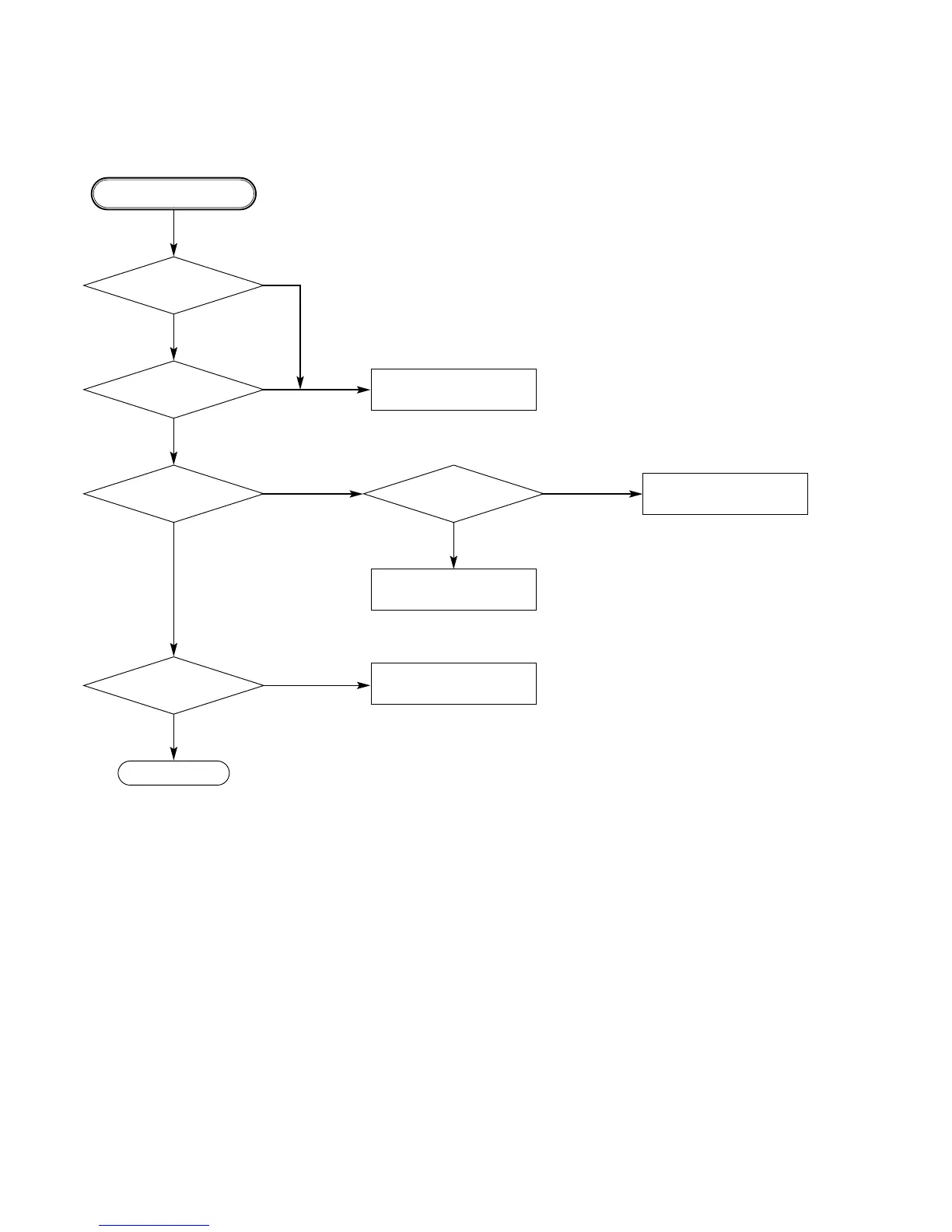

Marantz DV4200 - RF;Servo Circuit Troubleshooting Flowchart

18
Does signal pulse
input to IC201 Pins 58, 59 when
the powe is on?
Does signal goes
"High" to IC201 Pin194 when the
power is on?
Does
TTL pulse output to
IC201 Pins 140, 142?
Does
33.8688MHz clock input
to IC201 Pin 63?
Is IC201
Pins 83, 84, 88, 89 voltage
about 2.2V?
Replace IC201
Check power circuit.
Check "9.2 µ-COM Circuit".
Replace X201 or IC206
(30MHz clock defect)
CHECK POINT(General)
A.
END
NO
NO
NO NO
NO
YES
YES
YESYES
YES
9.5 RF/Servo Circuit
