EXPLODED VIEW

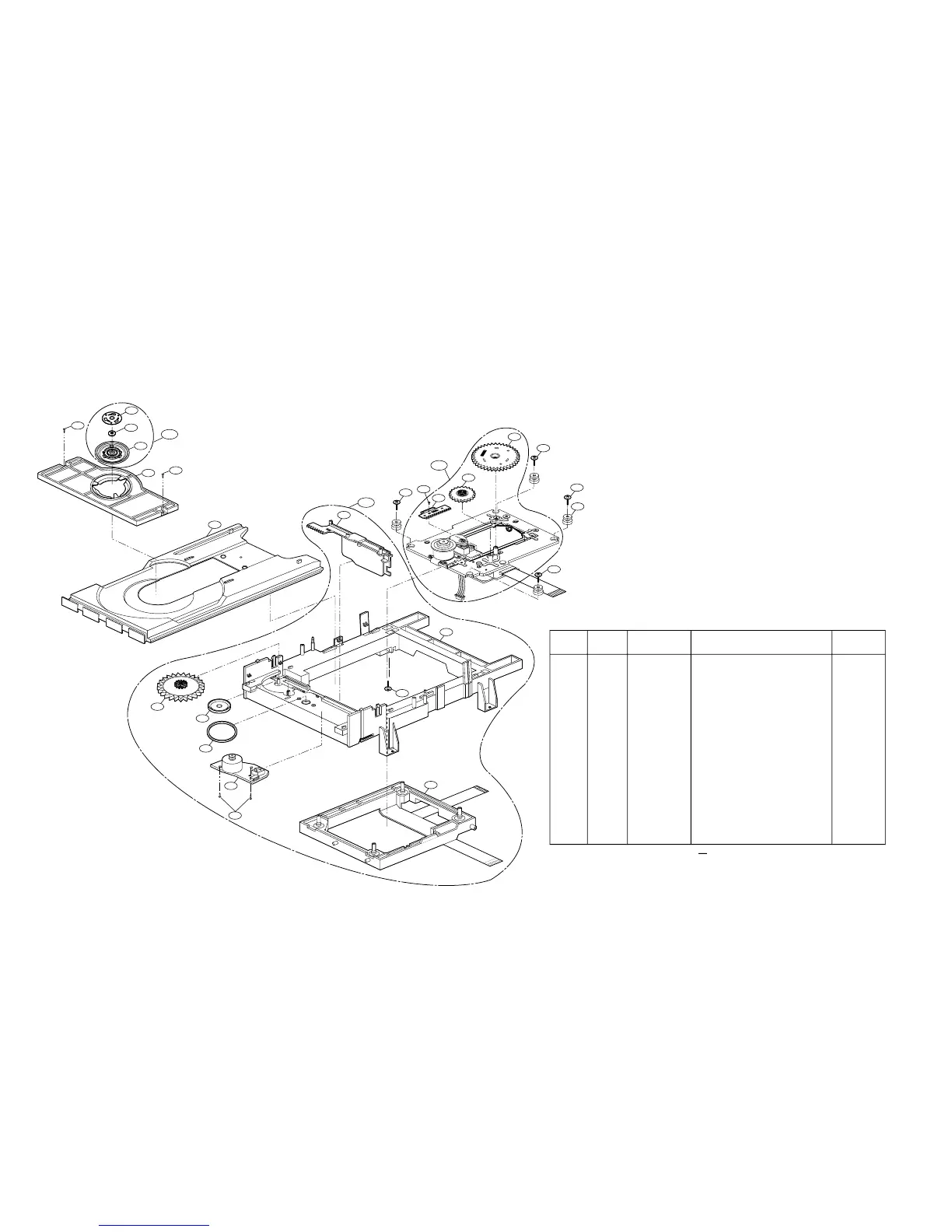

1. Deck Mechanism Exploded View and Parts list
002
001
003
004
429
429
026
018
008
009
016
012
430
430
430
432
020
430
011
017
014
013
015
431
A01
A02
A03
430
POS.
NO.
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
A01 9965 000 11304 CLAMP ASSY DISC (DP4) 344W005510
A02 9965 000 11305 BASE ASSY MAIN(DP-4RM,BLDC)-SH 344W401510
A03 9965 000 11306 BASE ASSY SLED(DP-4RM,BLDC)-SH 344W304510
001 nsp PLATE CLAMP nsp
002 nsp MAGNET CLAMP nsp
003 nsp CLAMP UPPER nsp
004 9965 000 06937 HOLDER CLAMP 304W271010
008 9965 000 06938 GEAR ASSY RACK 304W058010
009 9965 000 06939 GEAR MIDDLE 304W058020
011 nsp FRAME ASSY UP/DOWN(DP2,RW)-SH nsp
012 9965 000 11307 DAMPER RUBBER 344W259010
013 9965 000 06944 BELT LOADING 304W264010
014 9965 000 06945 GEAR PULLEY 304W262010
015 9965 000 11308 PWB(PCB) ASSY DP-4 LOADING -SH *ZZ001830R
016 9965 000 06947 GEAR ASSY FEED 304W058030
017 9965 000 06948 GEAR LOADING 304W058040
018 9965 000 06949 GUIDE UP/DOWN 304W127010
020 nsp BASE MAIN nsp
026 9965 000 06950 TRAY DISC 304W163010
429 nsp SCREW, B-TITE nsp
430 nsp SCREW, + D2.0 6MM /NIY 4.5MM nsp
431 nsp SCREW, + D2.0 6MM /ZNBK 4MM 1 nsp
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
