December 6, 2007
LM94022/LM94022Q
1.5V, SC70, Multi-Gain Analog Temperature Sensor with
Class-AB Output
General Description
The LM94022 is a precision analog output CMOS integrated-
circuit temperature sensor that operates at a supply voltage
as low as 1.5 Volts. A class-AB output structure gives the
LM94022 strong output source and sink current capability for
driving heavy loads. For example, it is well suited to source
the input of a sample-and-hold analog-to-digital converter
with its transient load requirements. While operating over the
wide temperature range of −50°C to +150°C, the LM94022
delivers an output voltage that is inversely porportional to
measured temperature. The LM94022's low supply current
makes it ideal for battery-powered systems as well as general
temperature sensing applications.
Two logic inputs, Gain Select 1 (GS1) and Gain Select 0
(GS0), select the gain of the temperature-to-voltage output
transfer function. Four slopes are selectable: −5.5 mV/°C,
−8.2 mV/°C, −10.9 mV/°C, and −13.6 mV/°C. In the lowest
gain configuration (GS1 and GS0 both tied low), the LM94022
can operate with a 1.5V supply while measuring temperature
over the full −50°C to +150°C operating range. Tying both
inputs high causes the transfer function to have the largest
gain of −13.6 mV/°C for maximum temperature sensitivity.
The gain-select inputs can be tied directly to V
DD
or Ground
without any pull-up or pull-down resistors, reducing compo-
nent count and board area. These inputs can also be driven
by logic signals allowing the system to optimize the gain dur-
ing operation or system diagnostics.
Applications
႑
Cell phones
႑
Wireless Transceivers
႑
Battery Management
႑
Automotive
႑
Disk Drives
႑
Games
႑
Appliances
Features
႑
LM94022Q is AEC-Q100 Grade 0 qualified and is
manufactured on an Automotive Grade Flow.
႑
Low 1.5V operation
႑
Push-pull output with 50µA source current capability
႑
Four selectable gains
႑
Very accurate over wide temperature range of −50°C to
+150°C
႑
Low quiescent current
႑
Output is short-circuit protected
႑
Extremely small SC70 package
႑
Footprint compatible with the industry-standard LM20
temperature sensor
Key Specifications
႑ಗSupply Voltage
1.5V to 5.5V
႑ Supply Current
˩A (typ)
႑ Output Drive
s˩A
႑ಗTemperature
Accuracy
20°C to 40°C
-50°C to 70°C
-50°C to 90°C
-50°C to 150°C
±1.5°C
±1.8°C
±2.1°C
±2.7°C
႑ಗOperating
Temperature −50°C to 150°C

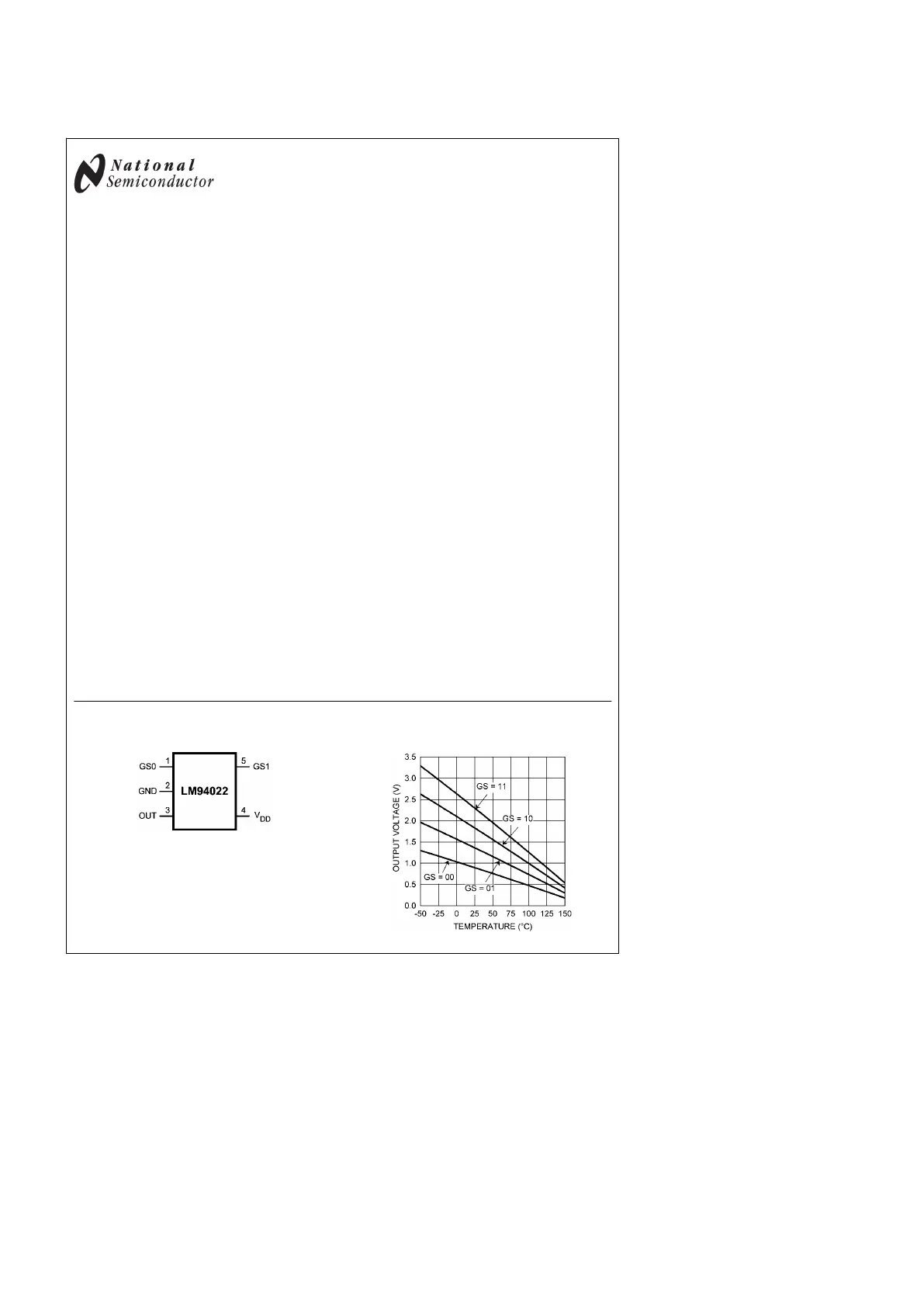

Connection Diagram
SC70-5
20143001
Top View
See NS Package Number MAA05A
Typical Transfer Characteristic
Output Voltage vs Temperature
20143024
© 2007 National Semiconductor Corporation 201430 www.national.com
