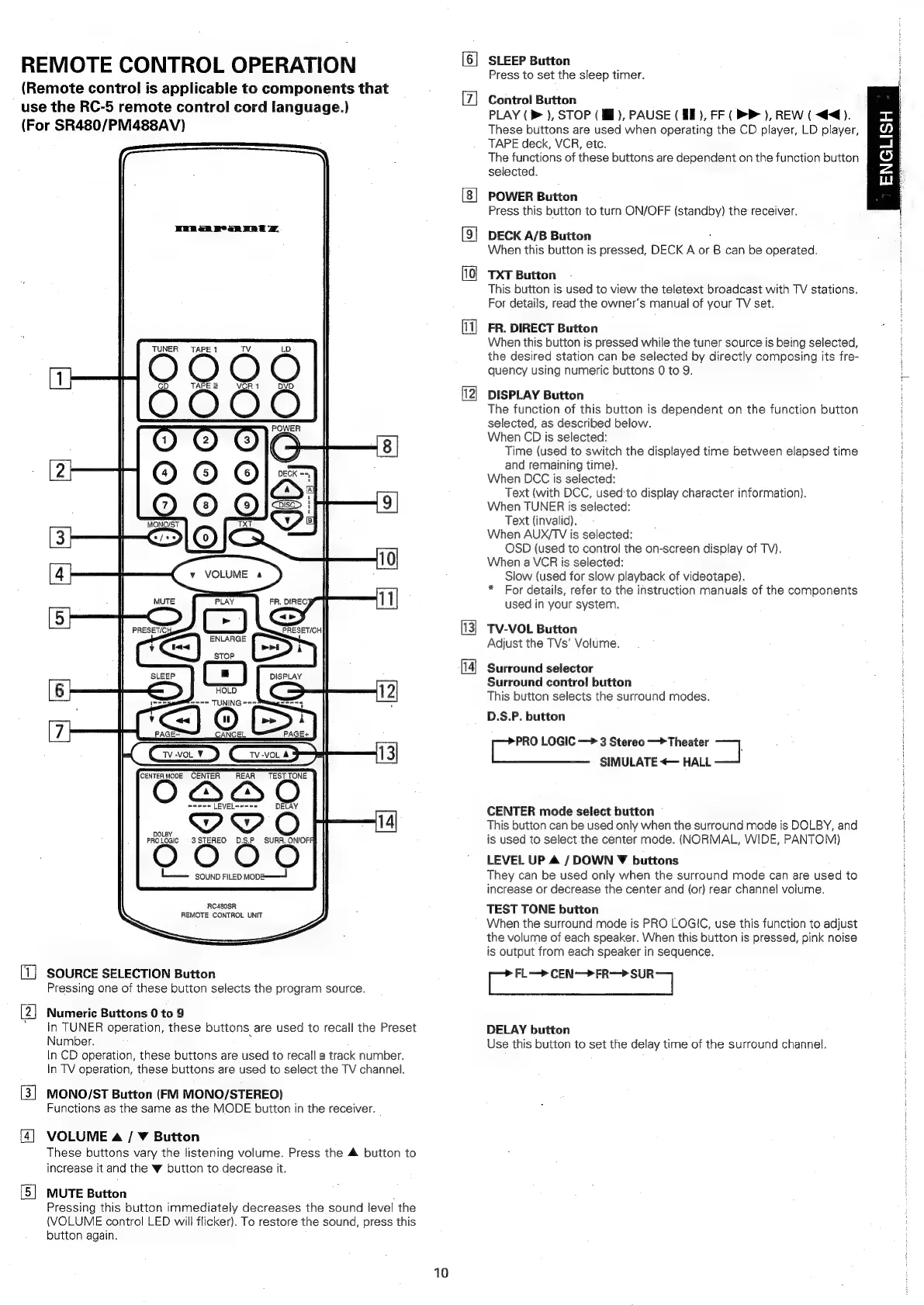

REMOTE CONTROL OPERATION
(Remote control is applicable to components that
use the RC-5 remote control cord language.)
(For SR480/PM488AV)
Nem es Bean ERE Z.
4 UNER
O O: O: O:
cD TAPE 2 VCR 1 DVD
POWER
1 2 3 8
2-H © © Ol
aS:
© © O|Sht—
MONO/ST TXT YY B
a+ Slo
10
4 vy VOLUME 4
MUTE PLAY FR. DIREC 11
a Tile
PRESET/C| PRESET/CH
ENLARGE
QS
STOP
SLEEP CC) DISPLAY
6 HOLD 12
; 5 ~~ TUNING -->, =i ,
‘= ©
7 PAGE CANCEL PAGE
Tew B
CENTERMODE CENTER REAR TEST TONE
O HS DELAY
VOU O 14
RC480SR
REMOTE CONTROL UNIT
SOURCE SELECTION Button
Pressing one of these button selects the program source.
Numeric Buttons 0 to 9
In TUNER operation, these buttons are used to recall the Preset
Number. 7
In CD operation, these buttons are used to recall a track number.
In TV operation, these buttons are used to select the TV channel.
MONO/ST Button (FM MONO/STEREO)
Functions as the same as the MODE button in the receiver.
VOLUME a / V Button
These buttons vary the listening volume. Press the & button to
increase it and the W button to decrease it.
MUTE Button .
Pressing this button immediately decreases the sound level the
(VOLUME control LED will flicker). To restore the sound, press this
button again.
10
[6]
SLEEP Button
Press to set the sleep timer.
Control Button
PLAY ( ® ), STOP (MM), PAUSE ( HI), FF ( > ), REW ( <4).
These buttons are used when operating the CD player, LD player,
TAPE deck, VCR, etc.
The functions of these buttons are dependent on the function button
selected.
POWER Button
Press this button to turn ON/OFF (standby) the receiver.
DECK A/B Button :
When this button is pressed, DECK A or B can be operated.
TXT Button
This button is used to view the teletext broadcast with TV stations.
For details, read the owner's manual of your TV set.
FR. DIRECT Button
When this button is pressed while the tuner source is being selected,
the desired station can be selected by directly composing its fre-
quency using numeric buttons 0 to 9.
DISPLAY Button
The function of this button is dependent on the function button
selected, as described below.
When CD is selected:
Time (used to switch the displayed time between elapsed time
and remaining time).
When DCC is selected:
Text (with DCC, used:to display character information).
When TUNER is selected:
Text (invalid).
When AUX/TV is selected:
OSD (used to control the on-screen display of TV).
When a VCR is selected:
Slow (used for slow playback of videotape).
* For details, refer to the instruction manuals of the components
used in your system.
TV-VOL Button
Adjust the TVs’ Volume.
Surround selector
Surround contro! button
This button selects the surround modes.
D.S.P. button
Po LOGIC —> 3 Stereo —> Theater ~I
SIMULATE <— HALL
CENTER mode select button
This button can be used only when the surround mode is DOLBY, and
is used to select the center mode. (NORMAL, WIDE, PANTOM)
LEVEL UP A / DOWN Y buttons
They can be used only when the surround mode can are used to
increase or decrease the center and (or) rear channel volume.
TEST TONE button
When the surround mode is PRO LOGIC, use this function to adjust
the volume of each speaker. When this button is pressed, pink noise
is output from each speaker in sequence.
ee oe
DELAY button
Use this button to set the delay time of the surround channel.
