Marantz PM488AV - TECHNICAL SPECIFICATIONS; Tuner, Audio, Video, and General Specs

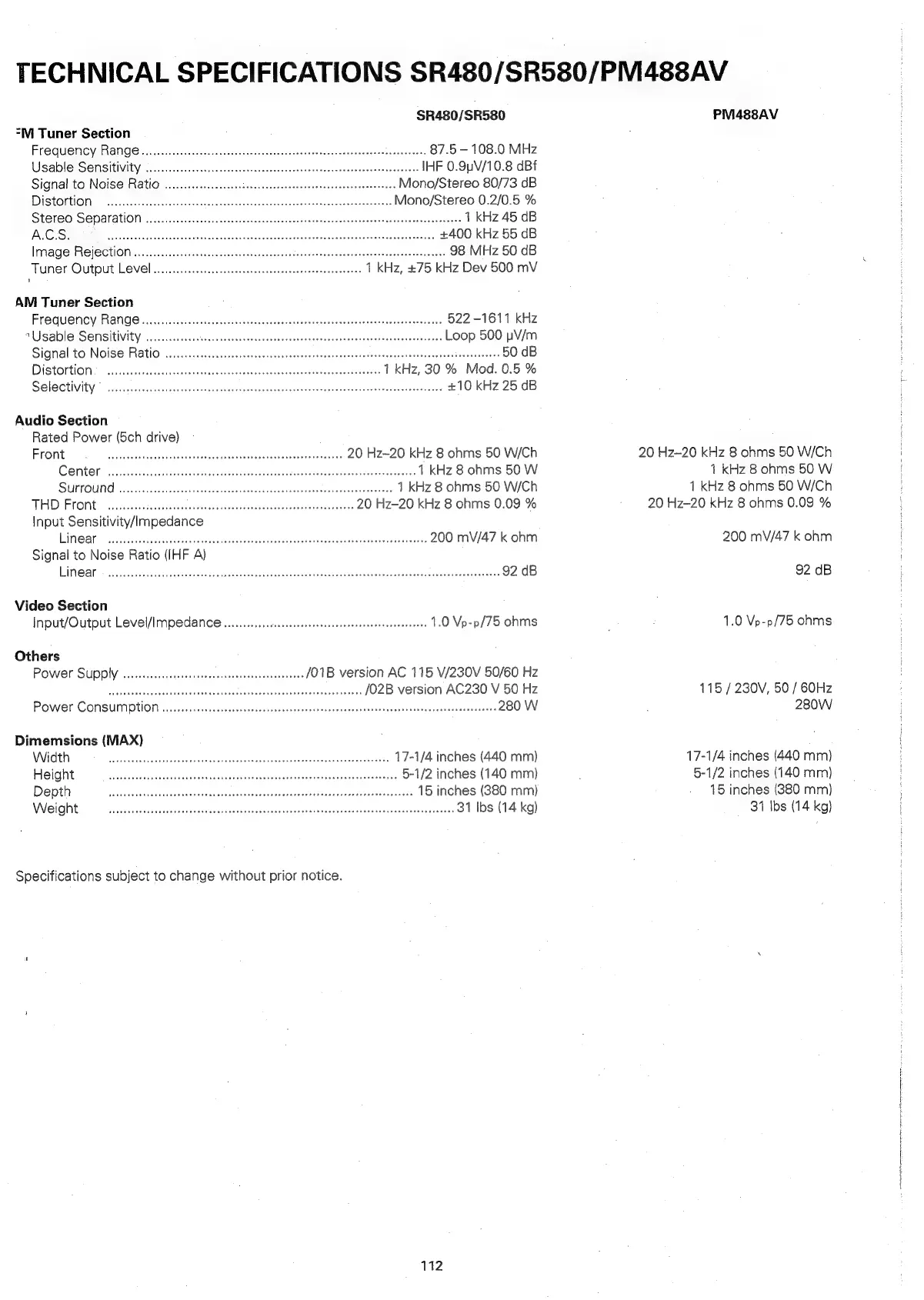

TECHNICAL SPECIFICATIONS SR480/SR580/PM488AV
$SR480/SR580
=-M Tuner Section
Frequency Range cite: :cccc eee nt hese Ma bc eeed etapa heed taca ae 87.5 — 108.0 MHz
WSablé Sensitivity jie. ccecede nS assed iw a eerasecnessteeteies IHF 0.9uV/10.8 dBf
Signal to NOISE: Ratio. <y.ecee-sesSscseeyets seconds ezabiseseonctasvacevvocesteces Mono/Stereo 80/73 dB
DISTOMLION. ~cenactiwatee ieiecir Act te aie el eee eee Mono/Stereo 0.2/0.5 %
Stereo Separation. ..2chsccec coast stesiegeecttsides ata devet desea ttetebcemaeattventyy 1 kHz 45 dB
NiGSs °°» ekestaci a uetnstek ete Gil dnsdia alah +400 kHz 55 dB
IMaGe. Relectionsi 2 icici aed ashiau deanna hae dae 98 MHz 50 dB
Tuner Output LEVEl oo... ec eetececeseneerteeeereeeteeeentenea 1 kHz, +75 kHz Dev 500 mV
AM Tuner Section
Frequency. Range sss. victsveaatcuvzeustes lesz evehieia gh oicaecbesvianewoimenetatae 522 -1611 kHz
“WI SADIS:SONSILIVILY ssacccsccashet loceavasnavecdkedvesncndine soos oanpeapsvedveneipessepeveeotds Loop 500 pV/m
Signal to: NOIS@:RAtIO Ns esecsccnsccexseves og Sicechwee sh davewlsveetadubendegeysatvavatessnneacteadeunes as 50 dB
DISTOPLION > 0. cé.cicidsedleigecotacbedd desdeeritecethens faseegeh ate dats cates 1 kHz, 30 % Mod. 0.5 %
SGISCTIVIEY: = ccceesete is by he Restos okans ice steaiais edeactiveh ieee teas beeeaes tate +10 kHz 25 dB
Audio Section
Rated Power (5ch drive)
FPO? 6 wticAdnudslons aba aehstigitiaitidioteeties 20 Hz~20 kHz 8 ohms 50 W/Ch
CONTE fb Hlecenetuateeteccstitenhsbasthectcas teste destesacteh cane seatss edbeaahvases 1 kHz 8 ohms 50 W
SUMOUNG 2 oie Sie caes. te Pa aicleczeter Ye MA 1 kHz 8 ohms 50 W/Ch
THD: Bronte sane Sh cake vie tetteaectoneeeetecesiee rises 20 Hz-20 kHz 8 ohms 0.09 %
Input Sensitivity/Impedance
LING ar As siwniee iene hniis ain a tea 200 mV/47 k ohm
Signal to Noise Ratio (IHF A)
LITO OM « ccoesh devia sues save asn Ped Daceeccueabesdegartdwenecasotevbihdeyanestoes sdedeth coapevsteoeaecaane cd 92 dB
Video Section
Input/Output Level/IMpedance occ eeeeceseereeereceterseetsesseneieees 1.0 Vp-p/75 ohms
Others
POWOl SUBDIVsieiccdvetecesveredanctteechetsecushecsepennes /01B version AC 115 V/230V 50/60 Hz
si pnvtevdshestar tad uniwgnbigen tes Ubew whee teach uheapte oSeehablecee /02B version AC230 V 50 Hz
POWER CONSUMPTION isccc5 Seedetcccnscdedss.cesuatvosdeceertativedentersonk deulbevs Vusestieetwireaed 280 W
Dimemsions (MAX)
WIA soe pied arte Sabaeeed ey ainthabicen aeeeh decd ap dddeesanstennsdaceeaedt 17-1/4 inches (440 mm)
HIGIGHt, _ aries vad ettatinvtncestivaad hatin Goneenieiereietes detected cg 5-1/2 inches (140 mm)
Depth, - cvthercraadcseads eee ai ot ei atiaand teste eptieg Gates 15 inches (380 mm)
Weight. .stiidditeit ine atn tan einen iat atlanta ay 31 Ibs (14 kg)
Specifications subject to change without prior notice.
112
PM488AV
20 Hz~20 kHz 8 ohms 50 W/Ch
1 kHz 8 ohms 50 W
1 kHz 8 ohms 50 W/Ch
20 Hz-20 kHz 8 ohms 0.09 %
200 mV/47 k ohm
92 dB
1.0 Vp-p/75 ohms
115 / 230V, 50 / 6OHz
280W
17-1/4 inches (440 mm)
5-1/2 inches (140 mm)
15 inches (880 mm)
31 lbs (14 kg)
