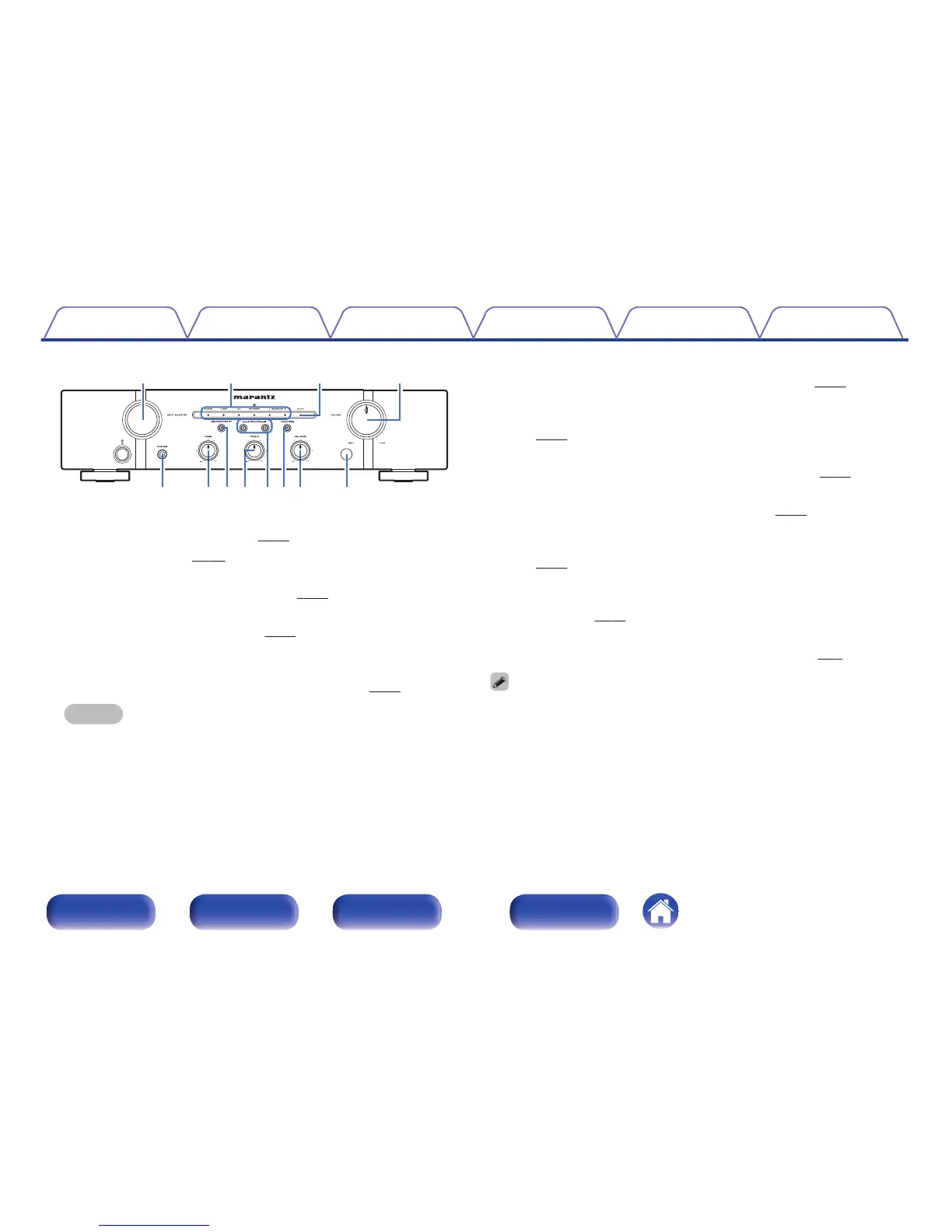

Input source select knob (INPUT SELECTOR)
This selects the input source. (v
p. 26)
D
Input indicators (v p. 26)
E
MUTE indicator
This lights while the sound is muted. (v p. 26)
F
VOLUME knob
These adjust the volume level. (v
p. 26)
G
Headphones jack (PHONES)
Used to connect headphones.
Turn off speaker output when using headphones. (v p. 26)
NOTE
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
H
BASS control knob
This setting adjusts the volume level for the bass. (v
p. 26)
I
SOURCE DIRECT button/indicator
This turns SOURCE DIRECT mode on/off.
(v
p. 27)
J
TREBLE control knob
This setting adjusts the volume level for the treble. (v
p. 26)
K
Speaker switching buttons/indicators (SPEAKERS A/B)
These select the speaker for audio output. (v
p. 26)
L
LOUDNESS button/indicator
This turns the LOUDNESS mode on/off.
(v p. 27)
M
BALANCE control knob
This adjusts the balance of the volume output from the left and right
speakers. (v
p. 26)
N
Remote control sensor
This receives signals from the remote control unit. (v p. 5)
8, 0, b and c can be adjusted when 9 is off (SOURCE DIRECT mode is off).
Contents Connections Playback Settings Tips Appendix
9
Front panel Rear panel
Remote control
unit
Index

Marantz PM5005 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	10 - 50000 Hz
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	40 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.05 %
Dynamic power per channel (4 Ohm)	60 W
Dynamic power per channel (8 Ohm)	45 W
RMS power output per channel (4 Ohm)	55 W
AC (power) in	Yes
Audio (L/R) in	6
Audio (L/R) out	2
Headphone outputs	1
Purpose	Home
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	110 W

Weight and Dimensions

Depth	370 mm
Width	440 mm
Height	105 mm
Weight	6700 g
