Marantz PM5005 - Rear Panel Connections

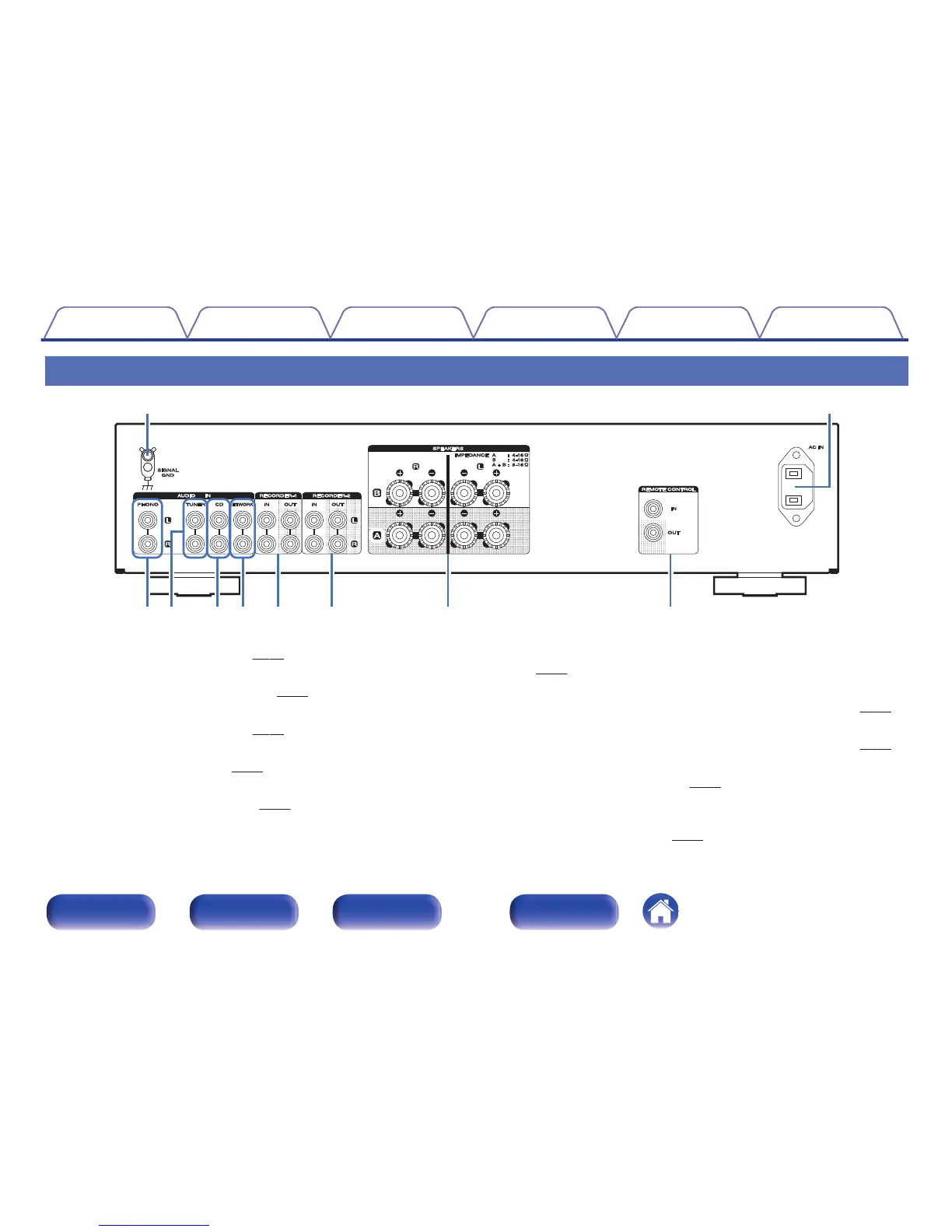

Rear panel
.
oitre Q
0
q w
y u
A
SIGNAL GND jacks
Used to connect a turntable. (v
p. 20)
B
AC inlet (AC IN)
Used to connect the power cord. (v p. 23)
C
Turntable input connectors (PHONO)
Used to connect a turntable. (v
p. 20)
D
Tuner input connectors (TUNER)
Used to connect a tuner. (v
p. 20)
E
CD input connectors
Used to connect a CD player. (v
p. 20)
F
Network audio player input connectors (NETWORK)
Used to connect a network audio player.
(v p. 20)
G
Recorder input/output connectors (RECORDER 1)
Used to connect the input/output connector of a recorder. (v
p. 21)
H
Recorder input/output connectors (RECORDER 2)
Used to connect the input/output connector of a recorder. (v
p. 21)
I
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 17)
J
Remote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the
remote control function. (v
p. 22)
