Marantz PM6005 Service Manual

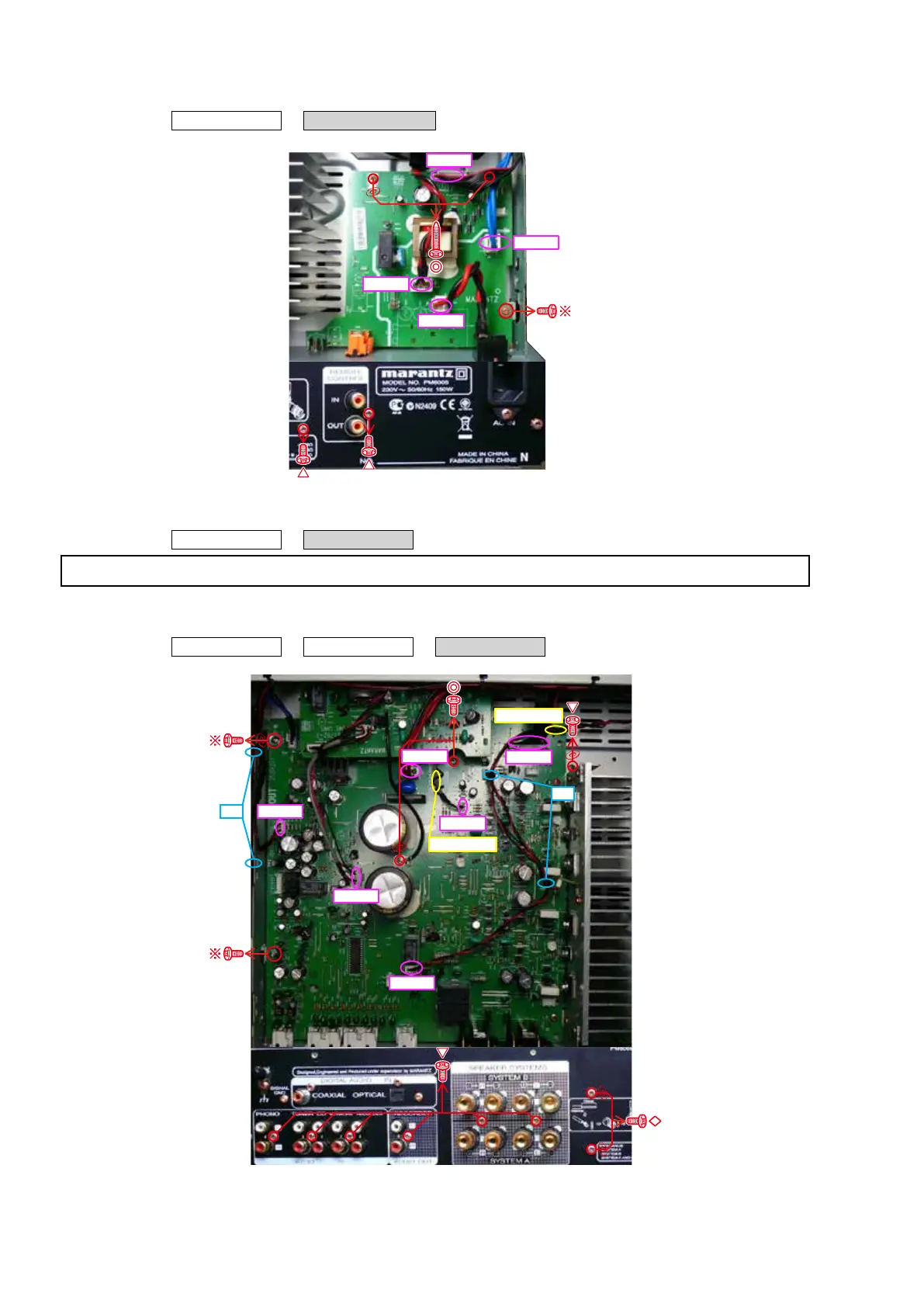

3. STANDBY PWB
Proceeding : TOP COVER
→
STANDBY PWB
(1) Remove the screws. Disconnect the connector wires.
4. POWER TRANS
Proceeding : TOP COVER
→
POWER TRANS
5. MAIN ASSY
Proceeding : TOP COVER
→
DIGTAL ASSY
→
MAIN ASSY
(1) Cut the wire clamp band, then remove the style pin and screws. Disconnect the connector wires.
N8502
N8504
N8501
N8503
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in POWER TRANS.
N7501
N3002
N6001
N3001
N8001
N8303
cut
cut
STYLE PIN
STYLE PIN
14

Marantz PM6005 Specifications

General

Amplifier class	-
Frequency range	10 - 70000 Hz
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	60 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (8 Ohm)	45 W
AC (power) in	Yes
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Connectivity technology	Wired
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	155 W

Weight and Dimensions

Depth	370 mm
Width	440 mm
Height	105 mm
Weight	7600 g
