Marantz PM6005 Service Manual

• RMS Power output
(20 Hz – 20 kHz simultaneous drive of both channels) :
45 W x 2 (8 Ω/ohms load)
60 W x 2 (4 Ω/ohms load)
• Total harmonic distortion
(20 Hz – 20 kHz simultaneous drive of both channels, 8 Ω/ohms load) :
0.08 %
• Output band width (8 Ω/ohms load, 0.06 %) :
10 Hz – 50 kHz
• Frequency response (CD, 1 W, 8 Ω/ohms load) :
10 Hz – 70 kHz +0 dB, –1 dB
• Dumping factor (8 Ω/ohms load, 40 Hz – 20 kHz) :
100
• Input sensitivity/Input impedance
PHONO (MM) :
2.2 mV/47 kΩ/kohms
CD, TUNER, NETWORK, RECORDER :
200 mV/20 kΩ/kohms
• Maximum allowable PHONO input level (1 kHz) MM :
100 mV
• RIAA deviation (20 Hz – 20 kHz) :
±1.0 dB
• S/N (IHF-A, 8 Ω/ohms load)
PHONO (MM) :
83 dB (5 mV input, 1 W output)
CD, TUNER, NETWORK, RECORDER :
102 dB (2 V input, Rated output)
• Tone control
Bass (50 Hz) :
±10 dB
Treble (15 kHz) :
±10 dB
• Digital input
Coaxial :
0.5 Vp-p
Optical :
–27 dBm or later
Power requirement (for U model) :
AC 120 V, 60 Hz
Power requirement (for N model) :
AC 230 V, 50/60 Hz
Power requirement (for K model) :
AC 220 V, 50 Hz
Power requirement (for F model) :
AC 100 V, 50/60 Hz
Power consumption :
155 W
Power consumption during standby :
0.3 W
Unit : in. (mm)
Weight : 7.6 kg
329
370
225
59
45
14
91
105
440
340
56
50
50
16 25
TECHNICAL SPECIFICATIONS

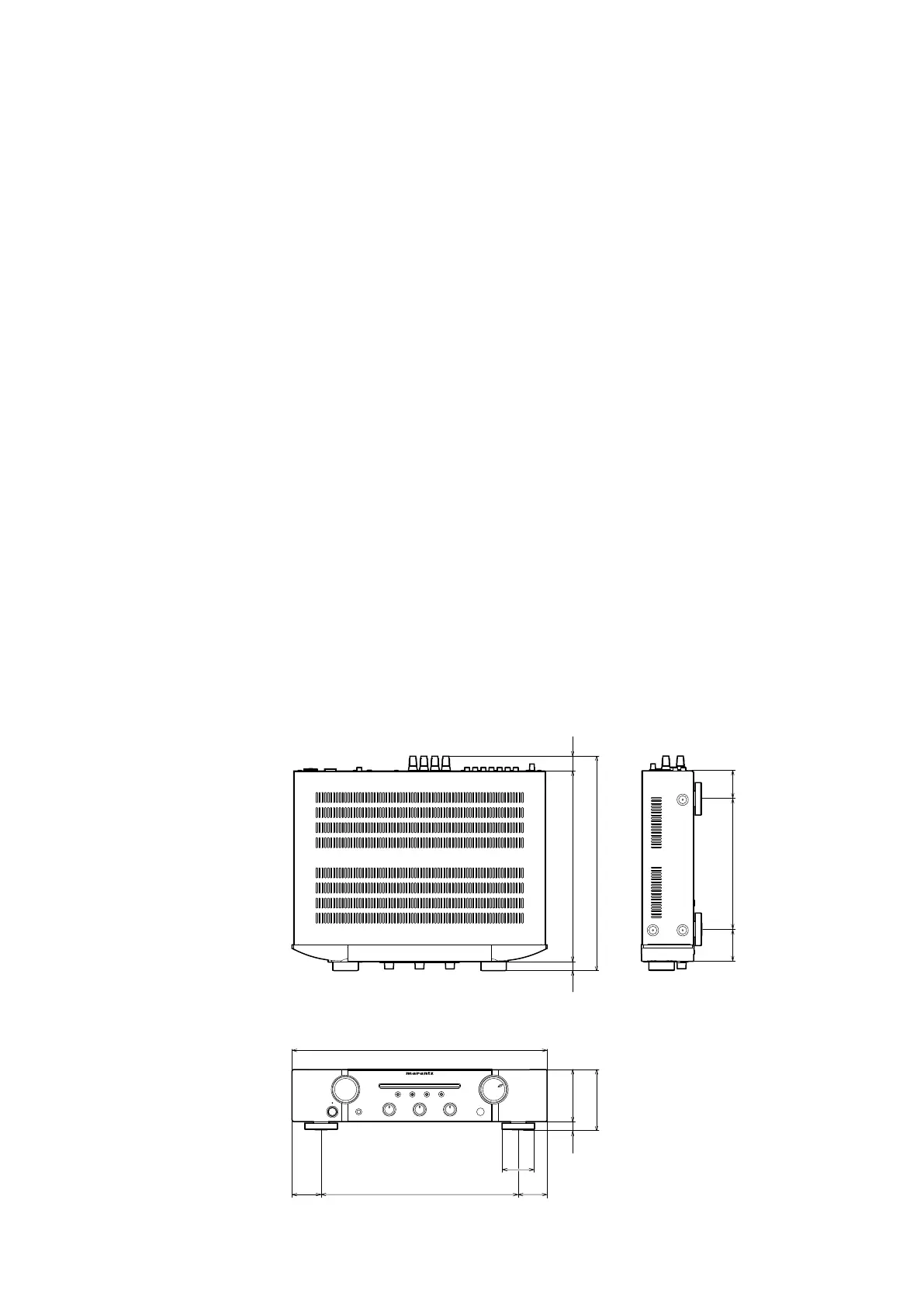

DIMENSION
9

Marantz PM6005 Specifications

General

Amplifier class	-
Frequency range	10 - 70000 Hz
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	60 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (8 Ohm)	45 W
AC (power) in	Yes
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Connectivity technology	Wired
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	155 W

Weight and Dimensions

Depth	370 mm
Width	440 mm
Height	105 mm
Weight	7600 g
