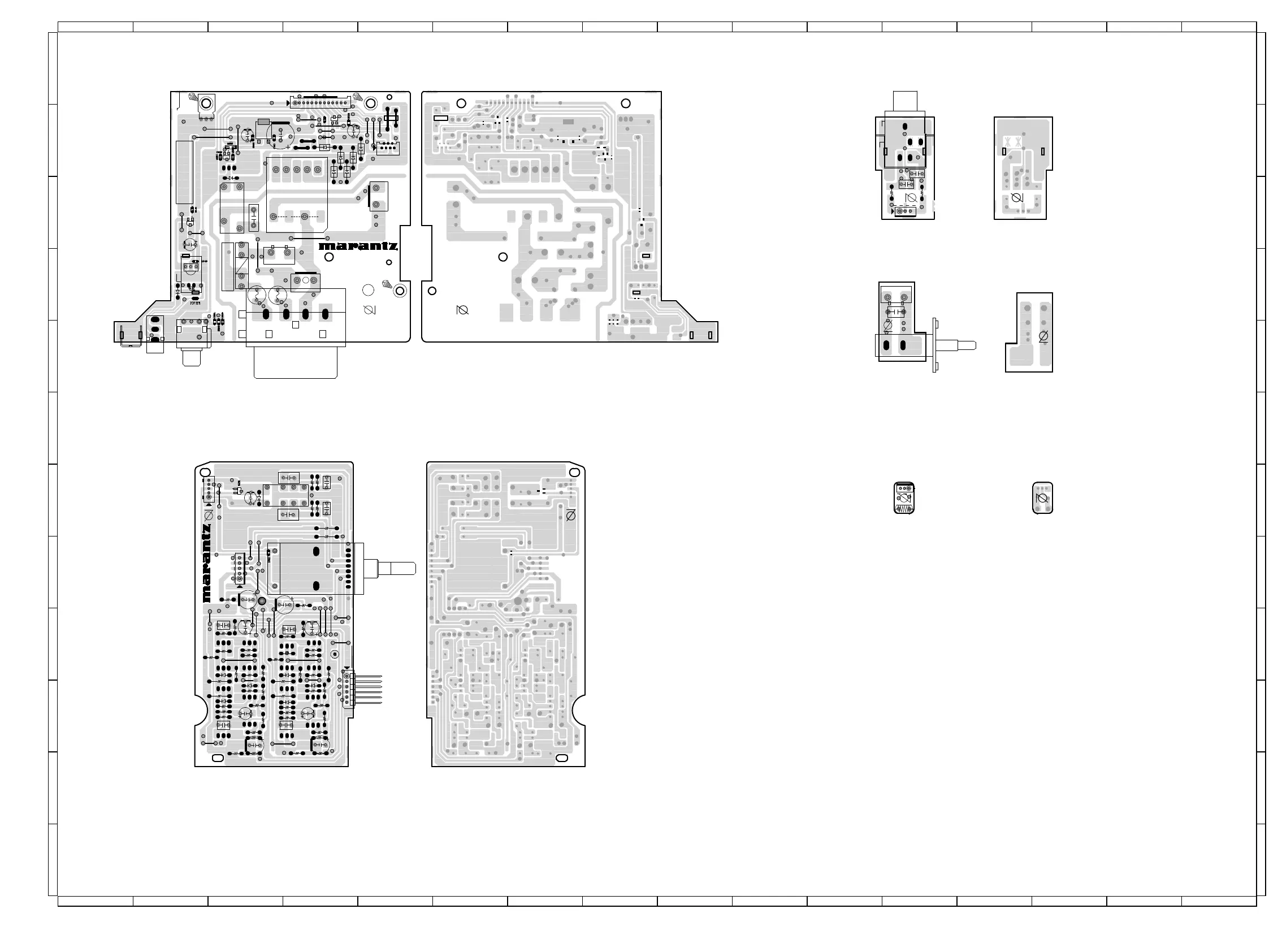

Marantz PM6005 Service Manual

STANDBY (B SIDE) HEADPHONE (B SIDE)
POWER SW (B SIDE)
POSISTER (B SIDE)
VOLUME (B SIDE)
STANDBY (A SIDE) HEADPHONE (A SIDE)
POWER SW (A SIDE)
POSISTER (A SIDE)
VOLUME (A SIDE)
Pb
R8702
R8504 C8507
C8508
C8702
R8701
Q8701
R8502
Q8502
R8505
D8509
C8510
C8505
U8501
Q8503
R8503
C8509
Pb
C5013
Q2501
Pb
Pb
Pb
STANDBY UNIT
B8502
(Sec.)
(Pri.)
Z8701
BAR CODE LABEL
Japan/USA:T3.15AL 250V
Europe/China:T1.6AL 250V
H8511
T5.0AL 250V
T5.0AL 250V
H8512
POW_RELAY
POW_DOWN
REMOTE 5V
POW_ON
RC5
+10V
D-GND
MCU_RST
TXD
RXD
BOTT0
BOTT1
CUP12579Z-1
Pb
LPP
(Pri.)
(Sec.)
K8701
K8501
K8601
R8501
C8506
D8702
D8701
U8701
C8701
C8502
F8610 F8620
F8510
N8503
N8501
S8501
Q8501
D8508
D8501
D8503
T8501
D8505
D8507
D8504
D8502
B8501
C8504
N8504
C8503
N8502
D8506
N8505
J8502
J8501
J8512
J8509
J8511
J8514
J8513
J8516
J8515
J8510
J8508
J8506
J8507
J8504
J8503
J8505
Pb
CUP12579Z-2
VOLUME UNIT
Q5015
Q5014
C5008
R5037
C5010
R5038
R5040
R5036
R5034
Q5016
Q5013
C5007
C5009
R5039
R5035
R5033
C5004
R5048
Q5002
R5020
R5030
R5032
R5024
Q5010
R5026
D5006
R5012
Q5006
D5002
R5008
R5006
Q5004
Q5011
R5013
R5009
C5005
R5028
C5006
Q5012
D5004
R5022
D5005
R5029
R5046
R5031
R5023
R5044
Q5009
R5019
R5025
Q5008
R5016
R5018
R5010
R5014
R5042
D5001
Q5005
R5011
R5007
Q5001
R5027
R5045
R5021
D5003
R5043
R5041
Q5007
R5017
R5015
Q5003
N5002
Z5001
C5011
R5004
C5002
C5012
R5005
C5003
B5001
B5002
V5001
R5047
R5003
C5001
N5001
C2504
C2505
D2501
S2501
R2502
R2504
R5001
R5002
C2502
C2501
C2503
R2503 R2501
J5020
J5021
J5005
J5015
J5018
J5016
J5019
J5017
J5008
J5007
J5006
J5010
J5009
J5004
J5012
J5013
J5011
J5014
J5001
J5002
J5003
H/P UNIT
CUP12579Z-3
Pb
R9901
C9902
B9901
C9901
R9902
K9901
Pb
CUP12579Z-4
POWER SW
C8901
S8901
B8901
Pb
T6501
B6501
31
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
A
B
C
D
E
F
G
H
J
K
L
M
A
B
C
D
E
F
G
H
J
K
L
M
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Marantz PM6005 Specifications

General

Amplifier class	-
Frequency range	10 - 70000 Hz
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	60 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (8 Ohm)	45 W
AC (power) in	Yes
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Connectivity technology	Wired
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	155 W

Weight and Dimensions

Depth	370 mm
Width	440 mm
Height	105 mm
Weight	7600 g
