Marantz PM6006 Service Manual

s
Online Parts List

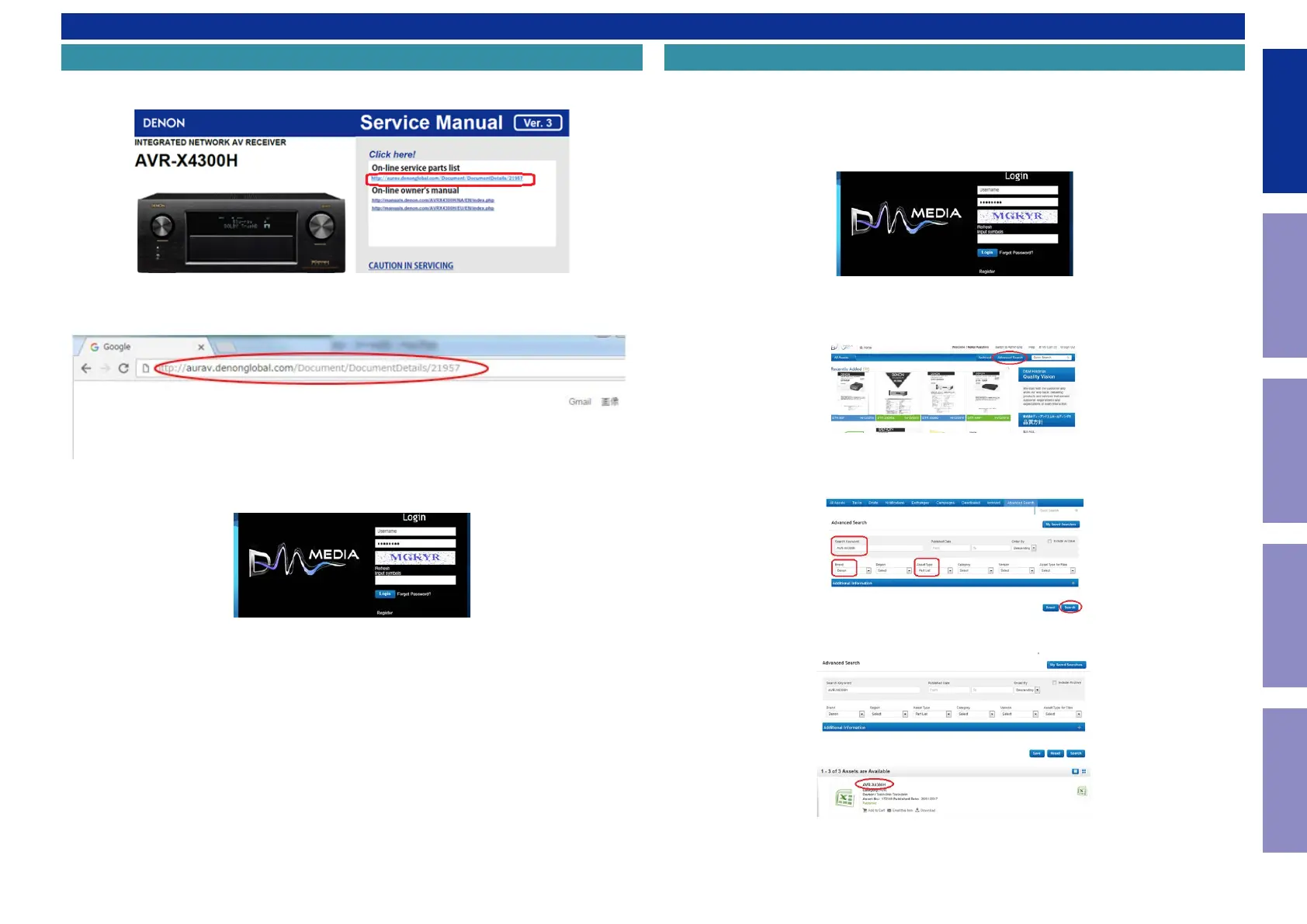

Accessing the Parts List Logging in to New SDI and Accessing the Parts List
(1) Click the URL link on the cover of the service manual.
Examples of display
NOTE : If the web browser does not open automatically, copy the URL and paste it into the address bar
of the web browser and then press Enter.
(2) When the login screen is displayed, enter your username and password.
(3) Enter the 5 letters shown as the blue CAPTCHA code as single-byte characters.
If the text is unclear, click "Refresh" to change the CAPTCHA code, and enter it again.
(4) Press the "Login" button.
(1) Access New SDI from the URL below.
<http://dmedia.dmglobal.com>
(2) When the login screen is displayed, enter your username and password.
(3) Enter the 5 letters shown as the blue CAPTCHA code as single-byte characters.
If the text is unclear, click "Refresh" to change the CAPTCHA code, and enter it again.
(4) Press the "Login" button.
(5) When the Home screen is displayed, click "Advanced Search".
(6) Enter the following search conditions and click "Search".
Keyword : Model name Brand : brand name Asset Type : Part list
(7) Click the model name when the search results are displayed.
5
Caution in
servicing
Electrical Mechanical Repair Information Updating

Marantz PM6006 Specifications

General

Amplifier class	-
Frequency range	10 - 70000 Hz
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	60 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (8 Ohm)	45 W
AC (power) in	Yes
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Remote control type	RC003PMCD
Connectivity technology	Wired
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	155 W

Weight and Dimensions

Depth	370 mm
Width	440 mm
Height	105 mm
Weight	7600 g
