Marantz PM6006 Service Manual

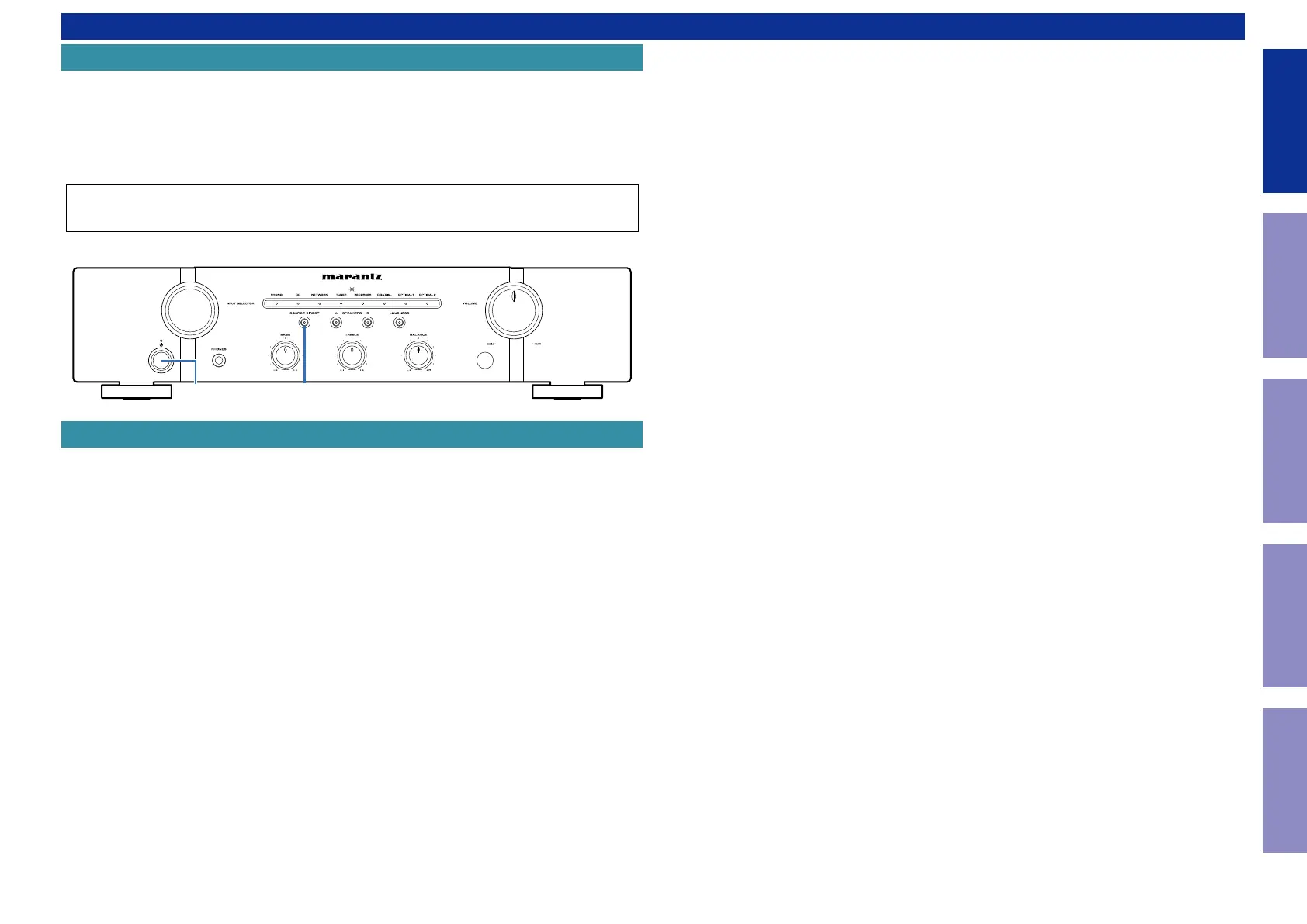

Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the
digital PCB.
1. Press the power button to turn off the power.
2. While holding down the "
SOURCE DIRECT
" button, press the power button to turn on the power.
3. Check the set entered the service mode.
(See 1. Service mode)
NOTE： • If the unit fails to enter the service mode in step 3, repeat the procedure from step 1.
• Initializing the device restores the customized settings to the factory settings. Write down
your settings in advance and recongure the settings after initialization.
The jig (RS-232C > product internal connector conversion board + 7P Cable Kit) used for rmware up-
dates is as shown below.
Order with your dealer for the jigs your dealer if necessary.
8U-210100S : WRITING KIT : 1 Set
606050028012P : 7P FFC (straight) : 1Set
(See FIRMWARE UPDATE PROCEDURE)
X
SOURCE
DIRECT
JIG FOR SERVICING
Initializing This Unit
CAUTION IN SERVICING.
8
Caution in
servicing
Electrical Mechanical Repair Information Updating

Marantz PM6006 Specifications

General

Amplifier class	-
Frequency range	10 - 70000 Hz
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	60 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.08 %
RMS power output per channel (8 Ohm)	45 W
AC (power) in	Yes
Audio (L/R) in	5
Audio (L/R) out	1
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Remote control type	RC003PMCD
Connectivity technology	Wired
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	155 W

Weight and Dimensions

Depth	370 mm
Width	440 mm
Height	105 mm
Weight	7600 g
