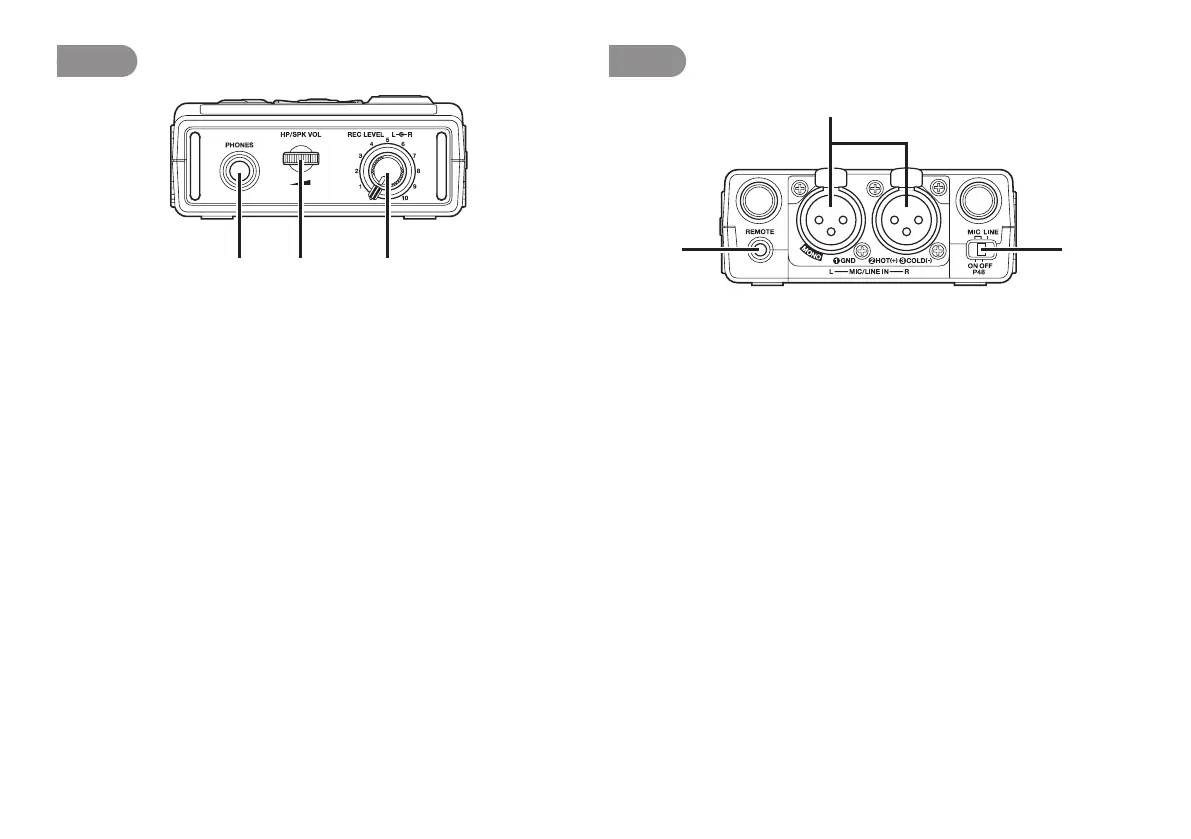

Front
qw e
q PHONES Jack
For monitoring and private listening, you can connect your
headphones to this jack.
w HP/SPK VOL Control
Use this to adjust the output level of the headphones or internal
speakers.
Warning!
When using headphones, take care not to turn the volume too high. Listening
at high volumes for extended periods of time may result in permanent hearing
damage.
e REC LEVEL Control
Turn to adjust the record level when the “Level Cont.” of preset
menu is “Manual”.
The inside control (Right channel) and outside control (Left
channel) turn together, unless you hold one while turning the
other.
The optimum record level is when the level meter goes as close
to 0dB as possible but does not go OVER.
Back
w
e
q
q REMOTE Control Jack
The Jack for the optional remote RC600PMD and the external
remote controller.
w MIC/LINE IN Jacks
XLR stereo for MIC/LINE level.
e PHANTOM/MIC slide switch
3 position slide switch. Phantom on, off or line. Phantom works to
supply +48V to external microphones.
