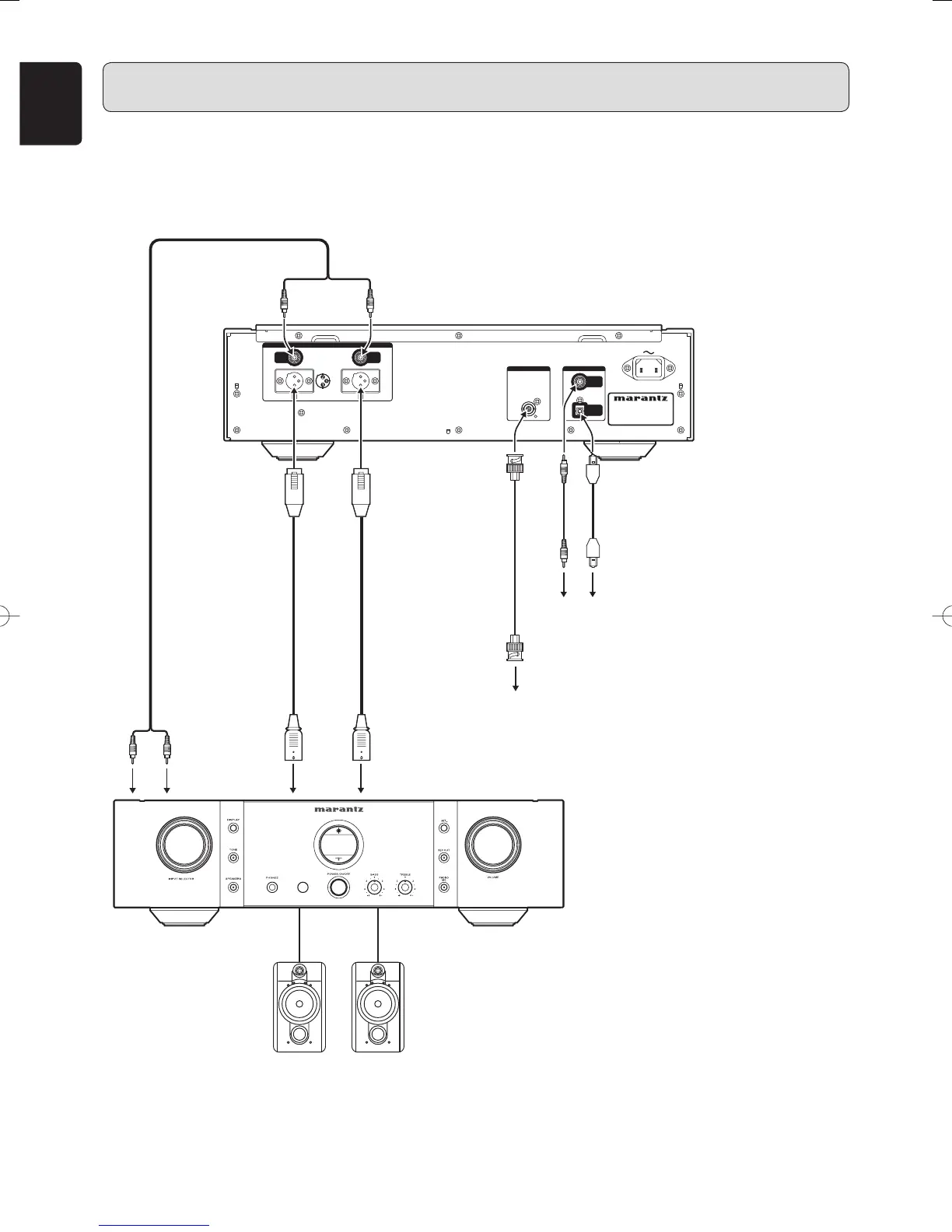

Depending on your amplifier/receiver/Stereo System, there are various ways to connect to this player. For correct connection
please refer to instruction manuals of stereo system to be connected.
Caution:
Do not connect output from this unit to PHONO input of your audio system.
BALANCED
HOT
(+)
GND
LR
ANALOG OUTPUTS
EXT.CLOCK INPUT DIGITAL OUTPUTS
UNBALANCED
LR
COAX.
OPT.
AC IN
MODEL NO. SA-11S2
COLD
(
- )
wre
To Analog Audio output
(white)(red)
To Digital Audio
output
w
...Optical cable (Optional)
e
...Coaxial cable (Optional)
r
...BNC terminal coaxial cable (75
Ω
)
Audio cable
q
(Supplied)
To audio input
terminals on
amplifi er
Connect to digital input terminals of receiver, D/A
converter or CD recorder, etc..
To balanced input
terminals on amplifi er
Balanced connection
cord (Optional)
Connect to master clock
generator
CONNECTIONS
