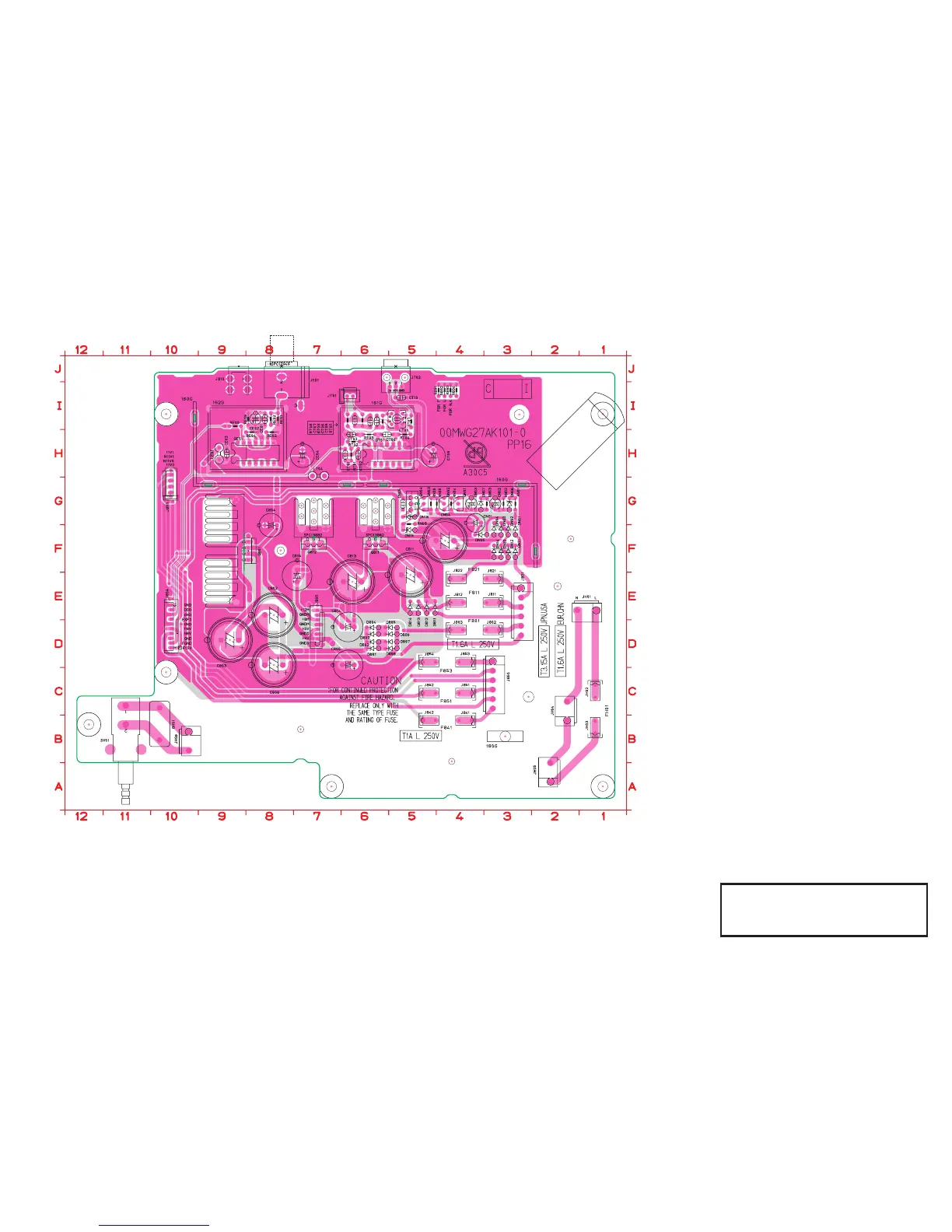

11. PARTS LOCATION
鉛フリー半田
鉛フリー半田
半田付けには、鉛フリー半田
(Sn-Ag-Cu)
を使用してください。
Lead-free Solder
When soldering, use the Lead-free Solder (Sn-Ag-Cu).
C802 E8
C803 D9
C804 F8
C805 D6
C806 D8
C811 E5
C813 E6
C814 D6
C815 E7
CE01 I8
CE02 I8
CE03 H9
CE04 H7
CN01 G4
CN02 G3
CN03 G4
CN04 F4
CN05 G5
CT01 H6
CT02 H6
CT03 H6
CT04 H5
CT05 I6
CT06 I6
CT07 I6
CT09 H5
CT10 I5
D801 D6
D802 D6
D803 D6
D804 D6
D805 D5
D806 D5
D807 D5
D808 D5
D811 E5
D812 E5
D813 E5
D814 E5
DN01 F3
DN02 F3
DN03 F3
DN04 F3
DN05 F3
DN06 G3
DN07 G4
DN11 F3
DN12 F3
DN13 F3
DN14 F3
DN15 F5
DN16 G5
GH01 B10
J801 E3
J802 D3
J803 D4
J804 D10
J805 D7
J810 J9
J811 E3
J812 E4
J821 E3
J822 E4
J841 B4
J842 B5
J850 D3
J851 C4
J852 C5
J853 D4
J854 D5
J855 G10
JE01 J8
JH01 E1
JH02 C1
JH03 B1
JH04 B2
JH05 A2
JH06 B10
JT01 I6
JT02 J5
LE01 H9
LT01 I5
LT04 H7
Q801 F8
Q811 F6
Q812 F7
QE01 H9
QN01 G4
QN02 G4
QN03 G5
QN04 G5
QT01 H6
R891 I4
R892 I4
R893 I4
R894 I4
RE01 I8
RE02 I8
RE03 H8
RE04 H8
RE05 I9
RE06 I8
RN01 G3
RN02 G3
RN03 G3
RN04 G4
RN05 G4
RN06 G5
RN08 G5
RT01 H6
RT02 H6
RT03 H6
RT04 H5
RT05 I6
RT07 I5
RT08 I6
RT09 I6
SH01 B11
PP16 PWB B
