Marantz SA-7S1f - Electrical Parts List

3-423-41
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
CM01 B7
CM02 B6
CM03 A6
CM04 B5
CM05 B5
CM06 B5
CM07 B7
CM08 A6
JM01 A6
JM02 A5
JM03 B4
JM04 A8
QM01 B6
QM02 B6
QM03 B6
QM04 B6
QM05 B5
QM06 B7
QM07 A7
RM01 B6
RM02 B6
RM03 B6
RM04 B6
RM05 A6
RM06 B6
RM07 B6
RM08 B6
RM09 B6
RM10 B6
RM11 A7
RM12 B5
RM13 B5
RM15 B6
RM16 B5
RM17 B5
RM18 C6
RM19 C6
RM20 C6
RM21 C6
RM22 B7
RM23 B7

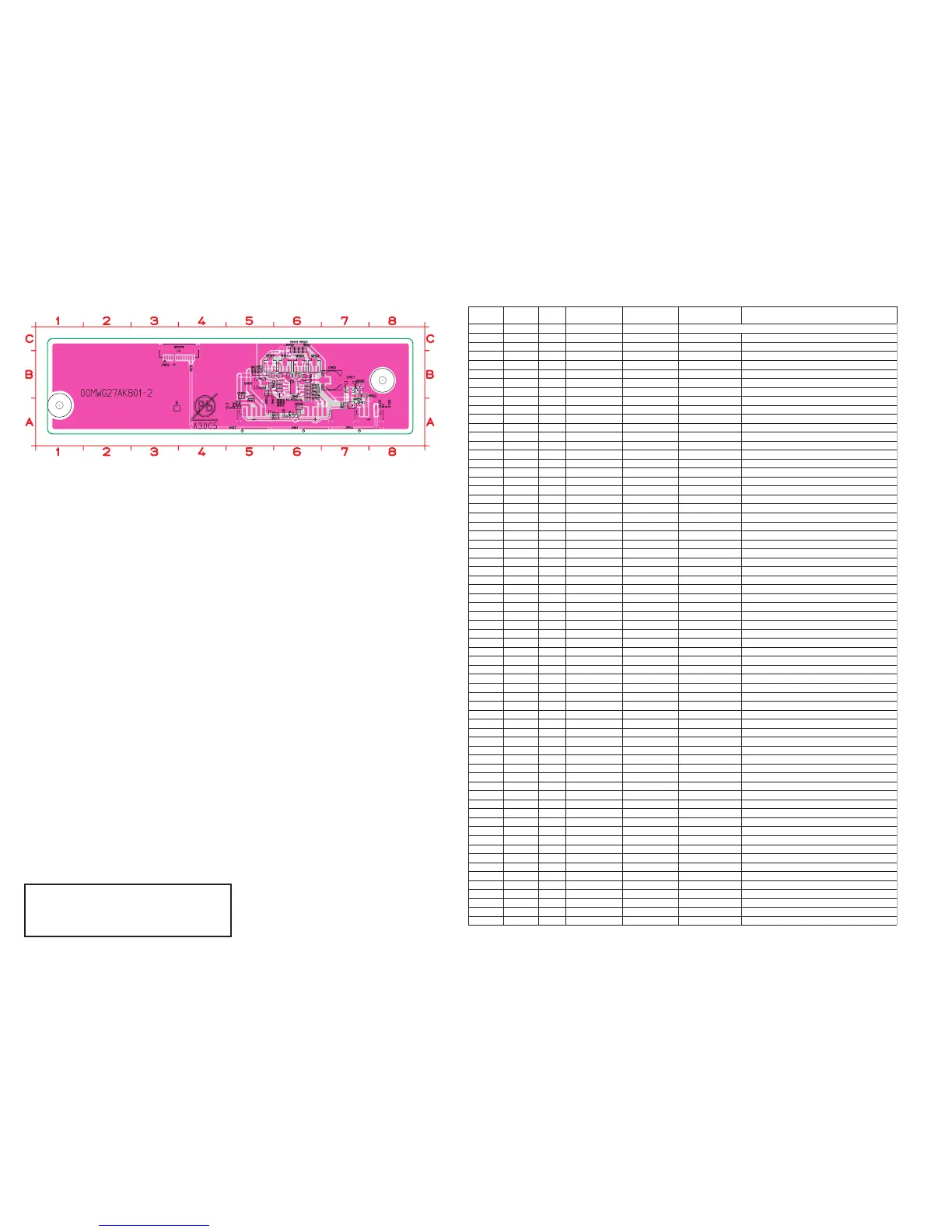

PM16 PWB A
5. ELECTRICAL PARTS LIST
P.W.B.
NAME
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
SACD MODULE PWB 1U-3648B
(
00D2223648108
)
1U-3648B C-403 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-404 ns
p
00D2544464964 ELECT CAP. CE67C0J470MT
(
MV
)
+REF
1U-3648B C-405 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-406 ns
p
00D2570501901 CHIP CAP. CK73B1H103KT
(
1608
)
+1608
1U-3648B C-407 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-408 ns
p
00D2544464951 ELECT CAP. CE67C0J220MT
(
MV-B
)
+REF
1U-3648B C-409 ns
p
00D2544464951 ELECT CAP. CE67C0J220MT
(
MV-B
)
+REF
1U-3648B C-410 ns
p
00D2544464951 ELECT CAP. CE67C0J220MT
(
MV-B
)
+REF
1U-3648B C-411 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-412 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-413 ns
p
00D2570502942 CHIP CAP. CC73CH1H2R0CT +1608
1U-3648B C-414 ns
p
00D2570502942 CHIP CAP. CC73CH1H2R0CT +1608
1U-3648B C-415 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-416 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-417 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-418 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-419 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-420 ns
p
00D2544464951 ELECT CAP. CE67C0J220MT
(
MV-B
)
+REF
1U-3648B C-421 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-422 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-423 ns
p
00D2544464951 ELECT CAP. CE67C0J220MT
(
MV-B
)
+REF
1U-3648B C-424 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-425 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-426 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-427 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-428 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-429 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-430 ns
p
00D2544464951 ELECT CAP. CE67C0J220MT
(
MV-B
)
+REF
1U-3648B C-432 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-433 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-434 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-436 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-437 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-438 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-441 ns
p
00D2544464951 ELECT CAP. CE67C0J220MT
(
MV-B
)
+REF
1U-3648B C-442 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-446 ns
p
00D2570509929 CHIP CAP. CK73B1H102KT +1608
1U-3648B C-460 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-461 ns
p
00D2544464951 ELECT CAP. CE67C0J220MT
(
MV-B
)
+REF
1U-3648B C-465 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-467 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-469 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-471 ns
p
00D2544464951 ELECT CAP. CE67C0J220MT
(
MV-B
)
+REF
1U-3648B C-472 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-501 ns
p
00D2544464964 ELECT CAP. CE67C0J470MT
(
MV
)
+REF
1U-3648B C-502 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-503 ns
p
00D2570501901 CHIP CAP. CK73B1H103KT
(
1608
)
+1608
1U-3648B C-504 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-506 ns
p
00D2570512903 CHIP CAP. CK73F1E104ZT +1608
1U-3648B C-509 ns
p
00D2572015945 CHIP CAP. CS77B1A475MT
1U-3648B C-513 ns
p
00D2570509990 CHIP CAP. CK73B1H222KT +1608
1U-3648B C-514 ns
p
00D2570509990 CHIP CAP. CK73B1H222KT +1608
1U-3648B C-515 ns
p
00D2570509990 CHIP CAP. CK73B1H222KT +1608
1U-3648B C-516 ns
p
00D2570509990 CHIP CAP. CK73B1H222KT +1608
1U-3648B C-517 ns
p
00D2570504908 CHIP CAP. CC73CH1H220JT +1608
1U-3648B C-518 ns
p
00D2570504908 CHIP CAP. CC73CH1H220JT +1608
1U-3648B C-519 ns
p
00D2570504908 CHIP CAP. CC73CH1H220JT +1608
1U-3648B C-520 ns
p
00D2570504908 CHIP CAP. CC73CH1H220JT +1608
1U-3648B C-521 ns
p
00D2570516954 CHIP CAP. CK73B1E104KT +1608
1U-3648B C-522 ns
p
00D2570510934 CHIP CAP. CK73B1H472KT +1608
1U-3648B C-523 ns
p
00D2570510934 CHIP CAP. CK73B1H472KT +1608
1U-3648B C-524 ns
p
00D2570507976 CHIP CAP. CC73CH1H331JT +1608
1U-3648B C-525 ns
p
00D2570511904 CHIP CAP. CK73F1H103ZT +1608
1U-3648B C-526 ns
p
00D2570511904 CHIP CAP. CK73F1H103ZT +1608
1U-3648B C-527 ns
p
00D2544464951 ELECT CAP. CE67C0J220MT
(
MV-B
)
+REF
1U-3648B C-528 ns
p
00D2544464964 ELECT CAP. CE67C0J470MT
(
MV
)
+REF
POS. NO.
鉛フリー半田
鉛フリー半田
半田付けには、鉛フリー半田
(Sn-Ag-Cu)
を使用してください。
Lead-free Solder
When soldering, use the Lead-free Solder (Sn-Ag-Cu).
