TECHNICAL SPECIFICATIONS
MULTI
SPEAKER
DIGITAL RLVIDEO S-VIDEO
AUX 1 INPUT
AUDIO
SETUP
SIMPLE
MULTI
PURE
T-MODE
SURROUND
MEMORY DISPLAY
ATT MUTE
STANDBY
PHONES POWER ON/STANDBY
INPUT SELECTOR VOLUME
UP DOWN
AV SURROUND RECEIVER SR5002
DIRECT
AUTO HT-EQ EXIT MENU
MODE
BAND
CLEAR
ENTER
SETUP MIC
6-5/16 ins.
(160 mm)
9/16 ins.
(14 mm)
5-3/4 ins.
(146 mm)
17-5/16 ins. (440 mm)
13/16 ins.
(20 mm)
29/32 ins.
(23 mm)
13-7/16 ins.
(341 mm)
15-1/8 ins.
(384 mm)

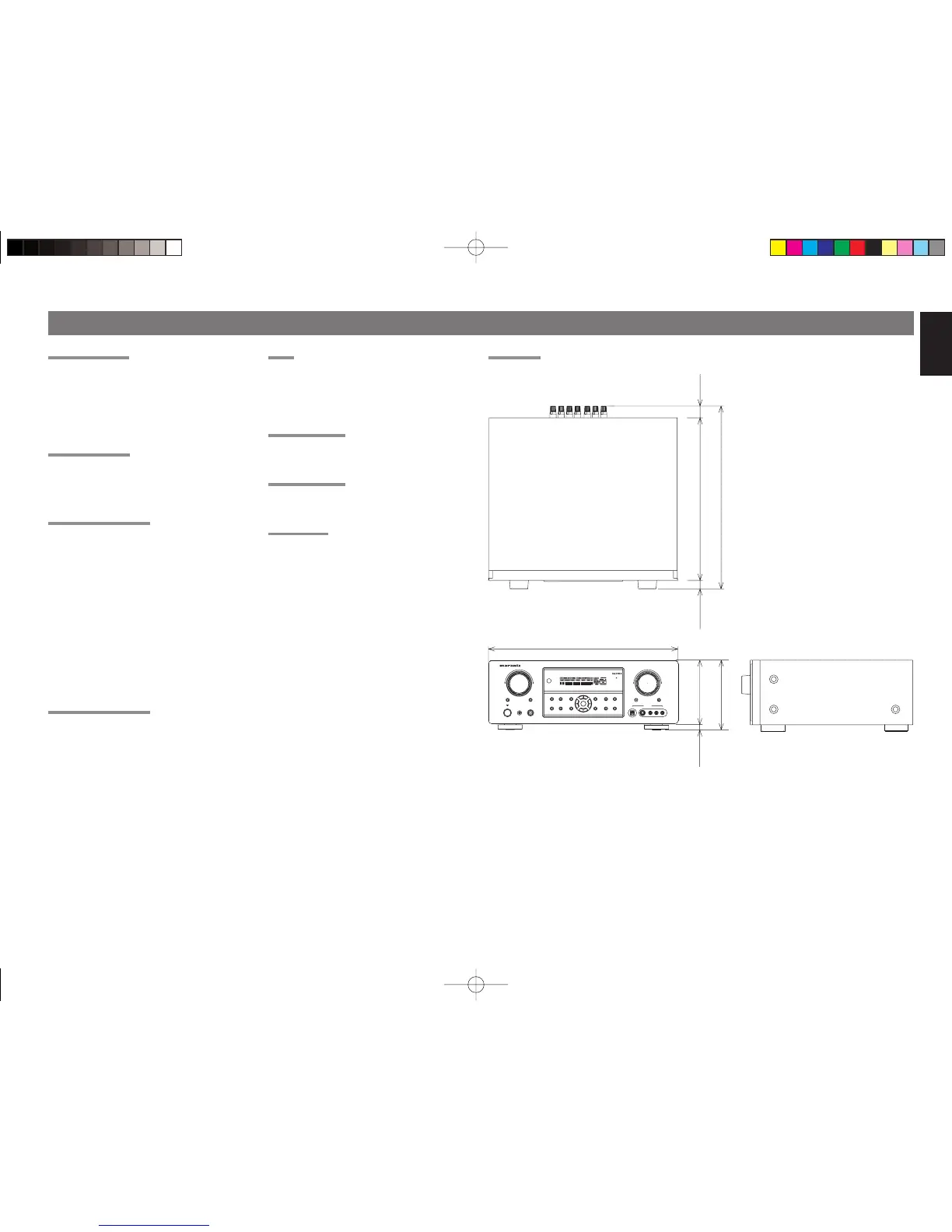

DIMENSIONSFM TUNER SECTION
Frequency Range ...................................87.5 – 108.0 MHz
Usable Sensitivity ................................IHF 1.8 µV/16.4 dBf
Signal to Noise Ratio ......................Mono/Stereo 75/70 dB
Distortion ........................................ Mono/Stereo 0.2/0.3 %
Stereo Separation ............................................ 1 kHz 45 dB
Alternate Channel Selectivity ....................± 300 kHz 60 dB
Image Rejection ............................................98 MHz 70 dB
Tuner Output Level ..............1 kHz, ± 75 kHz Dev 800 mV
AM TUNER SECTION
Frequency Range ...................................... 520 – 1710 kHz
Signal to Noise Ratio ................................................. 50 dB
Usable Sensitivity .........................................Loop 400µV/m
Distortion ..................................... 400Hz, 30 % Mod. 0.5 %
Selectivity ....................................................± 20 kHz 70 dB
AUDIO SECTION (SR4002)
Power Output (20 Hz – 20 kHz/THD=0.08%)
Front L&R ................................................8 ohms 80 W / Ch
Center .....................................................8 ohms 80 W / Ch
Surround L&R .........................................8 ohms 80 W / Ch
Surround Back L&R ................................8 ohms 80 W / Ch
Front L&R ............................................. 6 ohms 105 W / Ch
Center .................................................. 6 ohms 105 W / Ch
Surround L&R ...................................... 6 ohms 105 W / Ch
Surround Back L&R ............................. 6 ohms 105 W / Ch
Input Sensitivity/Impedance ..................180 mV/ 47 Kohms
Signal to Noise Ratio(Analog Input / Pure Direct) ....... 105 dB
Frequency Response
(Analog Input / Pure Direct)
..............................................8 Hz – 100 kHz (± 3 dB)
(Digital Input / 96 kHz PCM)
............................................... 8 Hz – 45 kHz (± 3 dB)
AUDIO SECTION (SR5002)
Power Output (20 Hz – 20 kHz/THD=0.08%)
Front L&R ................................................8 ohms 90 W / Ch
Center .....................................................8 ohms 90 W / Ch
Surround L&R .........................................8 ohms 90 W / Ch
Surround Back L&R ................................8 ohms 90 W / Ch
Front L&R ..............................................6 ohms 110 W / Ch
Center ...................................................6 ohms 110 W / Ch
Surround L&R .......................................6 ohms 110 W / Ch
Surround Back L&R ..............................6 ohms 110 W / Ch
Input Sensitivity/Impedance ..................180 mV/ 47 Kohms
Signal to Noise Ratio(Analog Input / Pure Direct) ....... 105 dB
Frequency Response
(Analog Input / Pure Direct)
..............................................8 Hz – 100 kHz (± 3 dB)
(Digital Input / 96 kHz PCM)
................................................8 Hz – 45 kHz (± 3 dB)
VIDEO
Television Format .......................................................NTSC
Input Level/Impedance ..............................1 Vp-p/75 ohms
Output Level/Impedance ...........................1 Vp-p/75 ohms
Video Frequency Response ..........5 Hz to 8 MHz (– 1 dB)
Video Frequency (Component) .......5 Hz to 80 MHz (– 1 dB)
S/N ............................................................................. 60 dB
GENERAL (SR4002)
Power Requirement ....................................AC 120 V 60Hz
Power Consumption ................................................. 450 W
Weight .................................................... 25.1 lbs (11.4 Kg)
GENERAL (SR5002)
Power Requirement ....................................AC 120 V 60Hz
Power Consumption ................................................. 500 W
Weight ....................................................27.1 lbs (12.3 Kg)
ACCESSORIES
Remote Controller RC5001SR ..........................................1
AAA-size batteries ............................................................ 2
FM Antenna ........................................................................1
AM Loop Antenna ..............................................................1
Front AUX Jack Cover .......................................................1
AC Power Cord ..................................................................1
Microphone MC-10 ............................................................1
User Guide .........................................................................1
Warranty Card (USA x 1, Canada x 1)
