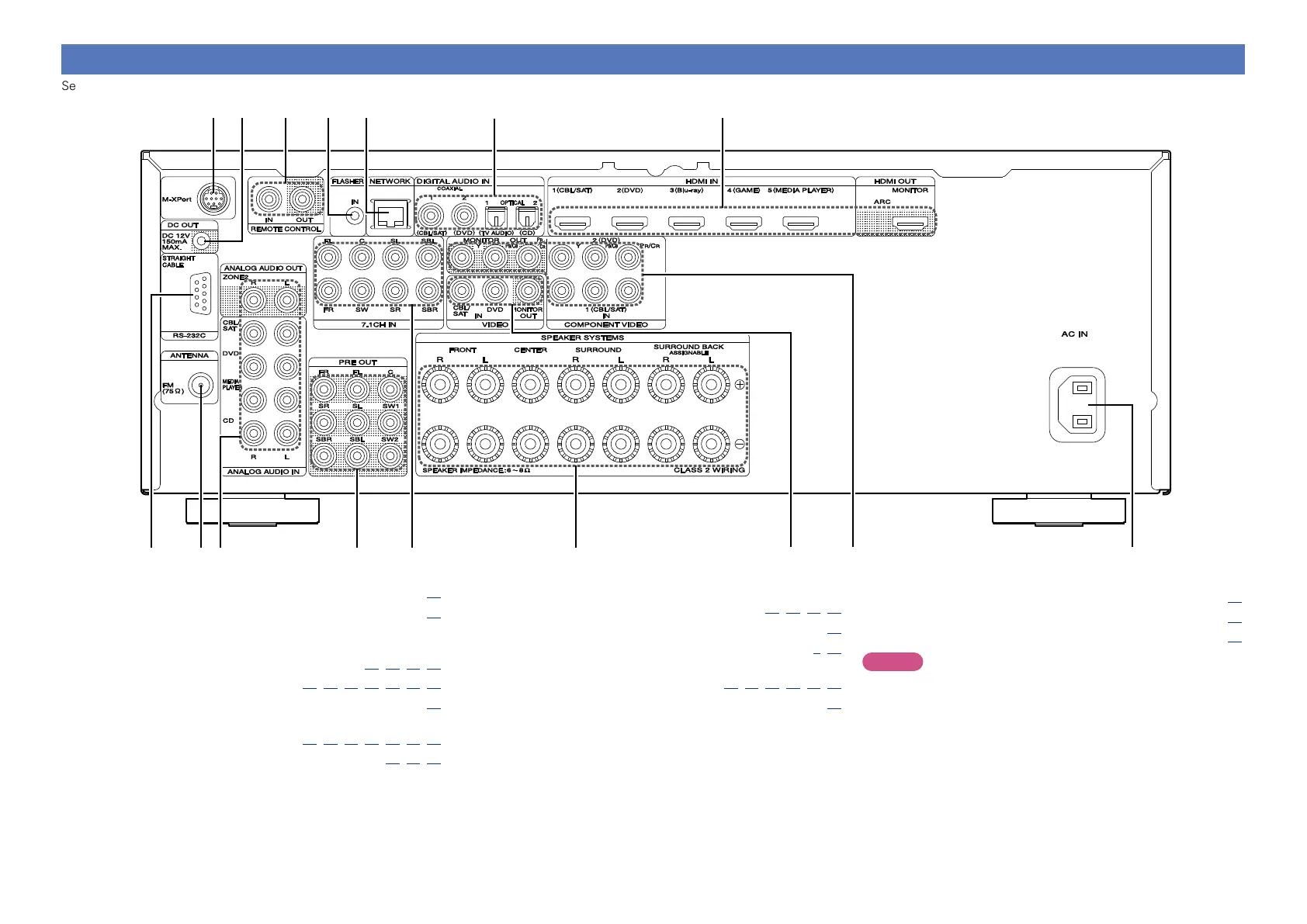

Rear panel
See the page indicated in parentheses ( ).
Q0
q w
e r t y oiu
Q1
Q3Q5 Q4Q6 Q2
q RC-232C connector ·································································· (90)
w FM antenna terminal (ANTENNA) ········································· (21)
e Analog audio connectors
(ANALOG AUDIO IN/ANALOG AUDIO OUT)
················································································ (14, 15, 16, 20)
r PRE OUT connectors ··························· (80, 81, 82, 83, 84, 85, 86)
t 7.1ch input connectors (7.1CH IN) ········································· (23)
y Speaker terminals (SPEAKER SYSTEMS)
······························································ (80, 81, 82, 83, 84, 85, 86)
u Video connectors (VIDEO) ·········································· (13, 14, 15)
i Component video connectors
(COMPONENT VIDEO) ·········································· (14, 15, 16, 17)
o AC inlet (AC IN) ········································································ (26)
Q0 HDMI connectors ································································· (9, 10)
Q1 Digital audio connectors
(DIGITAL AUDIO IN) ·································· (13, 14, 15, 16, 17, 20)
Q2 Network connector (NETWORK) ··········································· (25)
Q3 FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
Q4 REMOTE CONTROL connectors ············································· (89)
Q5 DC OUT jacks ··········································································· (90)
Q6 M-XPort connector ·································································· (22)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
