Connecting a device with a multi-channel output connector
•You can connect this unit to an external device fitted with multi-channel sound audio output connectors
to enjoy music and video.
•To play analog signals input from 7.1CH IN connectors, set “Input Mode” (vpage119) to “7.1CH IN”.
•The video signal can be connected in the same way as a Blu-ray Disc player / DVD player (vpage15
“Connecting a DVD player”, vpage16 “Connecting a Blu-ray Disc player”).
•When a device is connected to the SBL/SBR terminal of 7.1CH IN connectors, set “Assign Mode”
(vpage121) to “Surround Back”.
L
L
R
R
L
L
R
R
L
L
R
R
SUB-
WOOFER
CENTER SURROUND
BACK
RL
SURROUND
RL
FRONT
RL
AUDIO

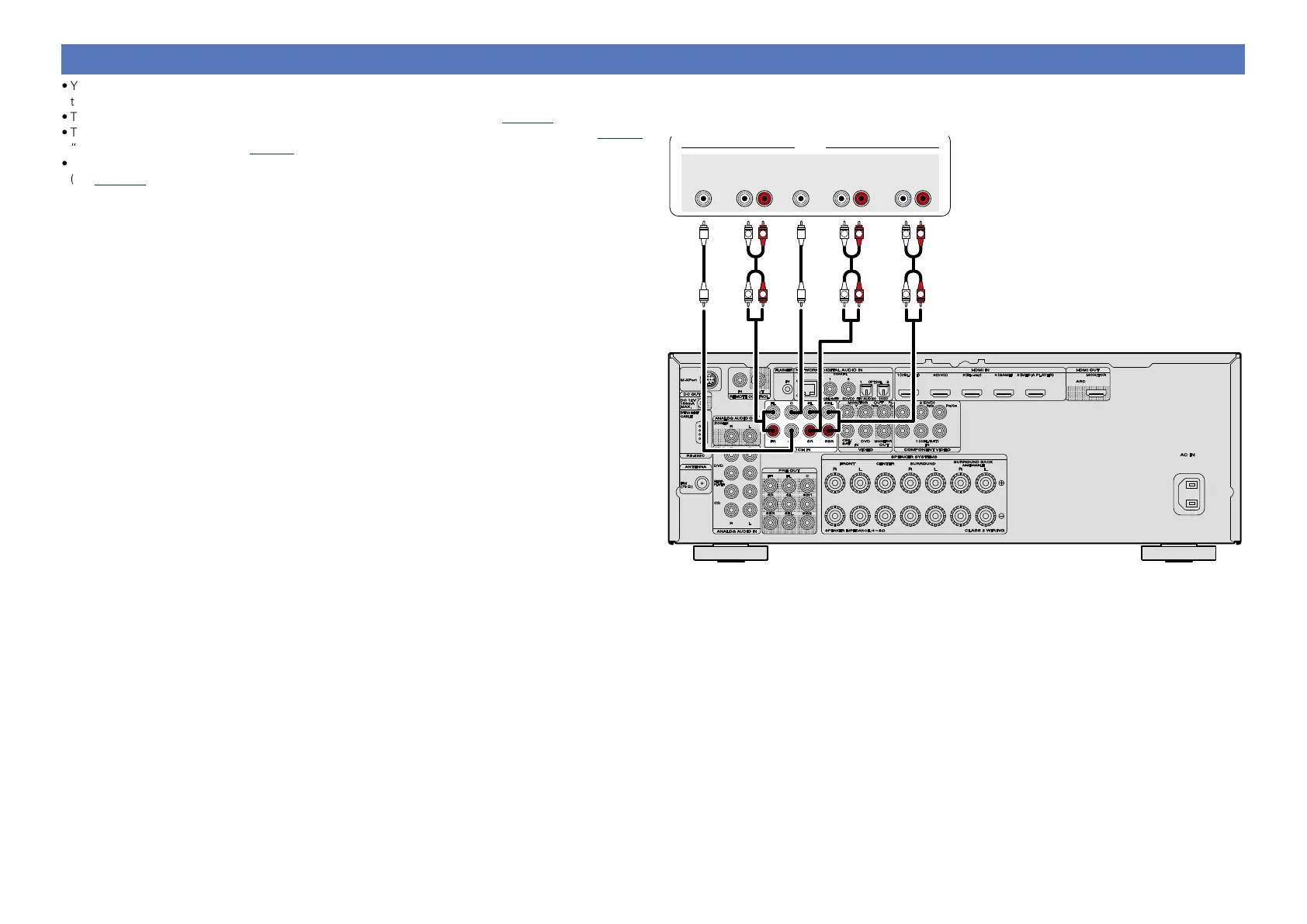

Devices with a multi-channel output connector
(Blu-ray Disc player, DVD player,
External decoder etc.)
