1. TECHNICAL SPECIFICATIONS
FM TUNER SECTION
Frequency Range ....................................... 87.5 - 108.0 MHz
Usable Sensitivity .................................. IHF 1.8 µV/16.4 dBf
Signal to Noise Ratio..........................Mono/Stereo 75/70 dB
Distortion ........................................... Mono/Stereo 0.2/0.3 %
Stereo Separation............................................... 1 kHz 45 dB
Alternate Channel Selectivity ...................... ± 300 kHz 60 dB
Image Rejection............................................... 98 MHz 70 dB
Tuner Output Level ..................1 kHz, ± 75 kHz Dev 800 mV
AM TUNER SECTION
Frequency Range ............................. 531 - 1602 kHz [ /A /N ]
..................................520 - 1710 kHz [ /U ]
Signal to Noise Ratio.................................................... 50 dB
Usable Sensitivity .......................................... Loop 400mV/m
Distortion ........................................ 400Hz, 30 % Mod. 0.5 %
Selectivity ...................................................... ± 18 kHz 70 dB
AUDIO SECTION
Power Output (20 Hz - 20 kHz/THD=0.08%)
Front L&R .................................................. 8 ohms 90 W / Ch
Center........................................................ 8 ohms 90 W / Ch
Surround L&R............................................ 8 ohms 90 W / Ch
Surround Back L&R................................... 8 ohms 90 W / Ch
Front L&R ................................................ 6 ohms 110 W / Ch
Center...................................................... 6 ohms 110 W / Ch
Surround L&R.......................................... 6 ohms 110 W / Ch
Surround Back L&R................................. 6 ohms 110 W / Ch
Input Sensitivity/Impedance......................168 mV/ 47 kohms
Signal to Noise Ratio
(Analog Input / Pure Direct) ................................. 105 dB
Frequency Response
(Analog Input / Pure Direct) ........ 8 Hz - 100 kHz (± 3 dB)
(Digital Input / 96 kHz PCM) ......... 8 Hz - 45 kHz (± 3 dB)
VIDEO SECTION
Television Format ..................................................NTSC/PAL
Input Level/Impedance ..................................1 Vp-p/75 ohms
Output Level/Impedance................................1 Vp-p/75 ohms
Video Frequency Response .............. 5 Hz to 8 MHz (- 1 dB)
Video Frequency (Component) ....... 5 Hz to 80 MHz (- 1 dB)
S/N................................................................................ 60 dB
GENERAL
Power Requirement .............................. AC 240 V 50 Hz [ /A ]
.........................AC 230 V 50/60 Hz [ /N ]
..............................AC 120 V 60 Hz [ /U ]
Power Consumption .........................................470 W[ /A /N ]
............................................ 450 W [ /U ]
Weight ....................................................... 13.5 kg (30.0 lbs)
ACCESSORIES
Remote Control Unit RC5500SR..........................................1
AAA-size batteries............................................................... 2
FM Antenna..........................................................................1
AM Loop Antenna.................................................................1
Front AUX Jack Cover ......................................................... 1
AC Power Cord.....................................................................1

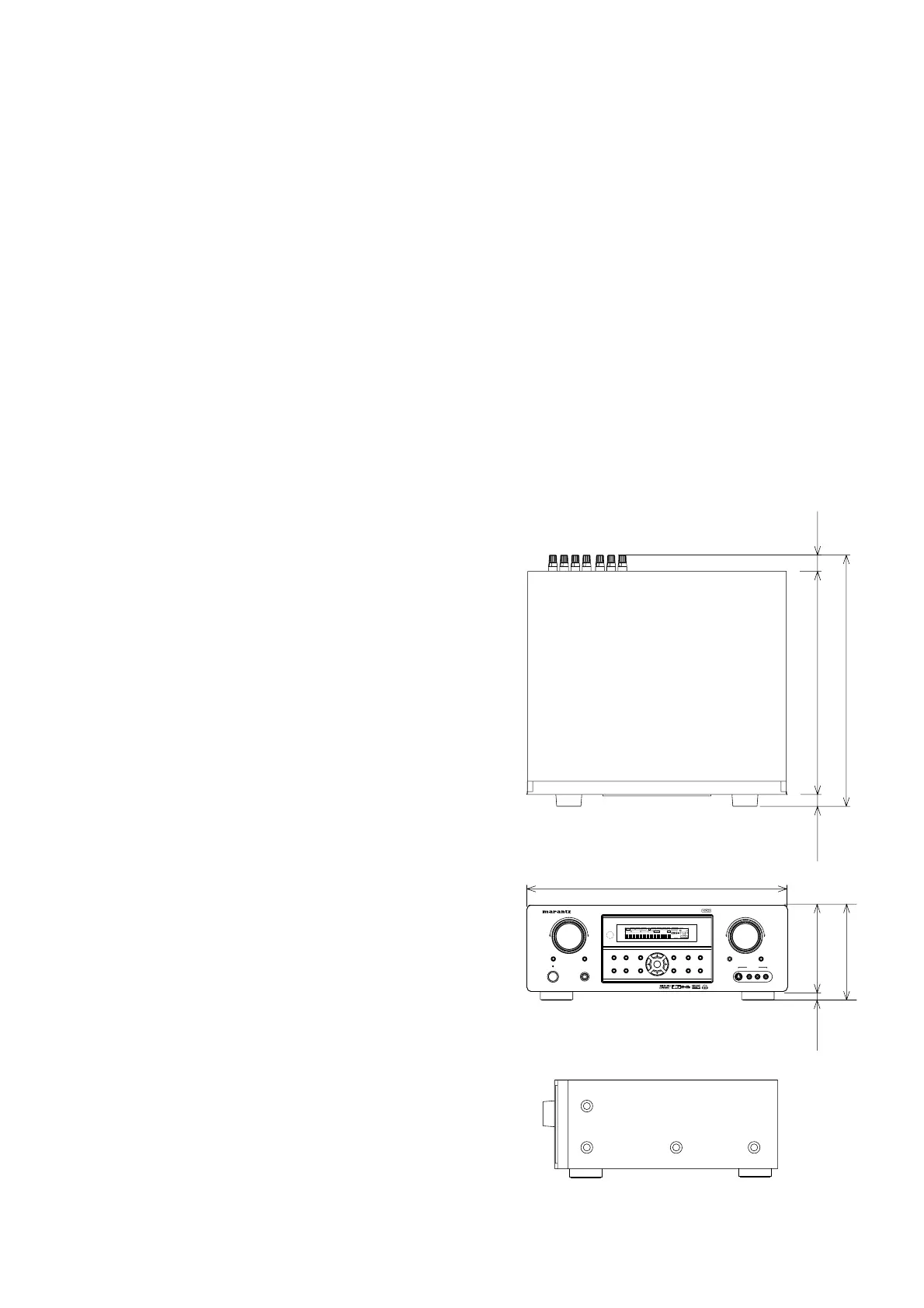

16-1/2 ins.
(418 mm)
18-1/4 ins.
(463 mm)
SURROUND
AV SURROUND RECEIVER SR5600
DOWN UP
VOLUME INPUT SELECTOR
POWER ON / STANDBY PHONES
STANDBY
MUTE MULTI M. SPEAKER B 7.1CH INPUT
PURE
SETUP DIRECT
SIMPLE
AUTO HT-EQ MENU
ENTER
DISPLAY MEMORY CLEAR
T-MODE EXIT BAND
MODE
DISP MULTI AUTO TUNED ST V – OFF NIGHT PEAK ANALOG
DIGITAL
ATT
SLEEP
SURR
AUTO
DIRECT DISC 6.1 MTX 6.1 EQ
DIGITAL
SURROUND
PCM
L
C
R
SL S SR
LFE
AUX 1 INPUT
AUDIOS-VIDEO VIDEO L R
1 in.
(25 mm)
13/16 ins.
(20 mm)
6-7/16 ins.
(162.3 mm)
11/16 ins.
(16.3 mm)
5-3/4 ins.
(146 mm)
17-5/16 ins. (440 mm)
