3. DIGITAL PCB

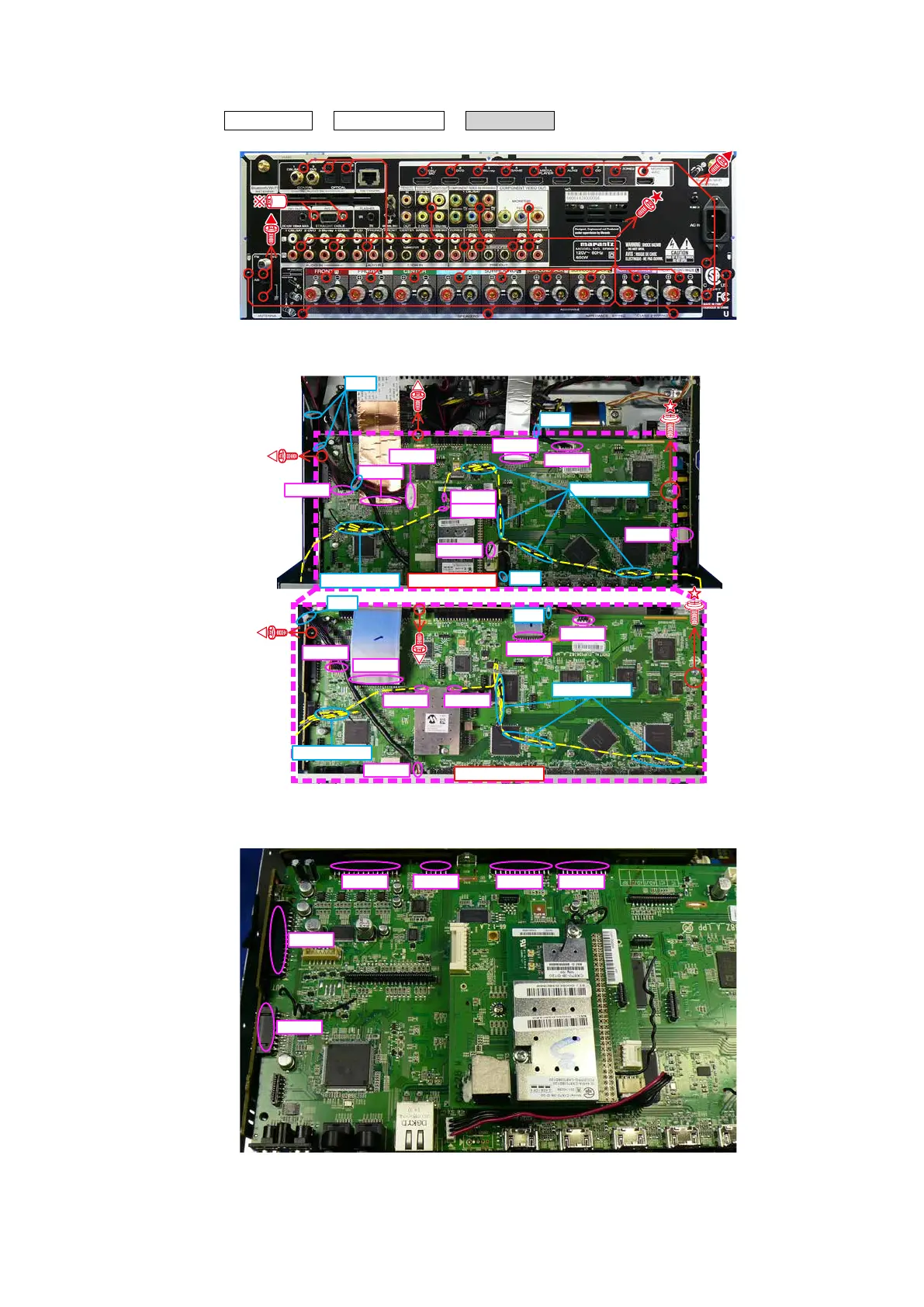

Proceeding : TOP COVER → BACK CHASSIS → DIGITAL PCB
(1) Remove the screws.
(2) Cut the wire clamp, then remove the connector wires and FFC.
(3) Remove the connector wire.
CY920 Model
CX870 Model
FFC
CN903
FFC
CN914
CN916
CON1
CON2
CN704
CN901
FFC
CN903
FFC
CN503
CON1CON2
CN704
STYLE PIN
CUT
CUT
STYLE PIN
CUT
STYLE PIN
CUT
CUT
STYLE PIN
Front side
BN24A BN25A BN21ABN26A
BN23A
BN27A
