Marantz SR7300 - Page 42

58
no
yes
no
no
yes
yes

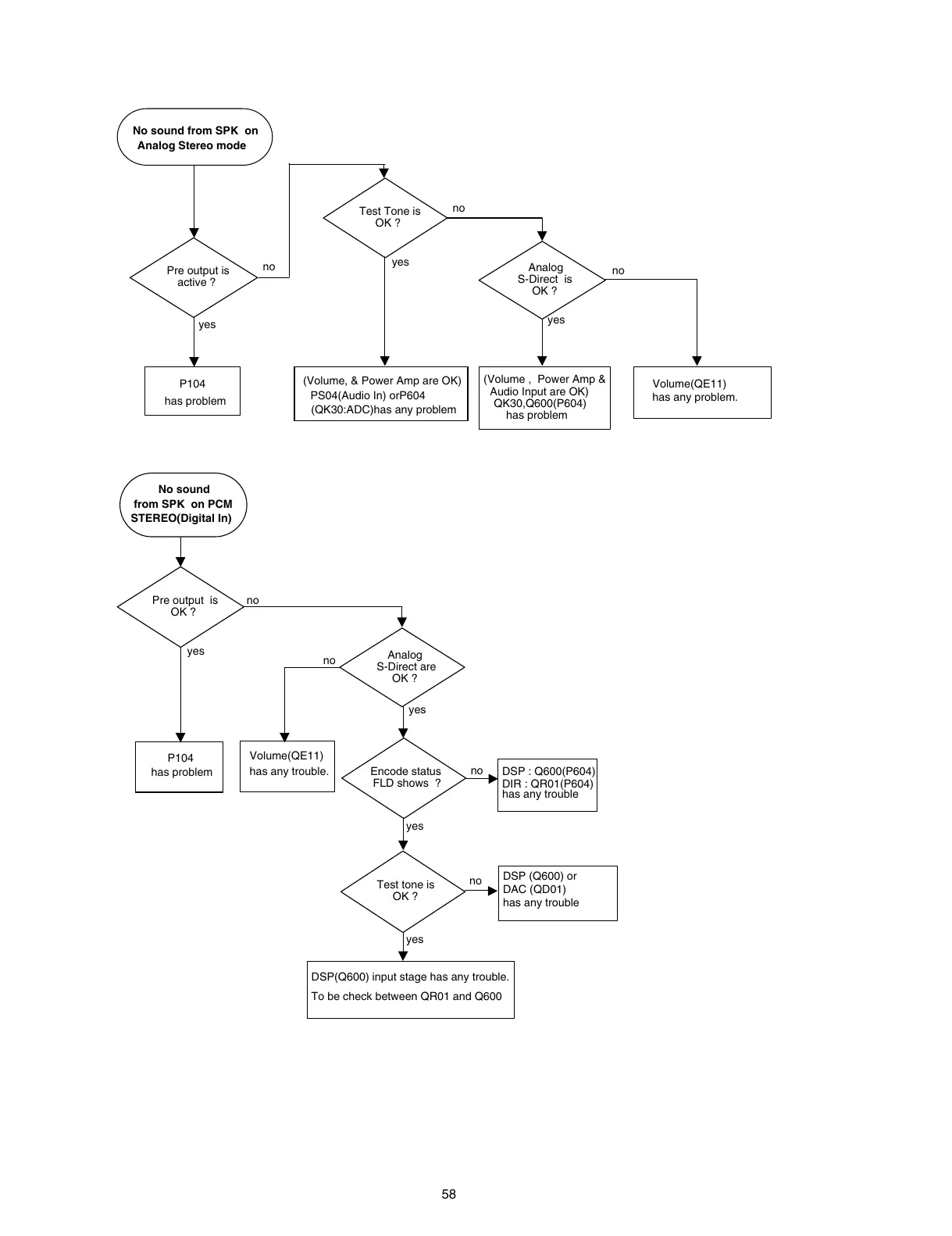

No sound from SPK on
Analog Stereo mode
Pre output is
active ?
Volume(QE11)
has any problem.
P104
has problem
Analog
S-Direct is
OK ?
(Volume , Power Amp &
Audio Input are OK)
QK30,Q600(P604)
has problem
Test Tone is
OK ?
(Volume, & Power Amp are OK)
PS04(Audio In) orP604
(QK30:ADC)has any problem
no
DSP : Q600(P604)
DIR : QR01(P604)
no
has any trouble
yes
no
yes
yes
Volume(QE11)
has any trouble.
no
DSP (Q600) or
DAC (QD01)
has any trouble
yes
DSP(Q600) input stage has any trouble.
To be check between QR01 and Q600
No sound
from SPK on PCM
STEREO(Digital In)
Analog
S-Direct are
OK ?
P104
has problem
Test tone is
OK ?
Pre output is
OK ?
Encode status
FLD shows ?
