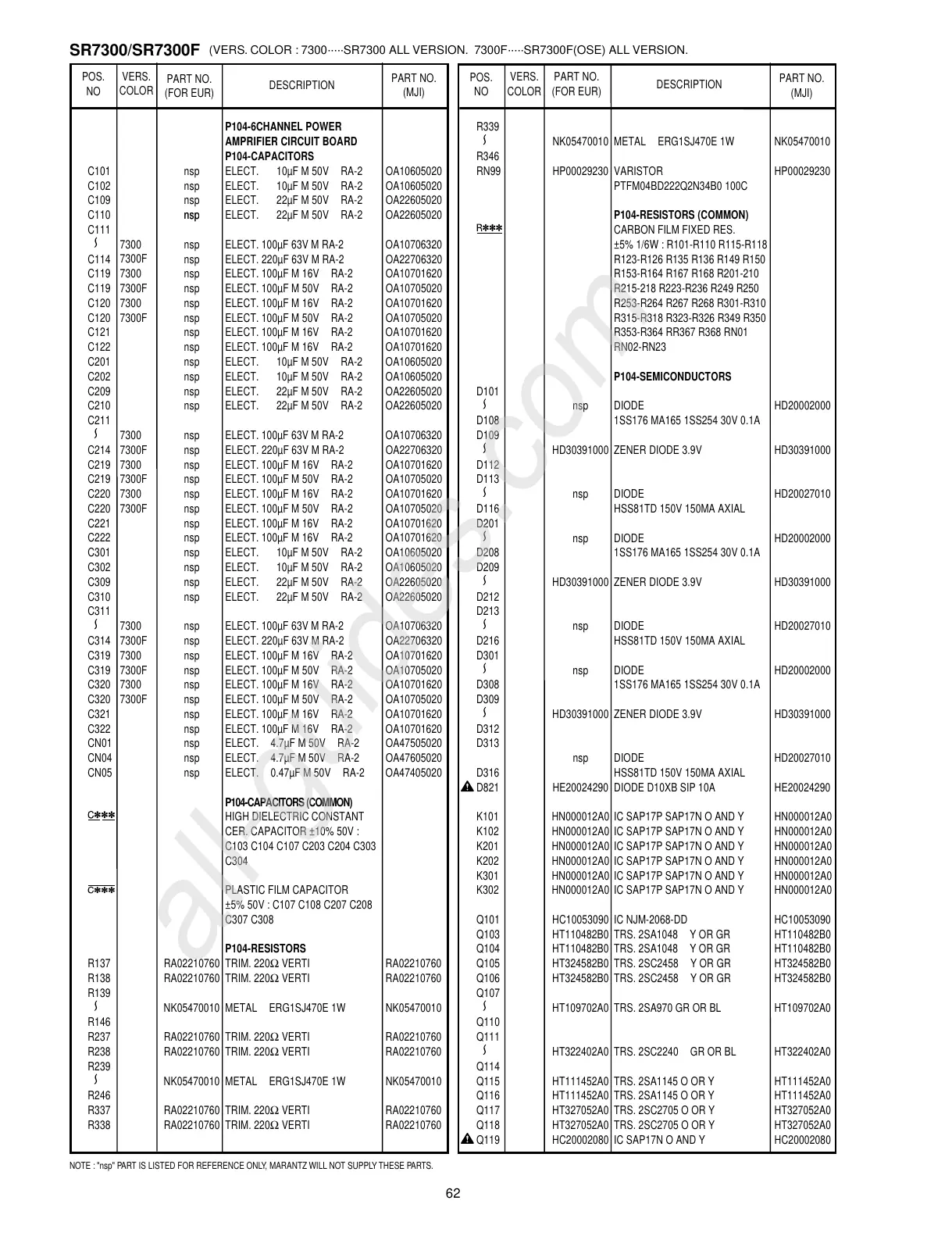

Marantz SR7300 - Page 46

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
62
SR7300/SR7300F
(VERS. COLOR : 7300·····SR7300 ALL VERSION. 7300F·····SR7300F(OSE) ALL VERSION.
OA22706320
ELECT. 220µF 63V M RA-2
nsp
7300
7300F
OA22706320
ELECT. 220µF 63V M RA-2
nsp
7300
7300F
OA22706320
ELECT. 220µF 63V M RA-2
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
P104-6CHANNEL POWER
AMPRIFIER CIRCUIT BOARD
P104-CAPACITORS
C101 nsp ELECT. 10µF M 50V RA-2 OA10605020
C102 nsp ELECT. 10µF M 50V RA-2 OA10605020
C109 nsp ELECT. 22µF M 50V RA-2 OA22605020
C110
nsp
nspnsp ELECT. 22µF M 50V RA-2 OA22605020
C111
nsp ELECT. 100µF 63V M RA-2 OA10706320
C114
C119
7300
7300F
7300 nsp ELECT. 100µF M 16V RA-2 OA10701620
C119 7300F nsp ELECT. 100µF M 50V RA-2 OA10705020
C120 7300 nsp ELECT. 100µF M 16V RA-2 OA10701620
C120 7300F nsp ELECT. 100µF M 50V RA-2 OA10705020
C121 nsp ELECT. 100µF M 16V RA-2 OA10701620
C122 nsp ELECT. 100µF M 16V RA-2 OA10701620
C201 nsp ELECT. 10µF M 50V RA-2 OA10605020
C202 nsp ELECT. 10µF M 50V RA-2 OA10605020
C209 nsp ELECT. 22µF M 50V RA-2 OA22605020
C210 nsp ELECT. 22µF M 50V RA-2 OA22605020
C211
nsp ELECT. 100µF 63V M RA-2 OA10706320
C214
C219 7300 nsp ELECT. 100µF M 16V RA-2 OA10701620
C219 7300F nsp ELECT. 100µF M 50V RA-2 OA10705020
C220 7300 nsp ELECT. 100µF M 16V RA-2 OA10701620
C220 7300F nsp ELECT. 100µF M 50V RA-2 OA10705020
C221 nsp ELECT. 100µF M 16V RA-2 OA10701620
C222 nsp ELECT. 100µF M 16V RA-2 OA10701620
C301 nsp ELECT. 10µF M 50V RA-2 OA10605020
C302 nsp ELECT. 10µF M 50V RA-2 OA10605020
C309 nsp ELECT. 22µF M 50V RA-2 OA22605020
C310 nsp ELECT. 22µF M 50V RA-2 OA22605020
C311
nsp ELECT. 100µF 63V M RA-2 OA10706320
C314
C319 7300 nsp ELECT. 100µF M 16V RA-2 OA10701620
C319 7300F nsp ELECT. 100µF M 50V RA-2 OA10705020
C320 7300 nsp ELECT. 100µF M 16V RA-2 OA10701620
C320 7300F nsp ELECT. 100µF M 50V RA-2 OA10705020
C321 nsp ELECT. 100µF M 16V RA-2 OA10701620
C322 nsp ELECT. 100µF M 16V RA-2 OA10701620
CN01 nsp ELECT. 4.7µF M 50V RA-2 OA47505020
CN04 nsp ELECT. 4.7µF M 50V RA-2 OA47605020
CN05 nsp ELECT. 0.47µF M 50V RA-2 OA47405020
P104-CAPACITORS (COMMON)
HIGH DIELECTRIC CONSTANT
CER. CAPACITOR ±10% 50V :
C103 C104 C107 C203 C204 C303
C304
PLASTIC FILM CAPACITOR
±5% 50V : C107 C108 C207 C208
C307 C308
P104-RESISTORS
R137 RA02210760 TRIM. 220
Ω VERTI RA02210760
R138 RA02210760 TRIM. 220
Ω VERTI RA02210760
R139
NK05470010 METAL ERG1SJ470E 1W NK05470010
R146
R237 RA02210760 TRIM. 220
Ω VERTI RA02210760
R238 RA02210760 TRIM. 220
Ω VERTI RA02210760
R239
NK05470010 METAL ERG1SJ470E 1W NK05470010
R246
R337 RA02210760 TRIM. 220
Ω VERTI RA02210760
R338 RA02210760 TRIM. 220
Ω VERTI RA02210760
R339
NK05470010 METAL ERG1SJ470E 1W NK05470010
R346
RN99 HP00029230 VARISTOR
PTFM04BD222Q2N34B0 100C
HP00029230
P104-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : R101-R110 R115-R118
R123-R126 R135 R136 R149 R150
R153-R164 R167 R168 R201-210
R215-218 R223-R236 R249 R250
R253-R264 R267 R268 R301-R310
R315-R318 R323-R326 R349 R350
R353-R364 RR367 R368 RN01
RN02-RN23
P104-SEMICONDUCTORS
D101
nsp DIODE HD20002000
D108 1SS176 MA165 1SS254 30V 0.1A
D109
HD30391000 ZENER DIODE 3.9V HD30391000
D112
D113
nsp DIODE HD20027010
D116 HSS81TD 150V 150MA AXIAL
D201
nsp DIODE HD20002000
D208 1SS176 MA165 1SS254 30V 0.1A
D209
HD30391000 ZENER DIODE 3.9V HD30391000
D212
D213
nsp DIODE HD20027010
D216 HSS81TD 150V 150MA AXIAL
D301
nsp DIODE HD20002000
D308 1SS176 MA165 1SS254 30V 0.1A
D309
HD30391000 ZENER DIODE 3.9V HD30391000
D312
D313
nsp DIODE HD20027010
D316 HSS81TD 150V 150MA AXIAL
D821 HE20024290 DIODE D10XB SIP 10A HE20024290
K101 HN000012A0 IC SAP17P SAP17N O AND Y HN000012A0
K102 HN000012A0 IC SAP17P SAP17N O AND Y HN000012A0
K201 HN000012A0 IC SAP17P SAP17N O AND Y HN000012A0
K202 HN000012A0 IC SAP17P SAP17N O AND Y HN000012A0
K301 HN000012A0 IC SAP17P SAP17N O AND Y HN000012A0
K302 HN000012A0 IC SAP17P SAP17N O AND Y HN000012A0
Q101 HC10053090 IC NJM-2068-DD HC10053090
Q103 HT110482B0 TRS. 2SA1048 Y OR GR HT110482B0
Q104 HT110482B0 TRS. 2SA1048 Y OR GR HT110482B0
Q105 HT324582B0 TRS. 2SC2458 Y OR GR HT324582B0
Q106 HT324582B0 TRS. 2SC2458 Y OR GR HT324582B0
Q107
HT109702A0 TRS. 2SA970 GR OR BL HT109702A0
Q110
Q111
HT322402A0 TRS. 2SC2240 GR OR BL HT322402A0
Q114
Q115 HT111452A0 TRS. 2SA1145 O OR Y HT111452A0
Q116 HT111452A0 TRS. 2SA1145 O OR Y HT111452A0
Q117 HT327052A0 TRS. 2SC2705 O OR Y HT327052A0
Q118 HT327052A0 TRS. 2SC2705 O OR Y HT327052A0
Q119 HC20002080 IC SAP17N O AND Y HC20002080
