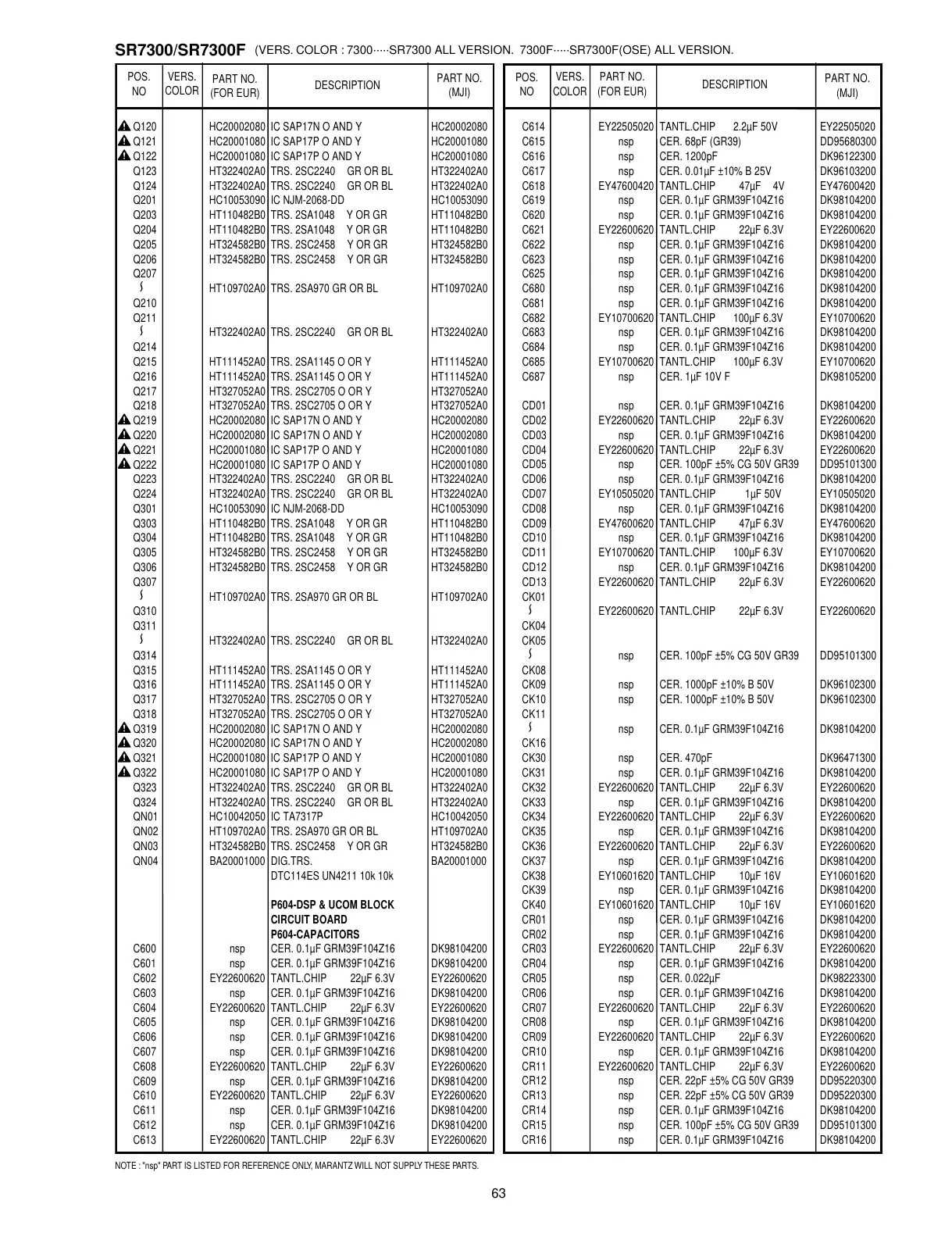

Marantz SR7300 - Page 47

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
63
SR7300/SR7300F
(VERS. COLOR : 7300·····SR7300 ALL VERSION. 7300F·····SR7300F(OSE) ALL VERSION.
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
Q120 HC20002080 IC SAP17N O AND Y HC20002080
Q121 HC20001080 IC SAP17P O AND Y HC20001080
Q122 HC20001080 IC SAP17P O AND Y HC20001080
Q123 HT322402A0 TRS. 2SC2240 GR OR BL HT322402A0
Q124 HT322402A0 TRS. 2SC2240 GR OR BL HT322402A0
Q201 HC10053090 IC NJM-2068-DD HC10053090
Q203 HT110482B0 TRS. 2SA1048 Y OR GR HT110482B0
Q204 HT110482B0 TRS. 2SA1048 Y OR GR HT110482B0
Q205 HT324582B0 TRS. 2SC2458 Y OR GR HT324582B0
Q206 HT324582B0 TRS. 2SC2458 Y OR GR HT324582B0
Q207
HT109702A0 TRS. 2SA970 GR OR BL HT109702A0
Q210
Q211
HT322402A0 TRS. 2SC2240 GR OR BL HT322402A0
Q214
Q215 HT111452A0 TRS. 2SA1145 O OR Y HT111452A0
Q216 HT111452A0 TRS. 2SA1145 O OR Y HT111452A0
Q217 HT327052A0 TRS. 2SC2705 O OR Y HT327052A0
Q218 HT327052A0 TRS. 2SC2705 O OR Y HT327052A0
Q219 HC20002080 IC SAP17N O AND Y HC20002080
Q220 HC20002080 IC SAP17N O AND Y HC20002080
Q221 HC20001080 IC SAP17P O AND Y HC20001080
Q222 HC20001080 IC SAP17P O AND Y HC20001080
Q223 HT322402A0 TRS. 2SC2240 GR OR BL HT322402A0
Q224 HT322402A0 TRS. 2SC2240 GR OR BL HT322402A0
Q301 HC10053090 IC NJM-2068-DD HC10053090
Q303 HT110482B0 TRS. 2SA1048 Y OR GR HT110482B0
Q304 HT110482B0 TRS. 2SA1048 Y OR GR HT110482B0
Q305 HT324582B0 TRS. 2SC2458 Y OR GR HT324582B0
Q306 HT324582B0 TRS. 2SC2458 Y OR GR HT324582B0
Q307
HT109702A0 TRS. 2SA970 GR OR BL HT109702A0
Q310
Q311
HT322402A0 TRS. 2SC2240 GR OR BL HT322402A0
Q314
Q315 HT111452A0 TRS. 2SA1145 O OR Y HT111452A0
Q316 HT111452A0 TRS. 2SA1145 O OR Y HT111452A0
Q317 HT327052A0 TRS. 2SC2705 O OR Y HT327052A0
Q318 HT327052A0 TRS. 2SC2705 O OR Y HT327052A0
Q319 HC20002080 IC SAP17N O AND Y HC20002080
Q320 HC20002080 IC SAP17N O AND Y HC20002080
Q321 HC20001080 IC SAP17P O AND Y HC20001080
Q322 HC20001080 IC SAP17P O AND Y HC20001080
Q323 HT322402A0 TRS. 2SC2240 GR OR BL HT322402A0
Q324 HT322402A0 TRS. 2SC2240 GR OR BL HT322402A0
QN01 HC10042050 IC TA7317P HC10042050
QN02 HT109702A0 TRS. 2SA970 GR OR BL HT109702A0
QN03 HT324582B0 TRS. 2SC2458 Y OR GR HT324582B0
QN04 BA20001000 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
P604-DSP & UCOM BLOCK
CIRCUIT BOARD
P604-CAPACITORS
C600 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C601 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C602 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
C603 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C604 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
C605 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C606 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C607 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C608 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
C609 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C610 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
C611 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C612 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C613 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
C614 EY22505020 TANTL.CHIP 2.2µF 50V EY22505020
C615 nsp CER. 68pF (GR39) DD95680300
C616 nsp CER. 1200pF DK96122300
C617 nsp CER. 0.01µF ±10% B 25V DK96103200
C618 EY47600420 TANTL.CHIP 47µF 4V EY47600420
C619 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C620 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C621 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
C622 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C623 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C625 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C680 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C681 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C682 EY10700620 TANTL.CHIP 100µF 6.3V EY10700620
C683 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C684 nsp CER. 0.1µF GRM39F104Z16 DK98104200
C685 EY10700620 TANTL.CHIP 100µF 6.3V EY10700620
C687 nsp CER. 1µF 10V F DK98105200
CD01 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CD02 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
CD03 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CD04 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
CD05 nsp CER. 100pF ±5% CG 50V GR39 DD95101300
CD06 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CD07 EY10505020 TANTL.CHIP 1µF 50V EY10505020
CD08 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CD09 EY47600620 TANTL.CHIP 47µF 6.3V EY47600620
CD10 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CD11 EY10700620 TANTL.CHIP 100µF 6.3V EY10700620
CD12 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CD13 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
CK01
EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
CK04
CK05
nsp CER. 100pF ±5% CG 50V GR39 DD95101300
CK08
CK09 nsp CER. 1000pF ±10% B 50V DK96102300
CK10 nsp CER. 1000pF ±10% B 50V DK96102300
CK11
nsp CER. 0.1µF GRM39F104Z16 DK98104200
CK16
CK30 nsp CER. 470pF DK96471300
CK31 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CK32 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
CK33 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CK34 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
CK35 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CK36 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
CK37 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CK38 EY10601620 TANTL.CHIP 10µF 16V EY10601620
CK39 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CK40 EY10601620 TANTL.CHIP 10µF 16V EY10601620
CR01 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CR02 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CR03 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
CR04 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CR05 nsp CER. 0.022µF DK98223300
CR06 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CR07 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
CR08 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CR09 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
CR10 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CR11 EY22600620 TANTL.CHIP 22µF 6.3V EY22600620
CR12 nsp CER. 22pF ±5% CG 50V GR39 DD95220300
CR13 nsp CER. 22pF ±5% CG 50V GR39 DD95220300
CR14 nsp CER. 0.1µF GRM39F104Z16 DK98104200
CR15 nsp CER. 100pF ±5% CG 50V GR39 DD95101300
CR16 nsp CER. 0.1µF GRM39F104Z16 DK98104200
