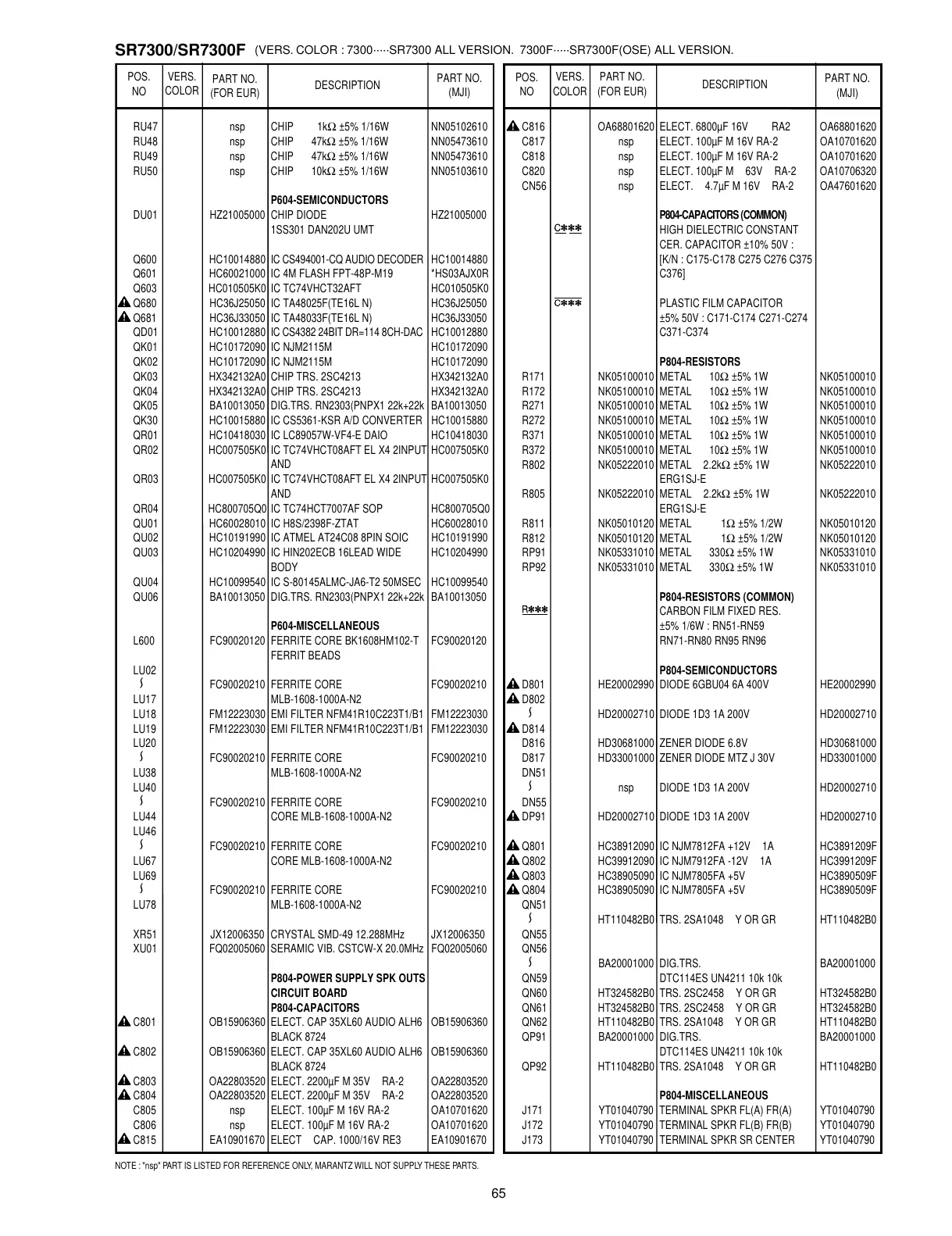

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
65
SR7300/SR7300F
(VERS. COLOR : 7300·····SR7300 ALL VERSION. 7300F·····SR7300F(OSE) ALL VERSION.
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
RU47 nsp CHIP 1k Ω ±5% 1/16W NN05102610
RU48 nsp CHIP 47k
Ω ±5% 1/16W NN05473610
RU49 nsp CHIP 47k
Ω ±5% 1/16W NN05473610
RU50 nsp CHIP 10k
Ω ±5% 1/16W NN05103610
P604-SEMICONDUCTORS
DU01 HZ21005000 CHIP DIODE
1SS301 DAN202U UMT
HZ21005000
Q600 HC10014880 IC CS494001-CQ AUDIO DECODER HC10014880
Q601 HC60021000 IC 4M FLASH FPT-48P-M19 *HS03AJX0R
Q603 HC010505K0 IC TC74VHCT32AFT HC010505K0
Q680 HC36J25050 IC TA48025F(TE16L N) HC36J25050
Q681 HC36J33050 IC TA48033F(TE16L N) HC36J33050
QD01 HC10012880 IC CS4382 24BIT DR=114 8CH-DAC HC10012880
QK01 HC10172090 IC NJM2115M HC10172090
QK02 HC10172090 IC NJM2115M HC10172090
QK03 HX342132A0 CHIP TRS. 2SC4213 HX342132A0
QK04 HX342132A0 CHIP TRS. 2SC4213 HX342132A0
QK05 BA10013050 DIG.TRS. RN2303(PNPX1 22k+22k BA10013050
QK30 HC10015880 IC CS5361-KSR A/D CONVERTER HC10015880
QR01 HC10418030 IC LC89057W-VF4-E DAIO HC10418030
QR02 HC007505K0 IC TC74VHCT08AFT EL X4 2INPUT
AND
HC007505K0
QR03 HC007505K0 IC TC74VHCT08AFT EL X4 2INPUT
AND
HC007505K0
QR04 HC800705Q0 IC TC74HCT7007AF SOP HC800705Q0
QU01 HC60028010 IC H8S/2398F-ZTAT HC60028010
QU02 HC10191990 IC ATMEL AT24C08 8PIN SOIC HC10191990
QU03 HC10204990 IC HIN202ECB 16LEAD WIDE
BODY
HC10204990
QU04 HC10099540 IC S-80145ALMC-JA6-T2 50MSEC HC10099540
QU06 BA10013050 DIG.TRS. RN2303(PNPX1 22k+22k BA10013050
P604-MISCELLANEOUS
L600 FC90020120 FERRITE CORE BK1608HM102-T
FERRIT BEADS
FC90020120
LU02
FC90020210 FERRITE CORE FC90020210
LU17 MLB-1608-1000A-N2
LU18 FM12223030 EMI FILTER NFM41R10C223T1/B1 FM12223030
LU19 FM12223030 EMI FILTER NFM41R10C223T1/B1 FM12223030
LU20
FC90020210 FERRITE CORE FC90020210
LU38 MLB-1608-1000A-N2
LU40
FC90020210 FERRITE CORE FC90020210
LU44 CORE MLB-1608-1000A-N2
LU46
FC90020210 FERRITE CORE FC90020210
LU67 CORE MLB-1608-1000A-N2
LU69
FC90020210 FERRITE CORE FC90020210
LU78 MLB-1608-1000A-N2
XR51 JX12006350 CRYSTAL SMD-49 12.288MHz JX12006350
XU01 FQ02005060 SERAMIC VIB. CSTCW-X 20.0MHz FQ02005060
P804-POWER SUPPLY SPK OUTS
CIRCUIT BOARD
P804-CAPACITORS
C801 OB15906360 ELECT. CAP 35XL60 AUDIO ALH6
BLACK 8724
OB15906360
C802 OB15906360 ELECT. CAP 35XL60 AUDIO ALH6
BLACK 8724
OB15906360
C803 OA22803520 ELECT. 2200µF M 35V RA-2 OA22803520
C804 OA22803520 ELECT. 2200µF M 35V RA-2 OA22803520
C805 nsp ELECT. 100µF M 16V RA-2 OA10701620
C806 nsp ELECT. 100µF M 16V RA-2 OA10701620
C815 EA10901670 ELECT CAP. 1000/16V RE3 EA10901670
C816 OA68801620 ELECT. 6800µF 16V RA2 OA68801620
C817 nsp ELECT. 100µF M 16V RA-2 OA10701620
C818 nsp ELECT. 100µF M 16V RA-2 OA10701620
C820 nsp ELECT. 100µF M 63V RA-2 OA10706320
CN56 nsp ELECT. 4.7µF M 16V RA-2 OA47601620
P804-CAPACITORS (COMMON)
HIGH DIELECTRIC CONSTANT
CER. CAPACITOR ±10% 50V :
[K/N : C175-C178 C275 C276 C375
C376]
PLASTIC FILM CAPACITOR
±5% 50V : C171-C174 C271-C274
C371-C374
P804-RESISTORS
R171 NK05100010 METAL 10
Ω ±5% 1W NK05100010
R172 NK05100010 METAL 10
Ω ±5% 1W NK05100010
R271 NK05100010 METAL 10
Ω ±5% 1W NK05100010
R272 NK05100010 METAL 10
Ω ±5% 1W NK05100010
R371 NK05100010 METAL 10
Ω ±5% 1W NK05100010
R372 NK05100010 METAL 10
Ω ±5% 1W NK05100010
R802 NK05222010 METAL 2.2k
Ω ±5% 1W
ERG1SJ-E
NK05222010
R805 NK05222010 METAL 2.2k
Ω ±5% 1W
ERG1SJ-E
NK05222010
R811 NK05010120 METAL 1
Ω ±5% 1/2W NK05010120
R812 NK05010120 METAL 1
Ω ±5% 1/2W NK05010120
RP91 NK05331010 METAL 330
Ω ±5% 1W NK05331010
RP92 NK05331010 METAL 330
Ω ±5% 1W NK05331010
P804-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : RN51-RN59
RN71-RN80 RN95 RN96
P804-SEMICONDUCTORS
D801 HE20002990 DIODE 6GBU04 6A 400V HE20002990
D802
HD20002710 DIODE 1D3 1A 200V HD20002710
D814
D816 HD30681000 ZENER DIODE 6.8V HD30681000
D817 HD33001000 ZENER DIODE MTZ J 30V HD33001000
DN51
nsp DIODE 1D3 1A 200V HD20002710
DN55
DP91 HD20002710 DIODE 1D3 1A 200V HD20002710
Q801 HC38912090 IC NJM7812FA +12V 1A HC3891209F
Q802 HC39912090 IC NJM7912FA -12V 1A HC3991209F
Q803 HC38905090 IC NJM7805FA +5V HC3890509F
Q804 HC38905090 IC NJM7805FA +5V HC3890509F
QN51
HT110482B0 TRS. 2SA1048 Y OR GR HT110482B0
QN55
QN56
BA20001000 DIG.TRS. BA20001000
QN59 DTC114ES UN4211 10k 10k
QN60 HT324582B0 TRS. 2SC2458 Y OR GR HT324582B0
QN61 HT324582B0 TRS. 2SC2458 Y OR GR HT324582B0
QN62 HT110482B0 TRS. 2SA1048 Y OR GR HT110482B0
QP91 BA20001000 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QP92 HT110482B0 TRS. 2SA1048 Y OR GR HT110482B0
P804-MISCELLANEOUS
J171 YT01040790 TERMINAL SPKR FL(A) FR(A) YT01040790
J172 YT01040790 TERMINAL SPKR FL(B) FR(B) YT01040790
J173 YT01040790 TERMINAL SPKR SR CENTER YT01040790
